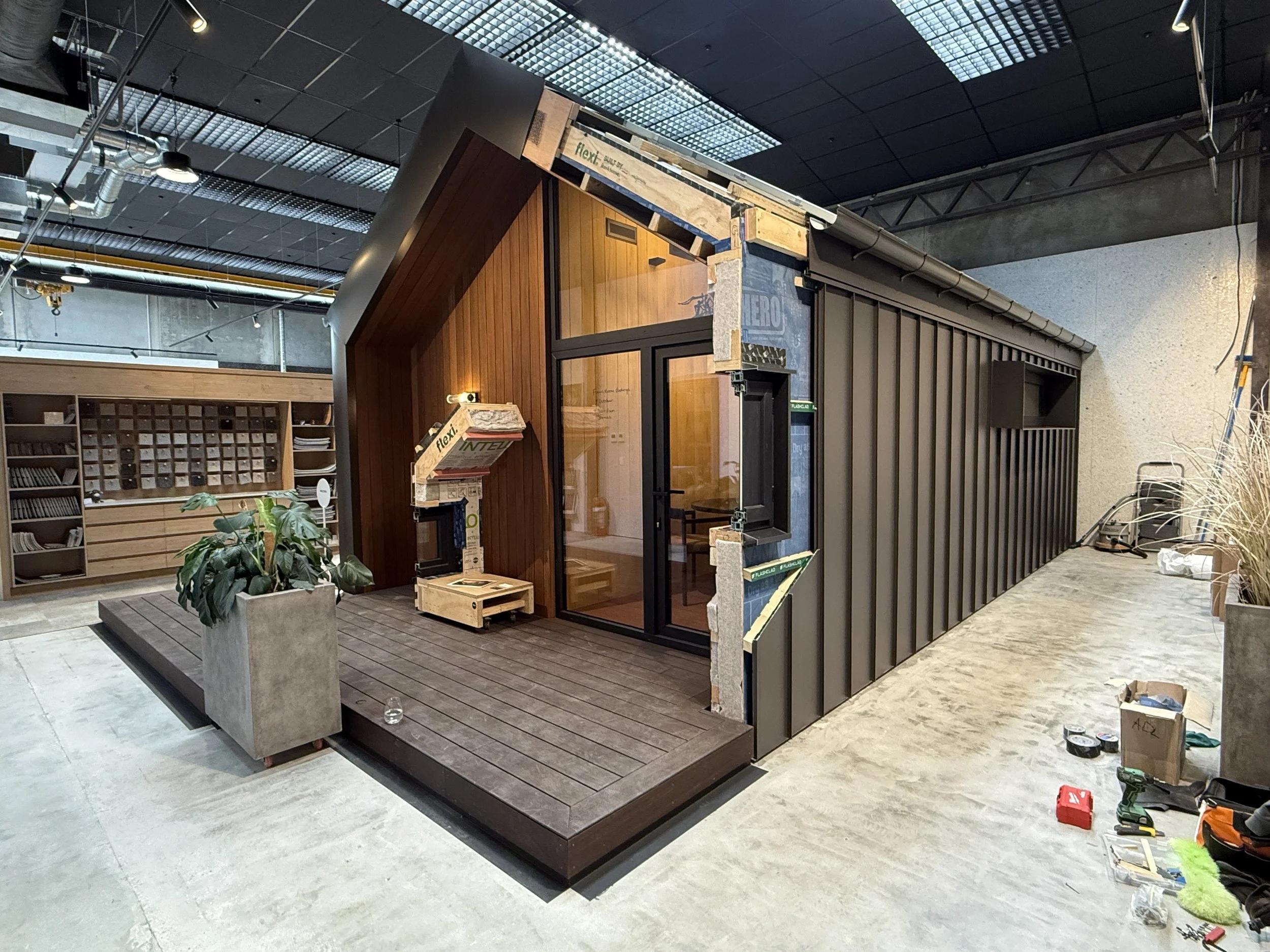

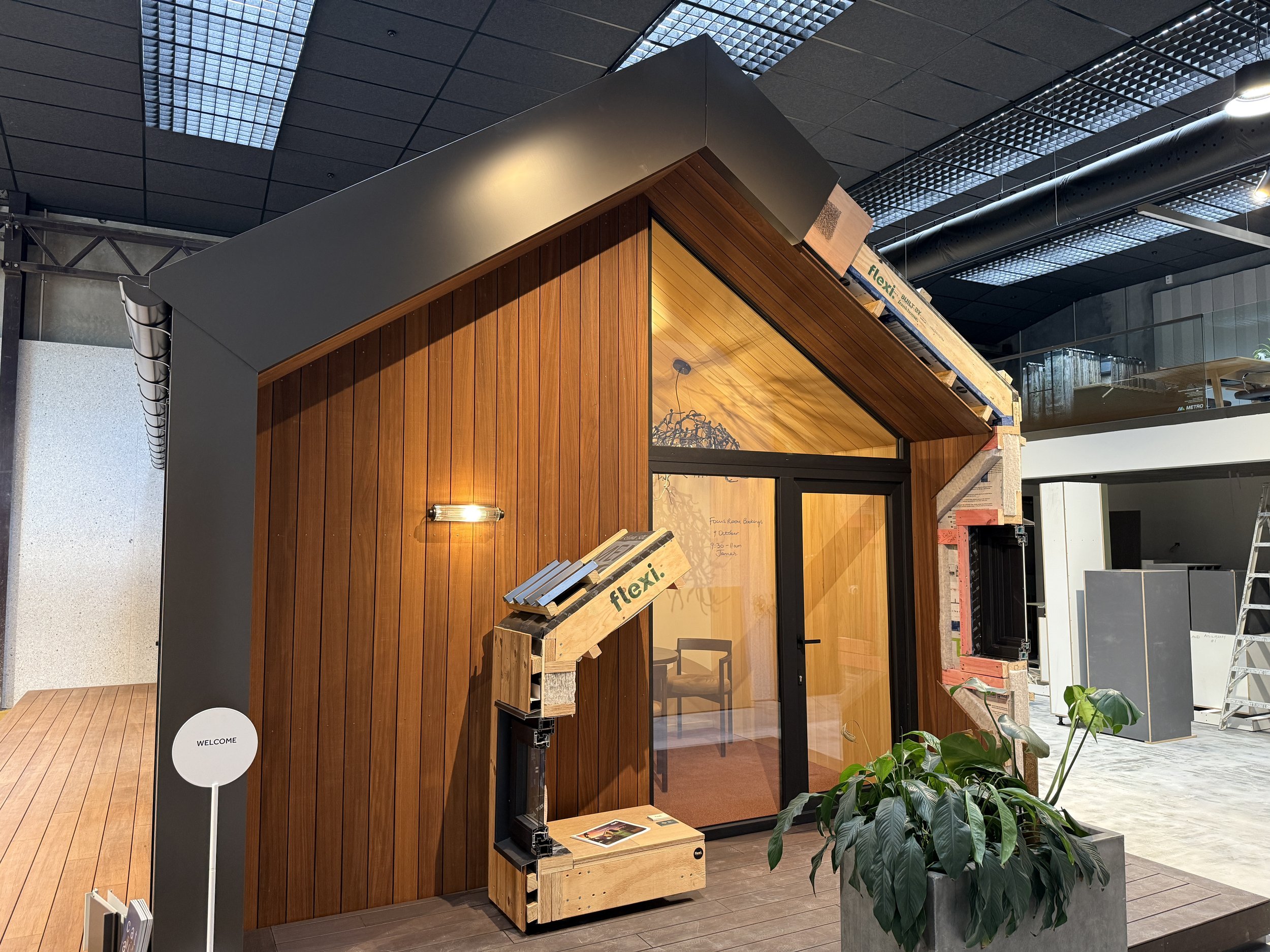

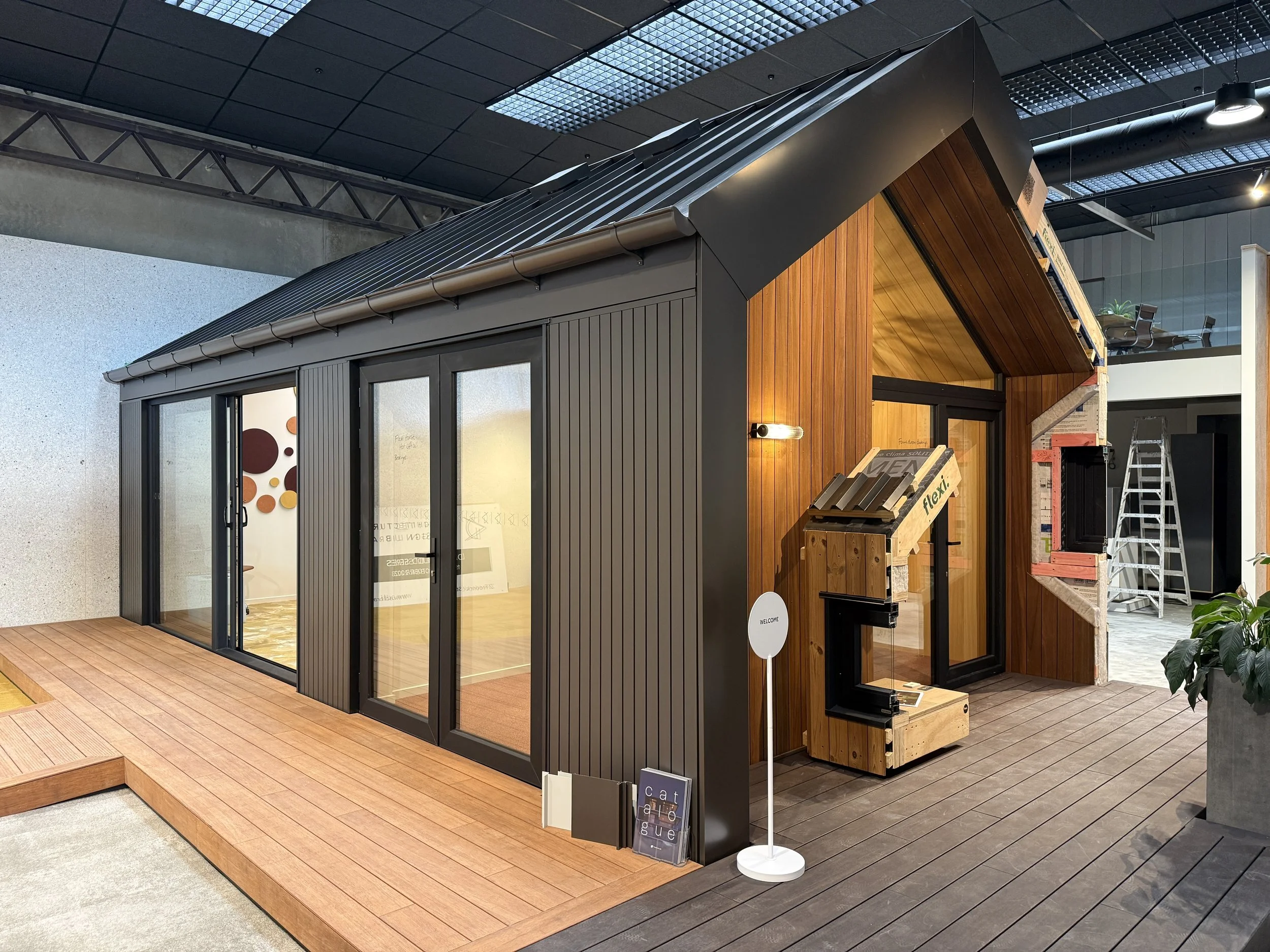

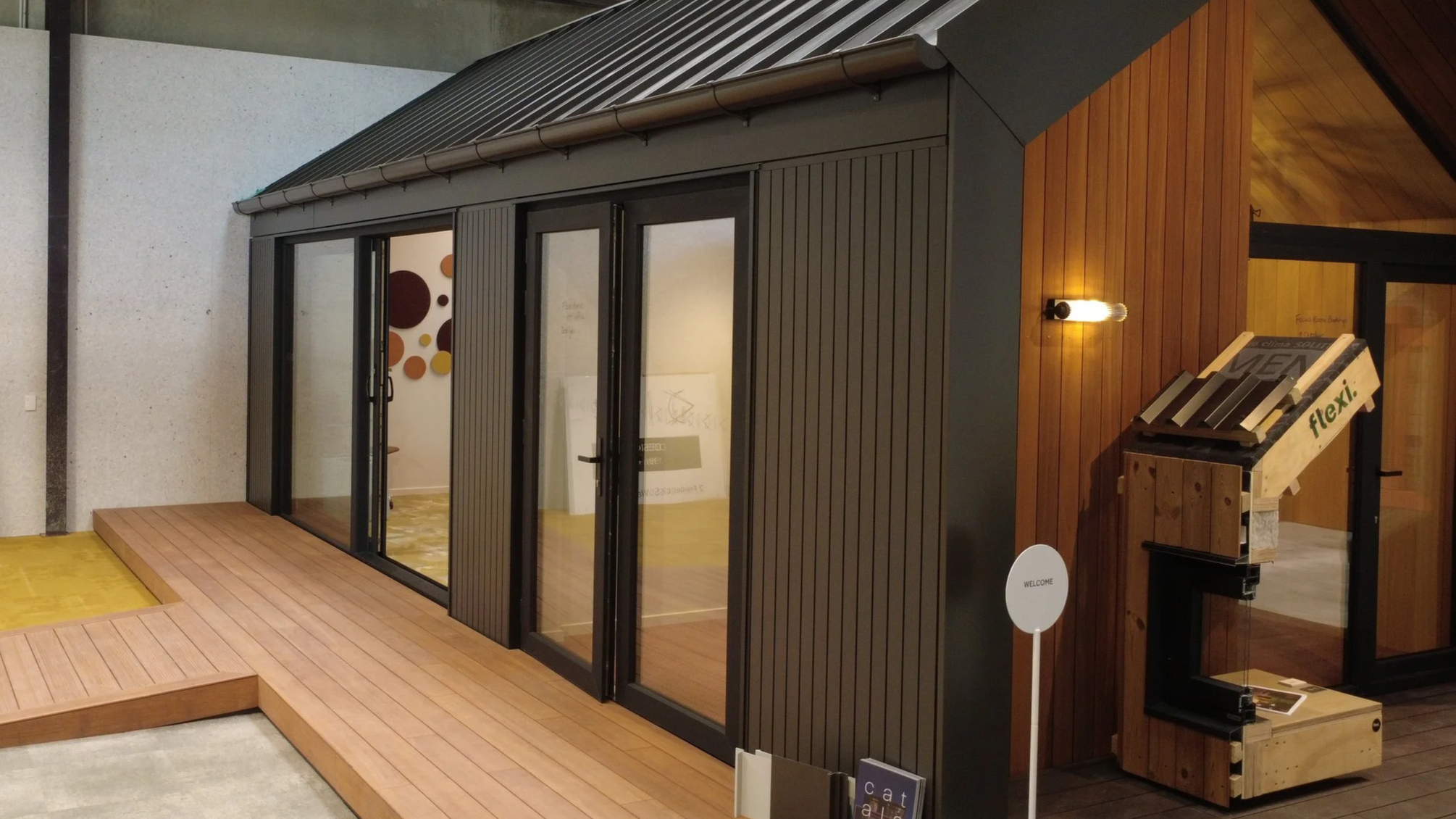

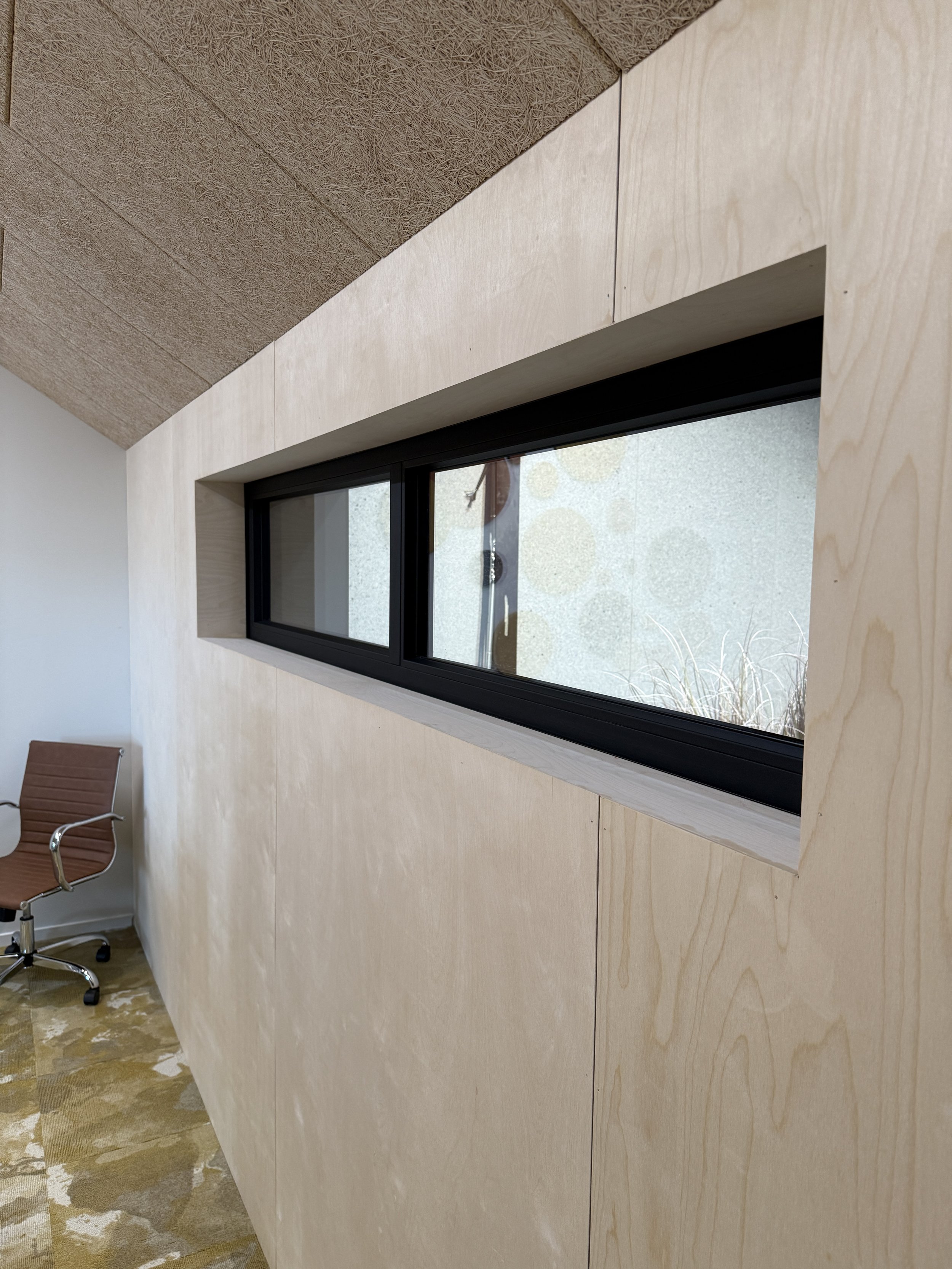

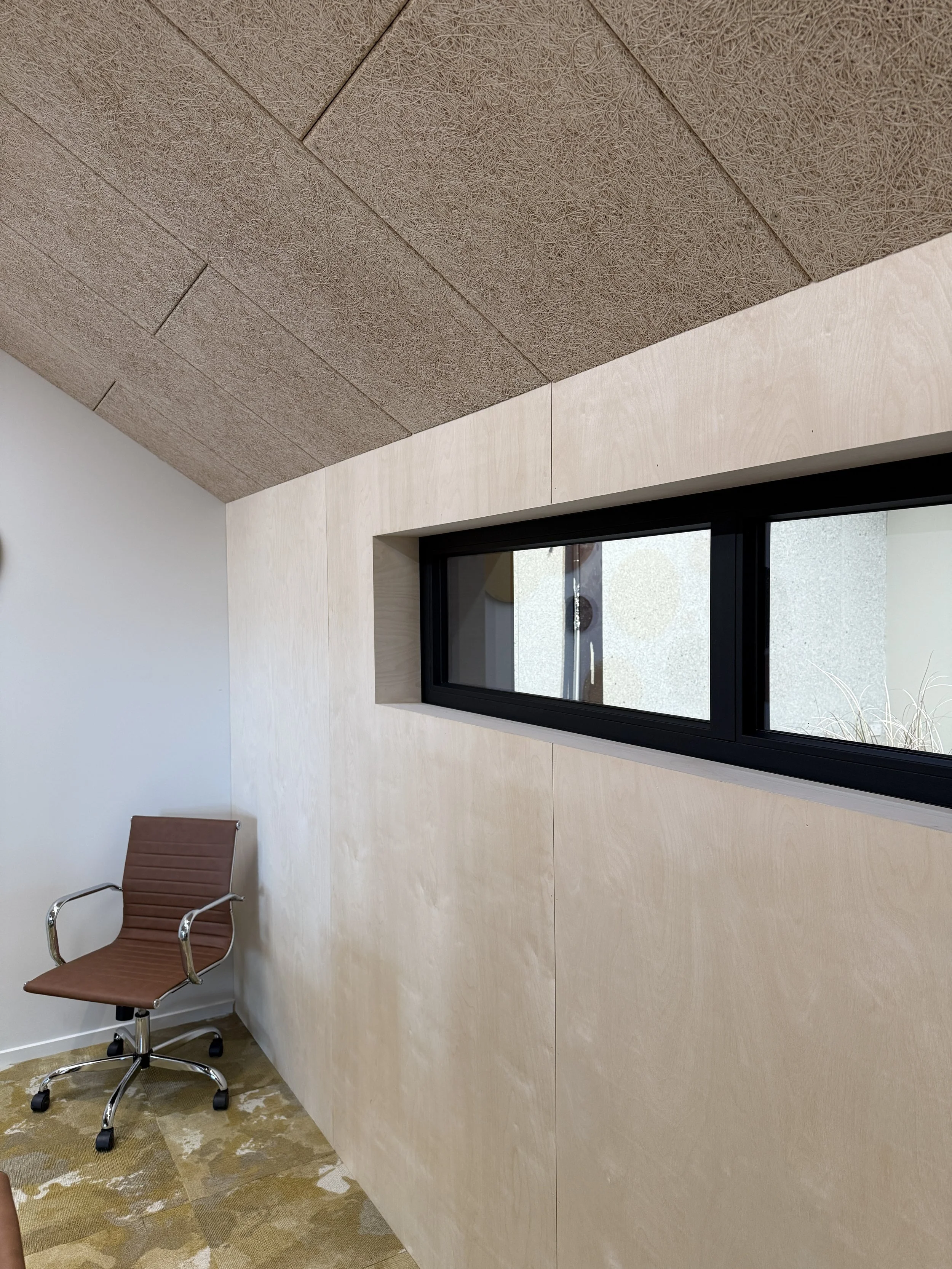

A collaborative showroom display at the Architecture and Design Library in Wanaka. Viewings welcome. Please get in touch.
ADL Showroom

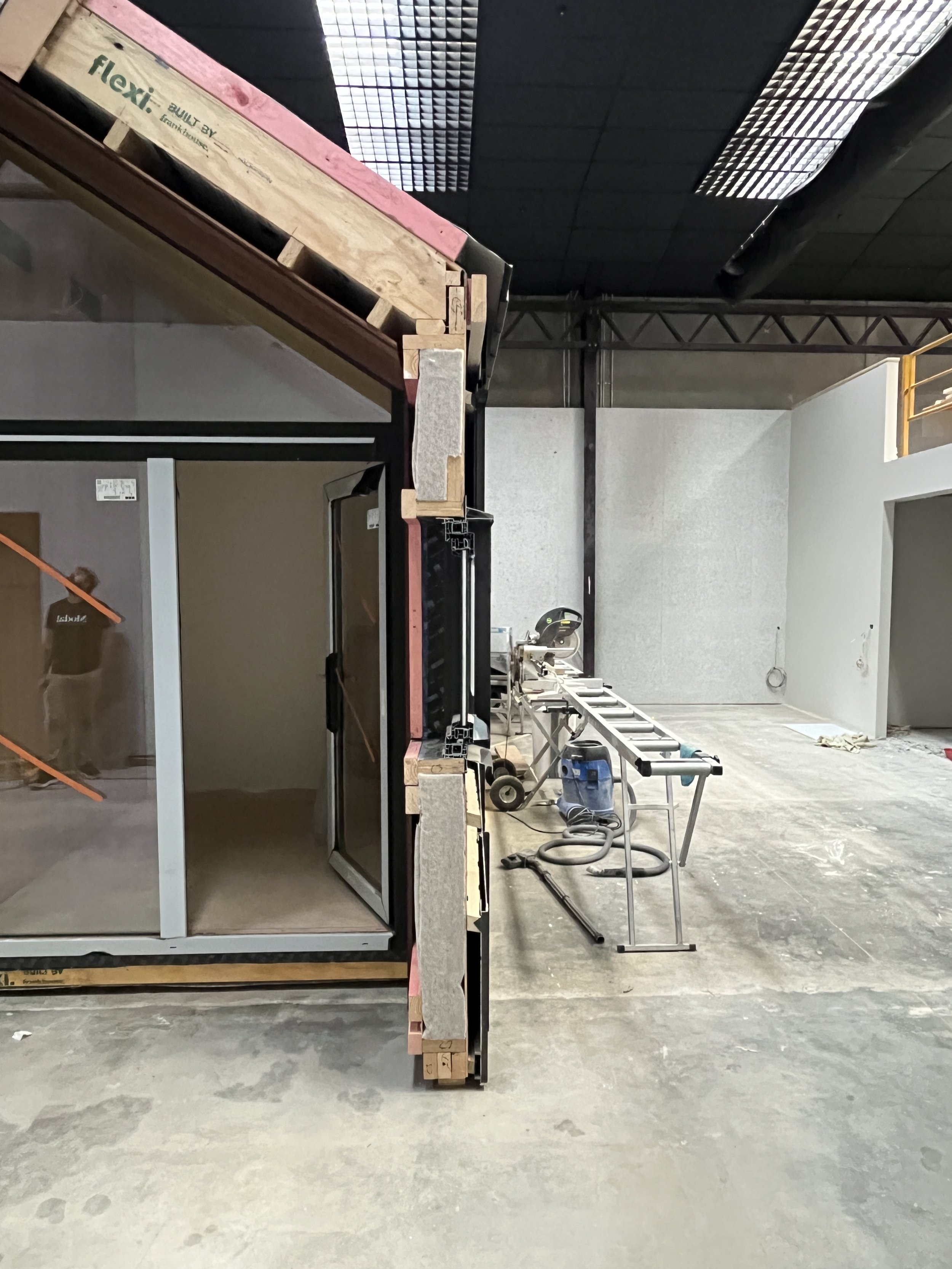

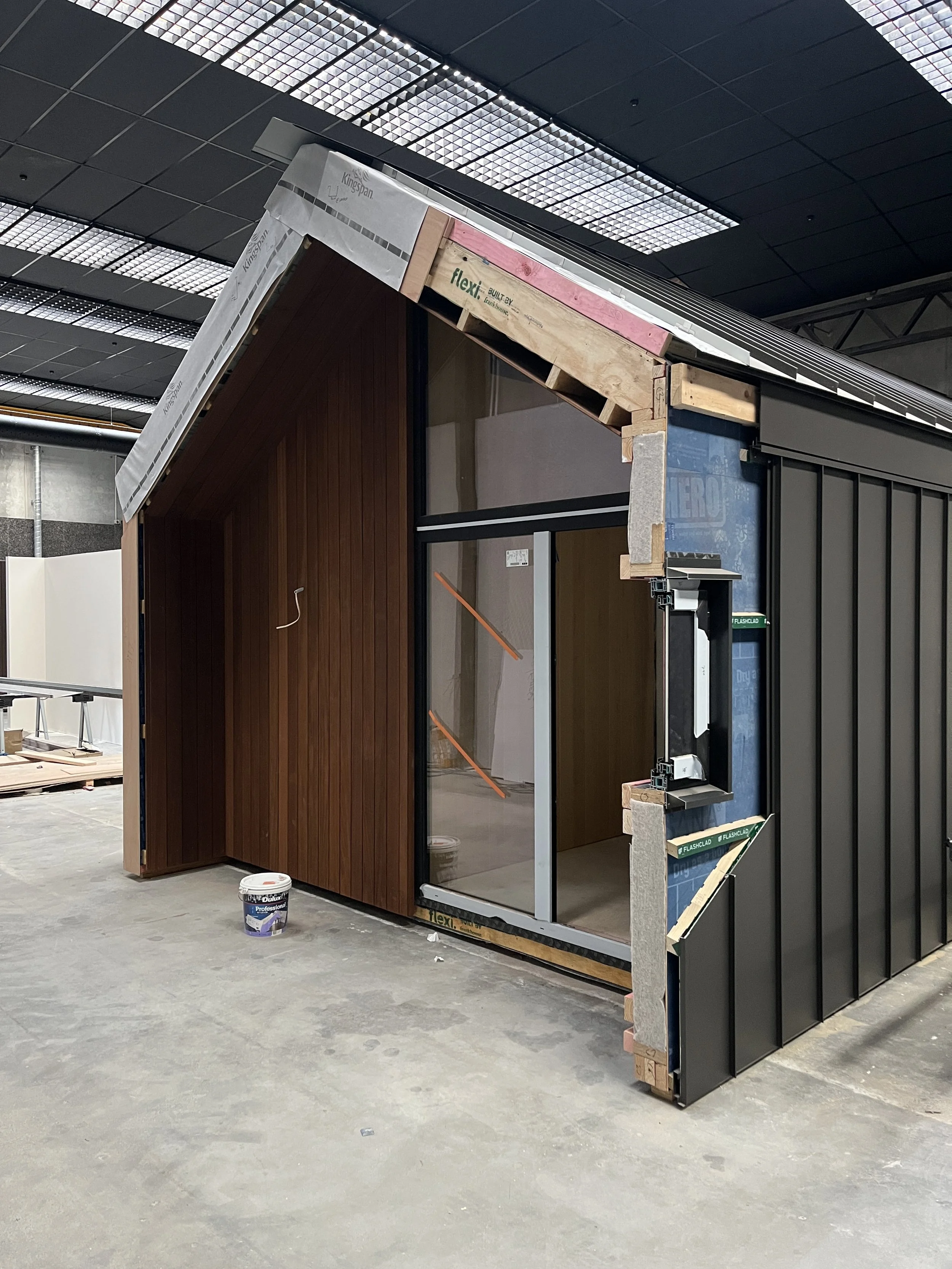

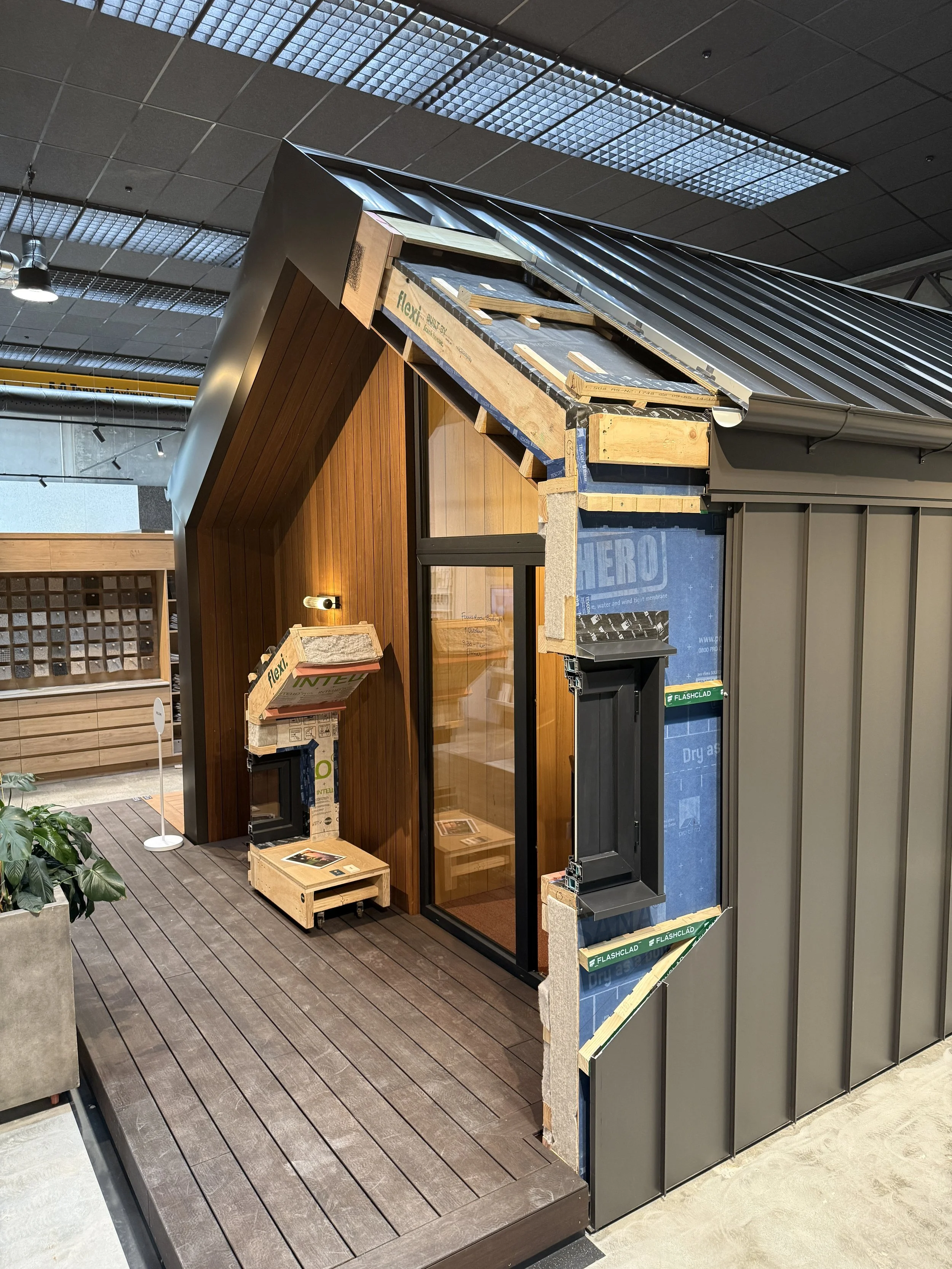

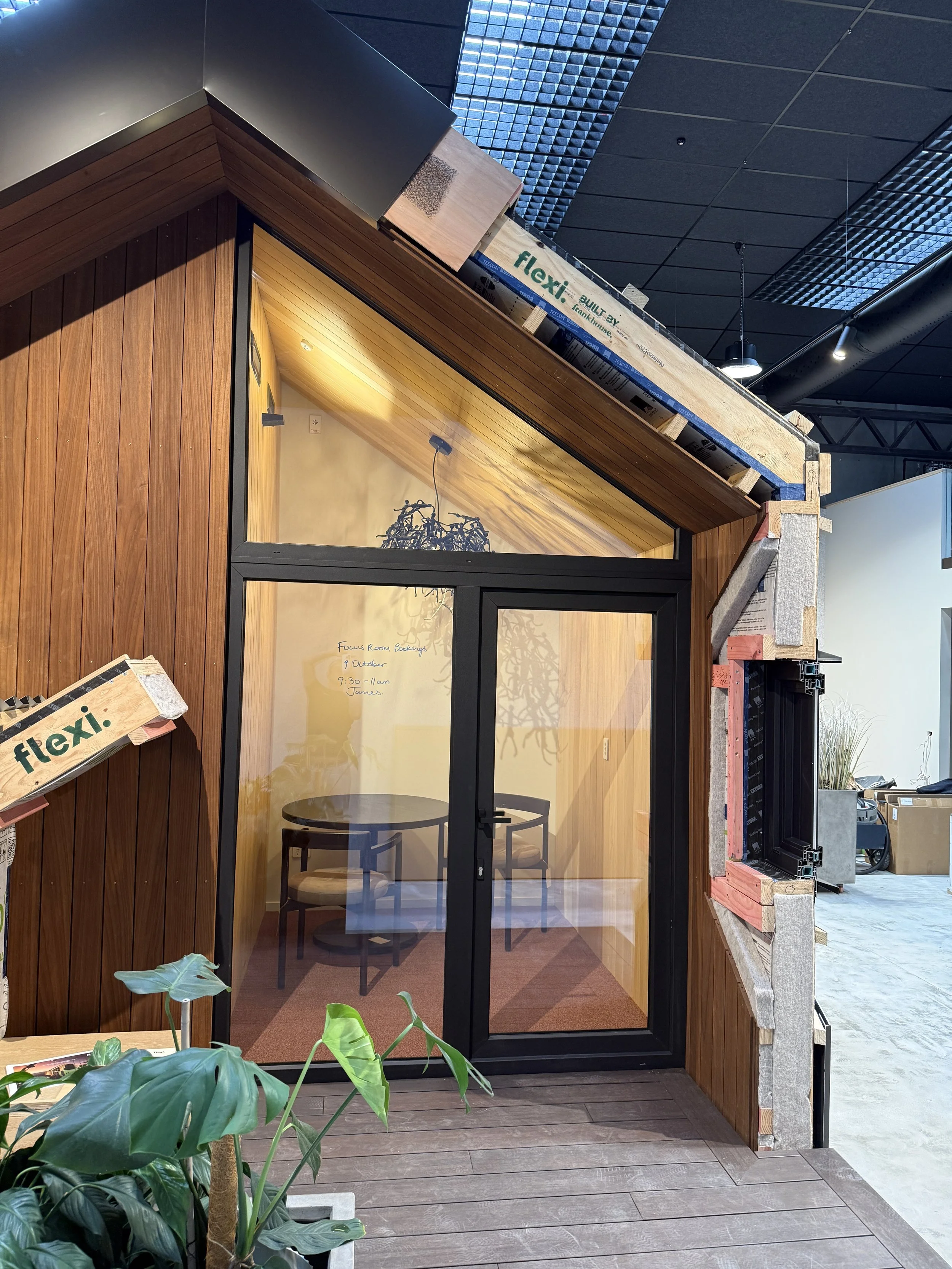

Discover what lies beneath

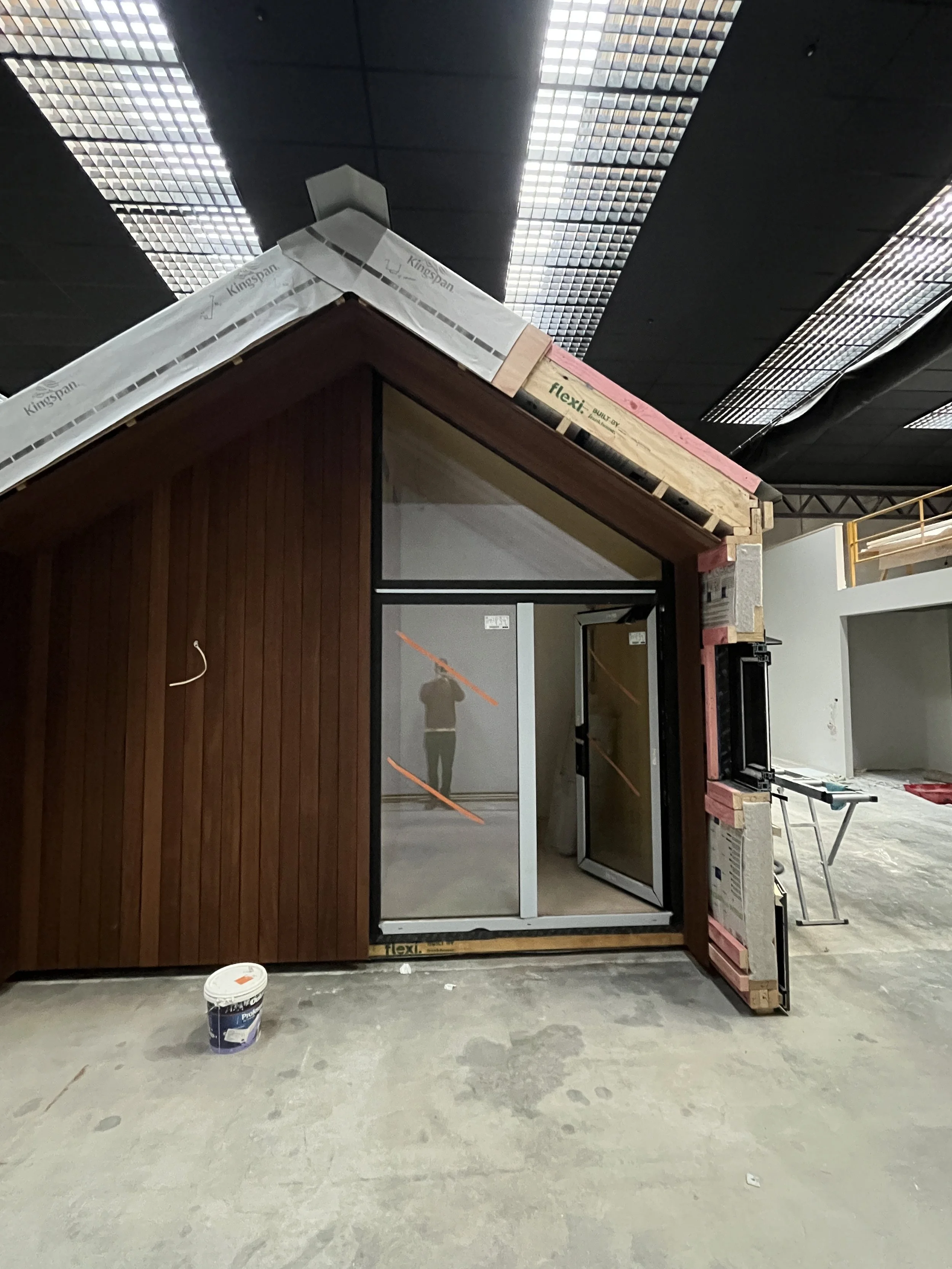

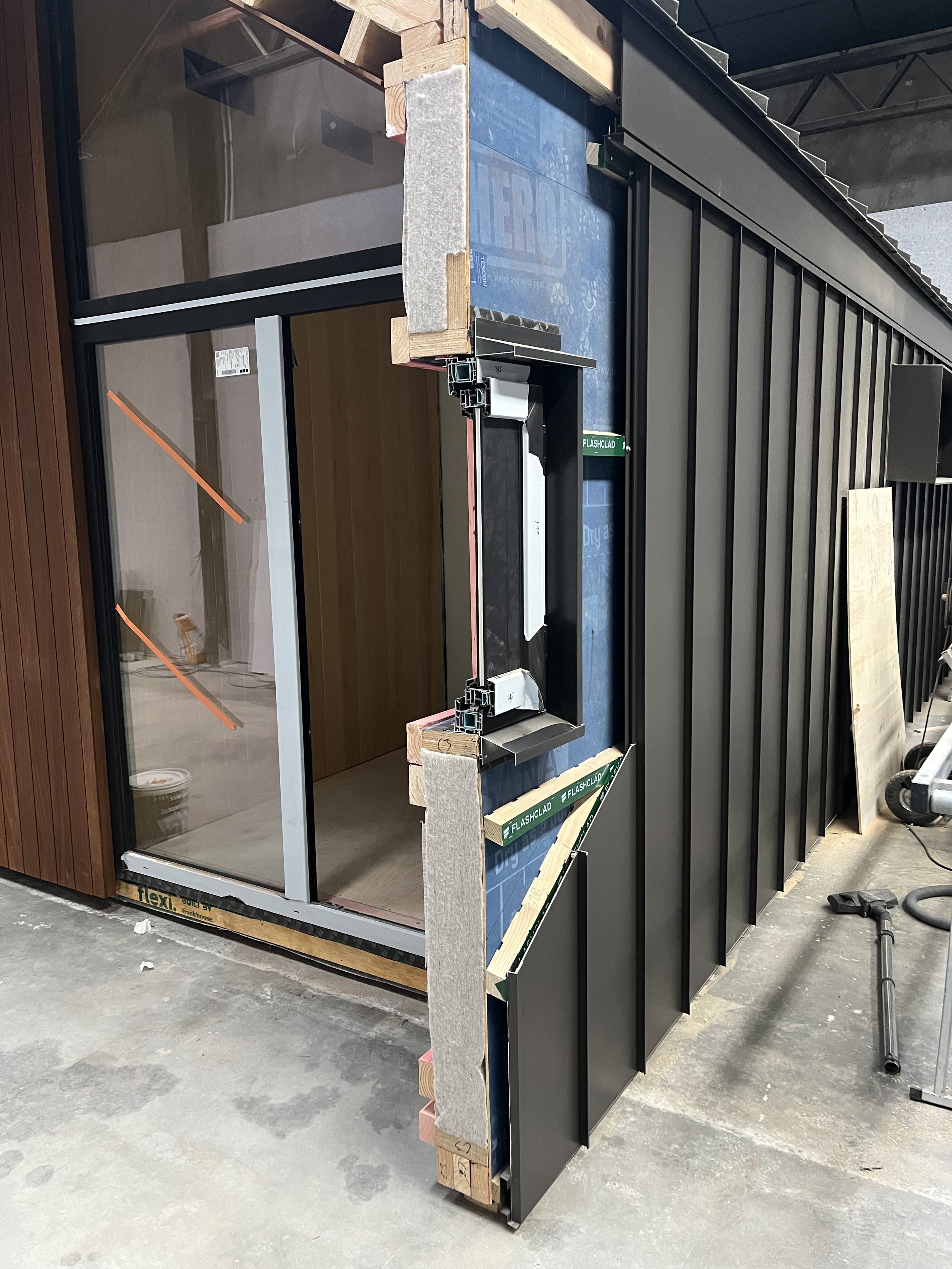

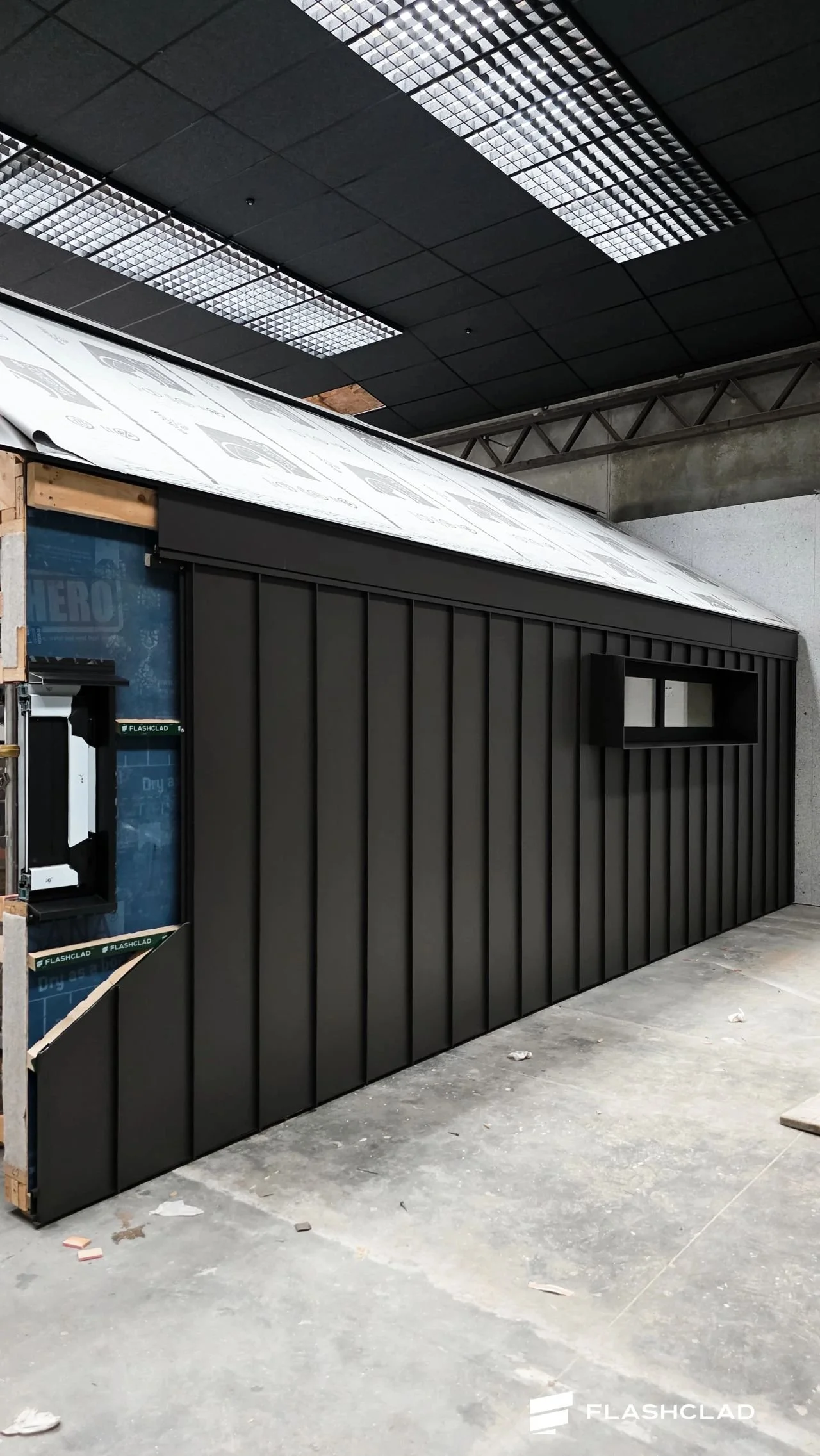

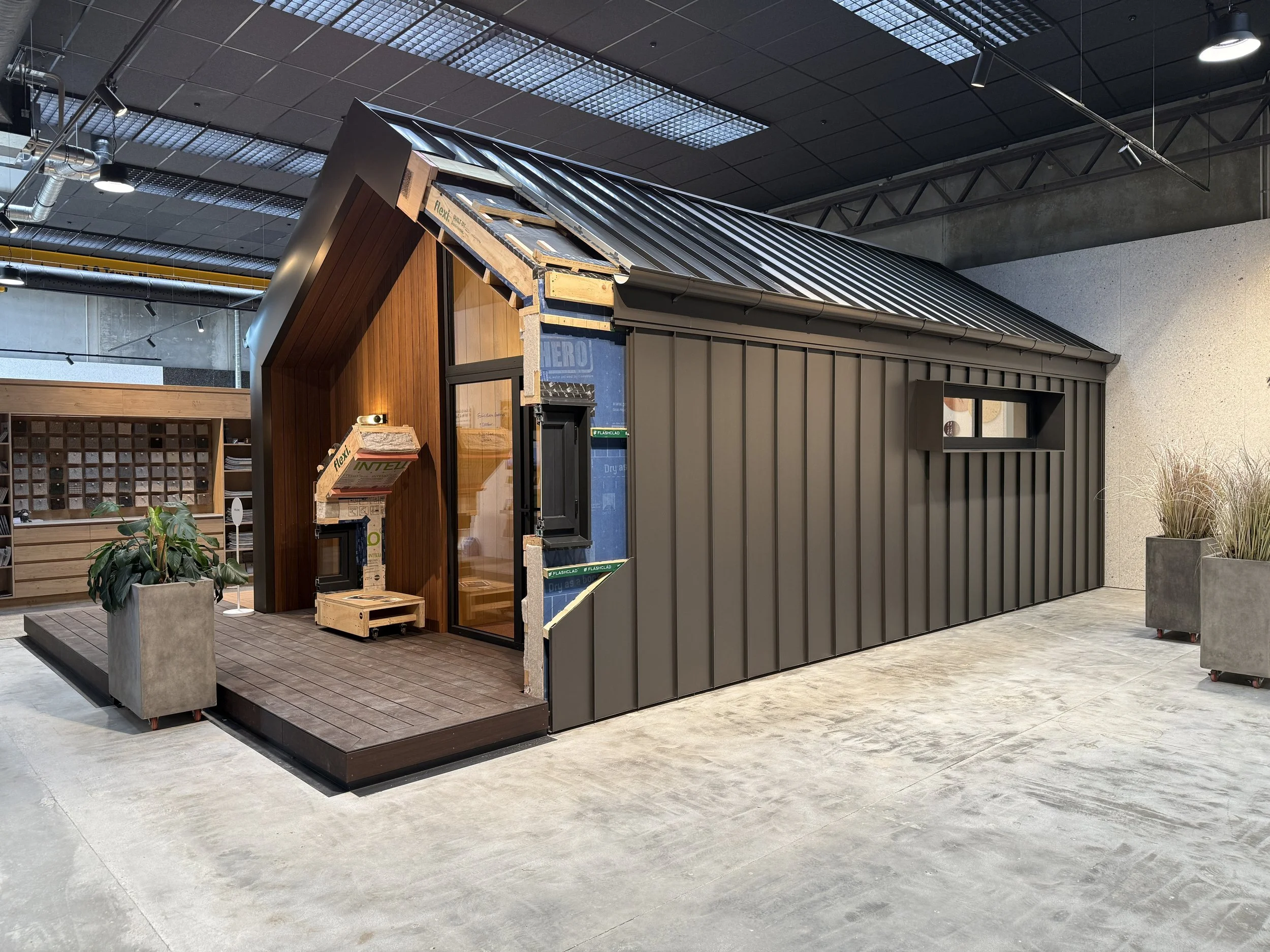

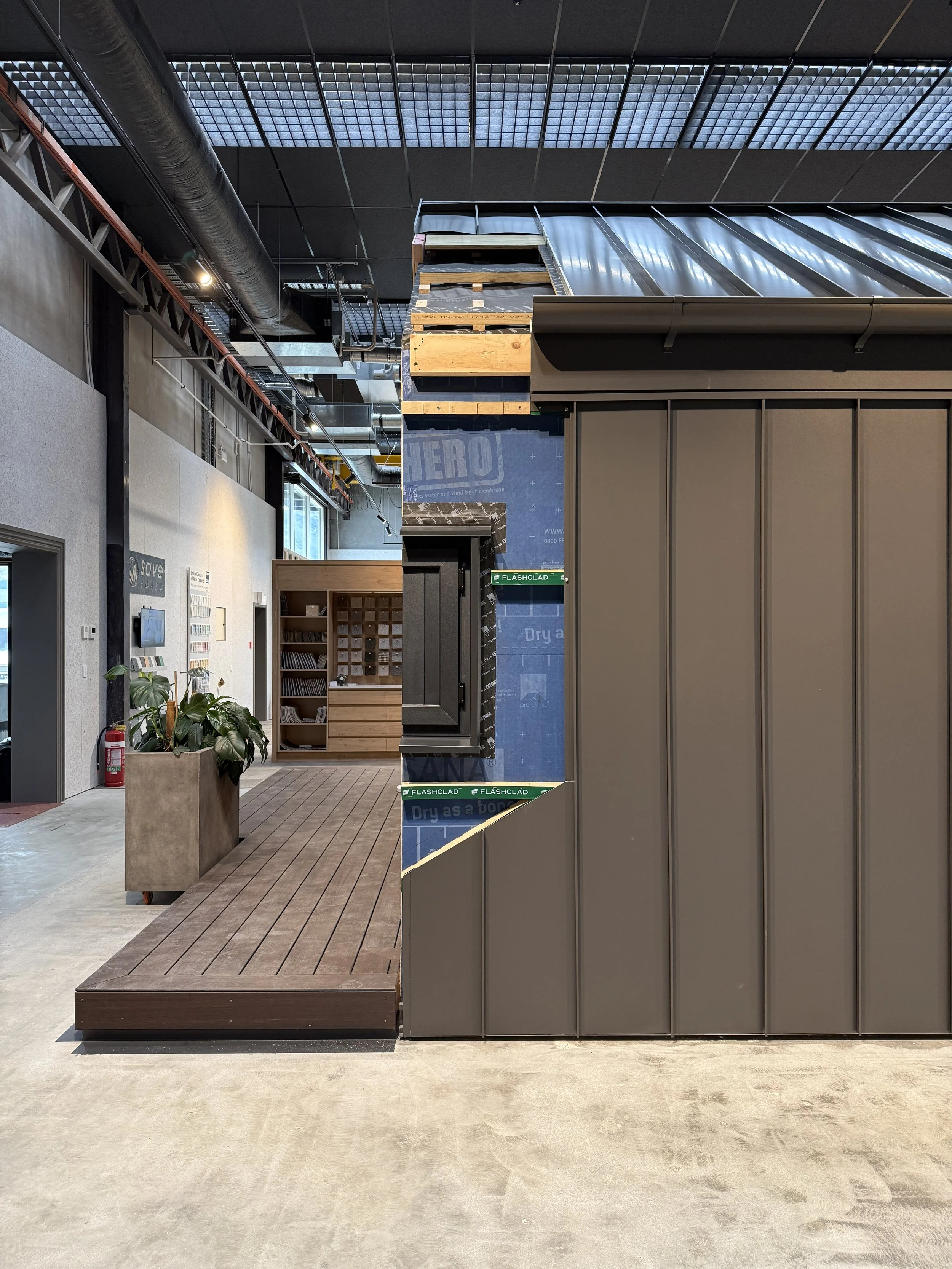

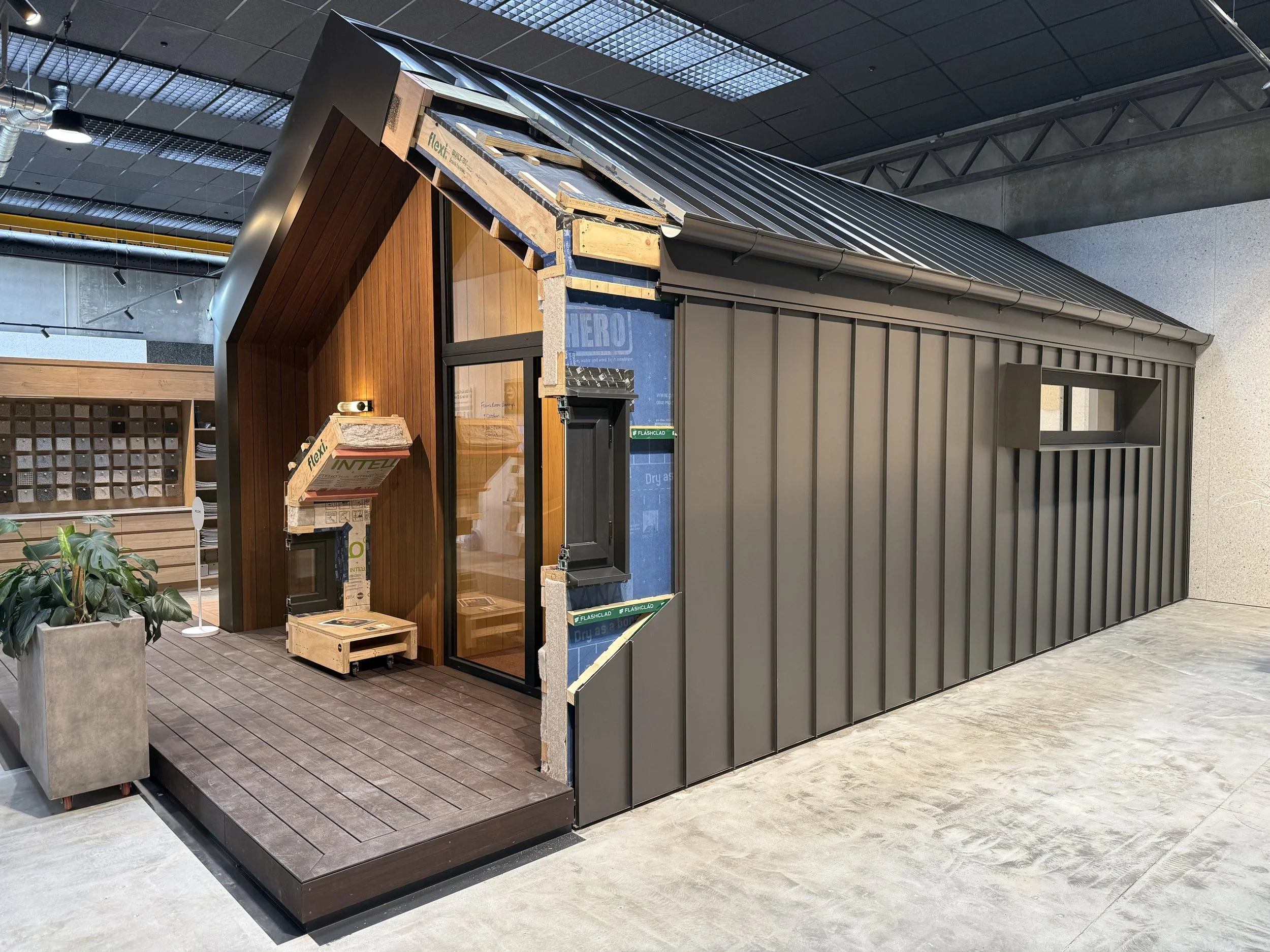

See a full cross section of a high-performance envelope and the products and materials that enable it.

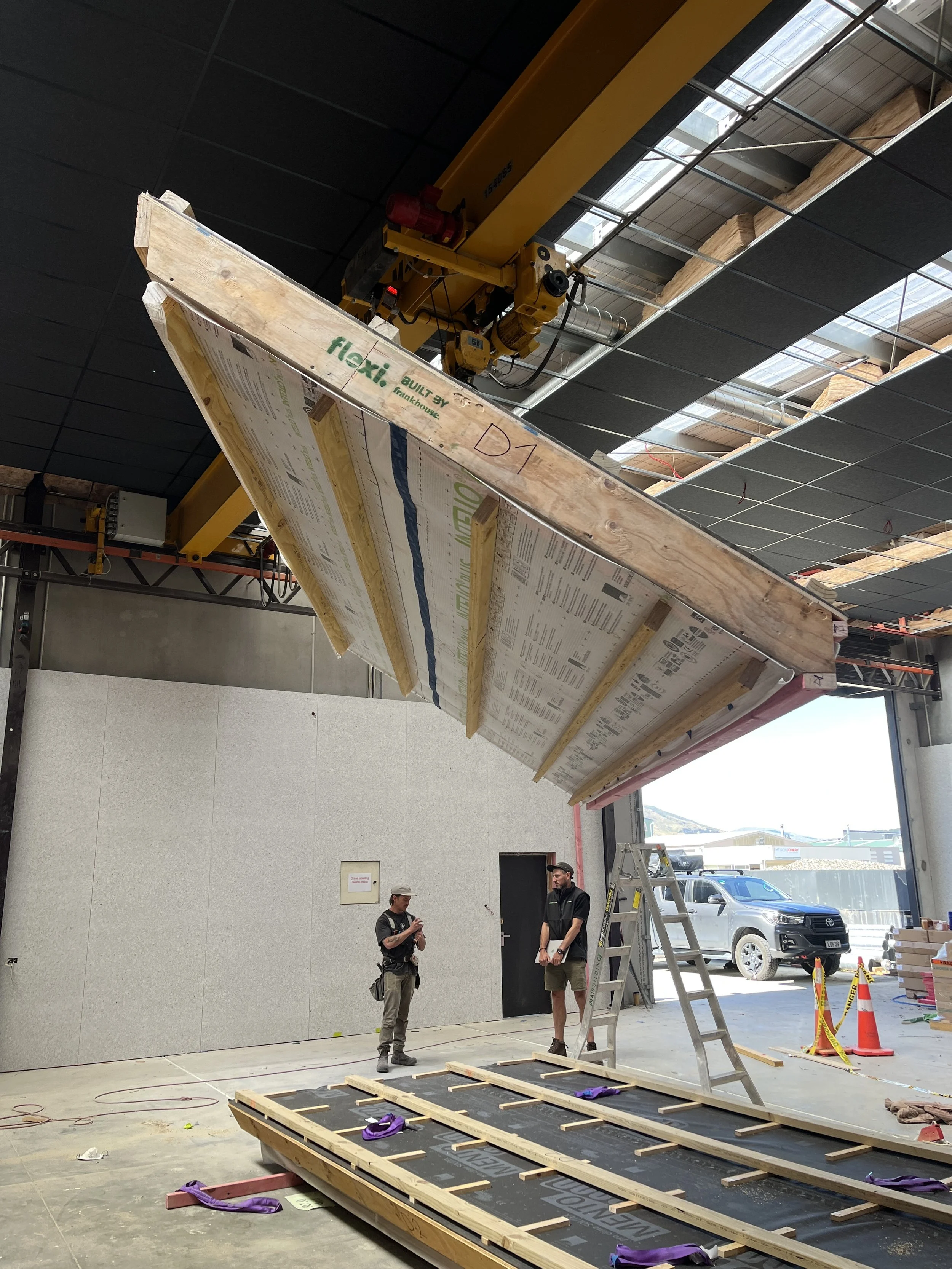

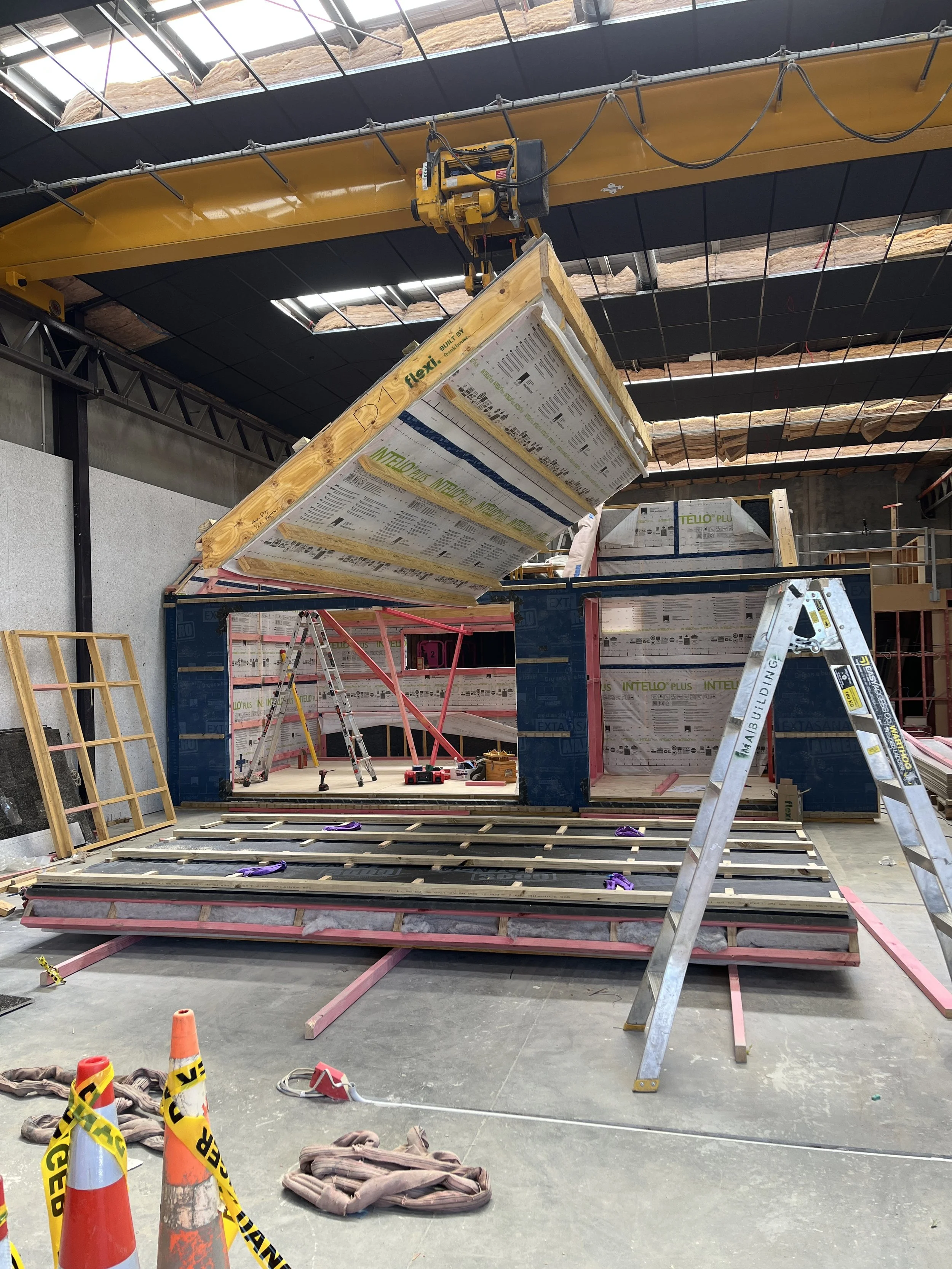

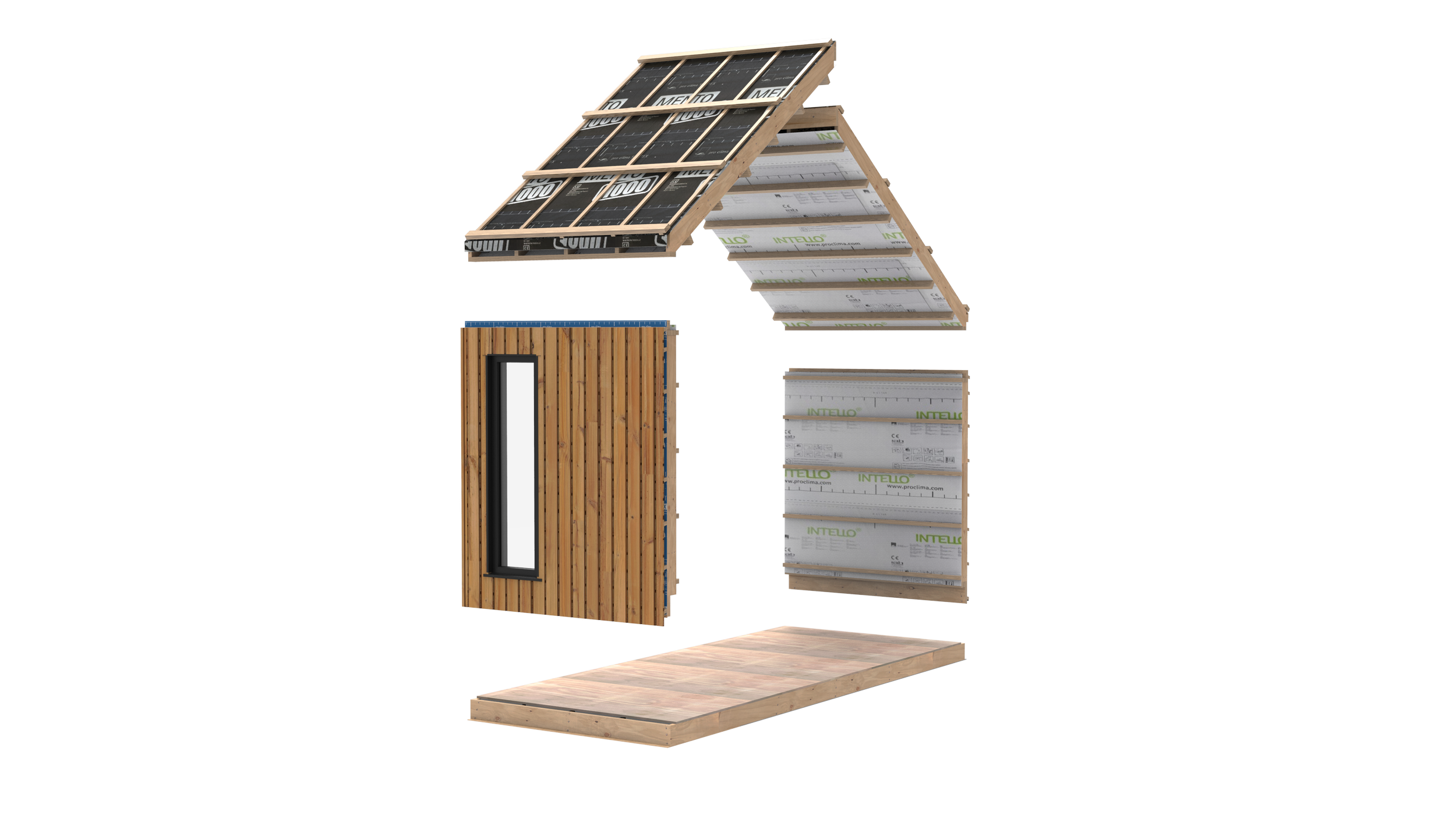

An offsite, precision manufactured proprietary panel system, the Flexi Envelope consists of Floor, Wall and Roof panels in any shape or size.
Flexi Panel System
Brand Collaboration
The following products and materials have been specifically selected to produce Flexi’s high-performance envelope. Learn why we use these materials and why you should too.
Panel System
Offsite Construction System for Architects & Builders
-
Flexi Panel System - High-Performance Envelope
Manufacturing Partner

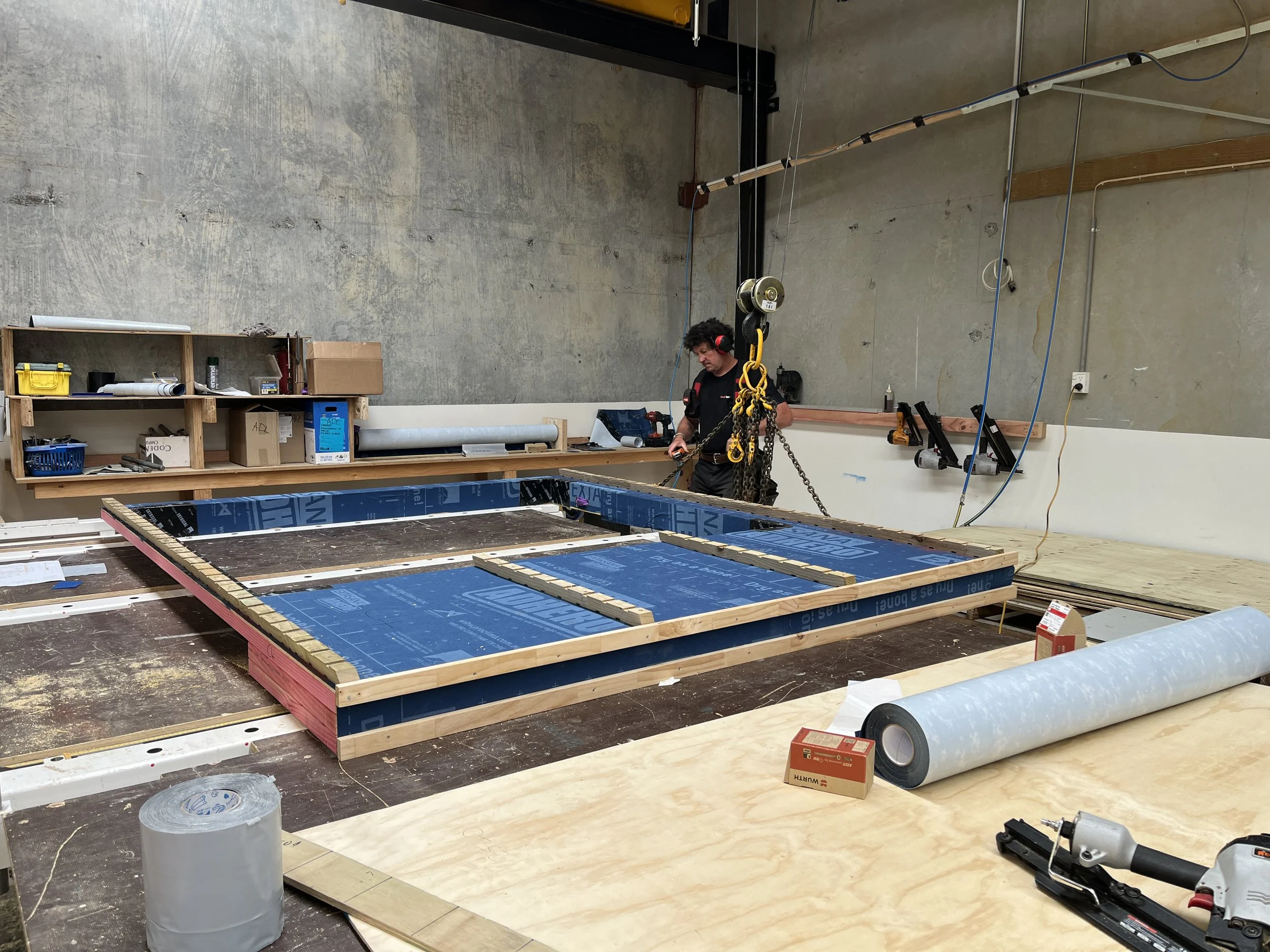

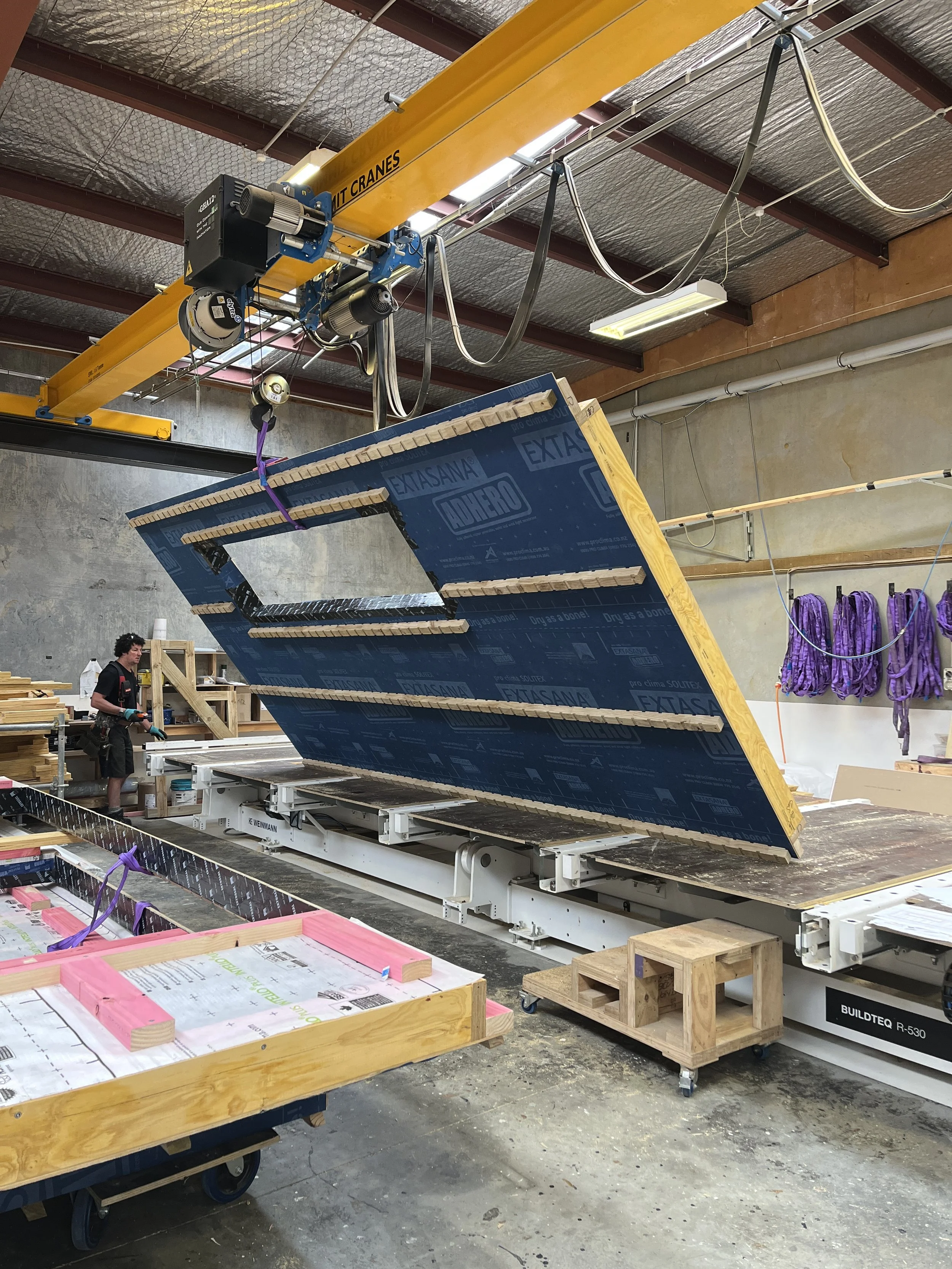

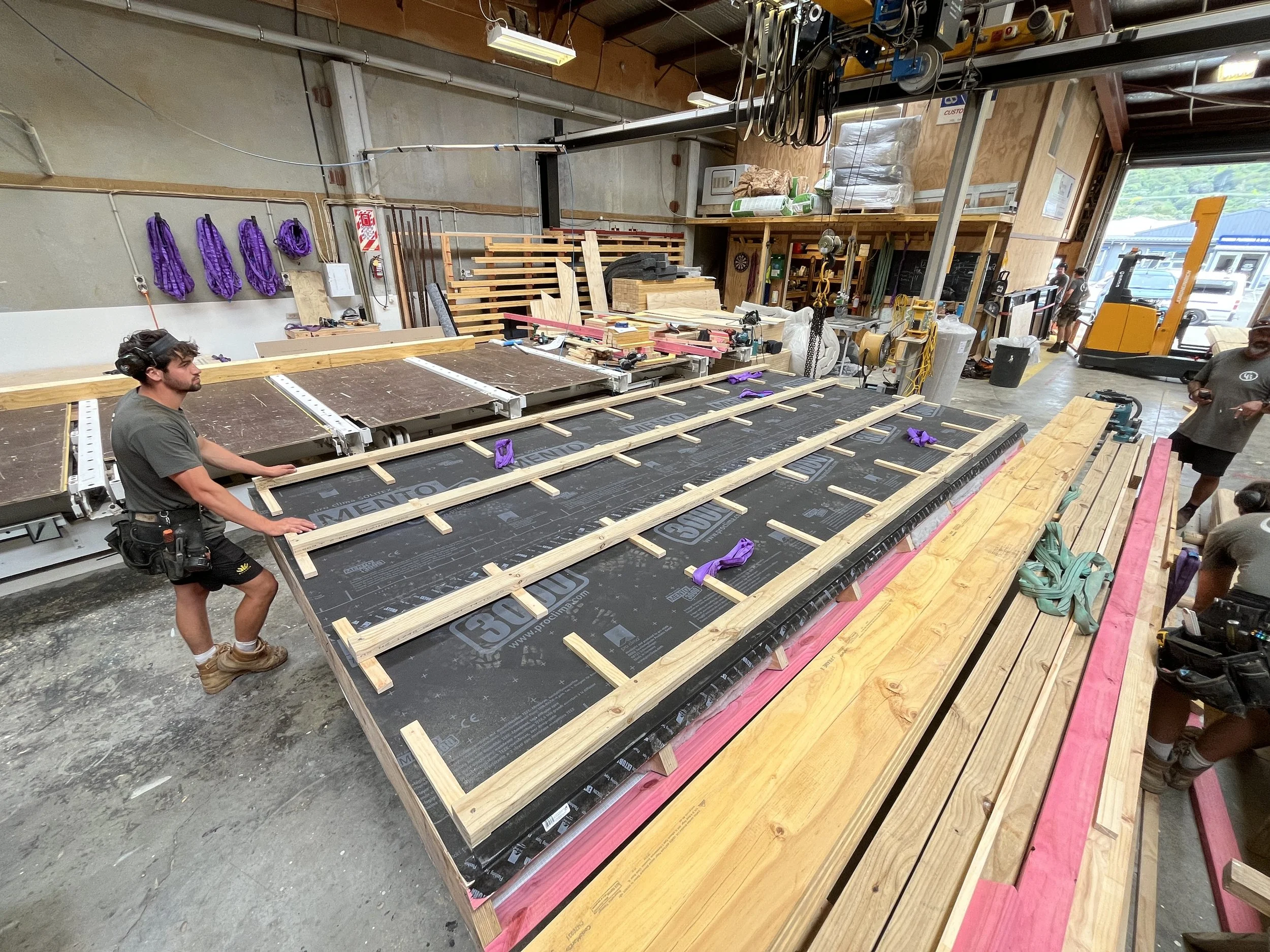

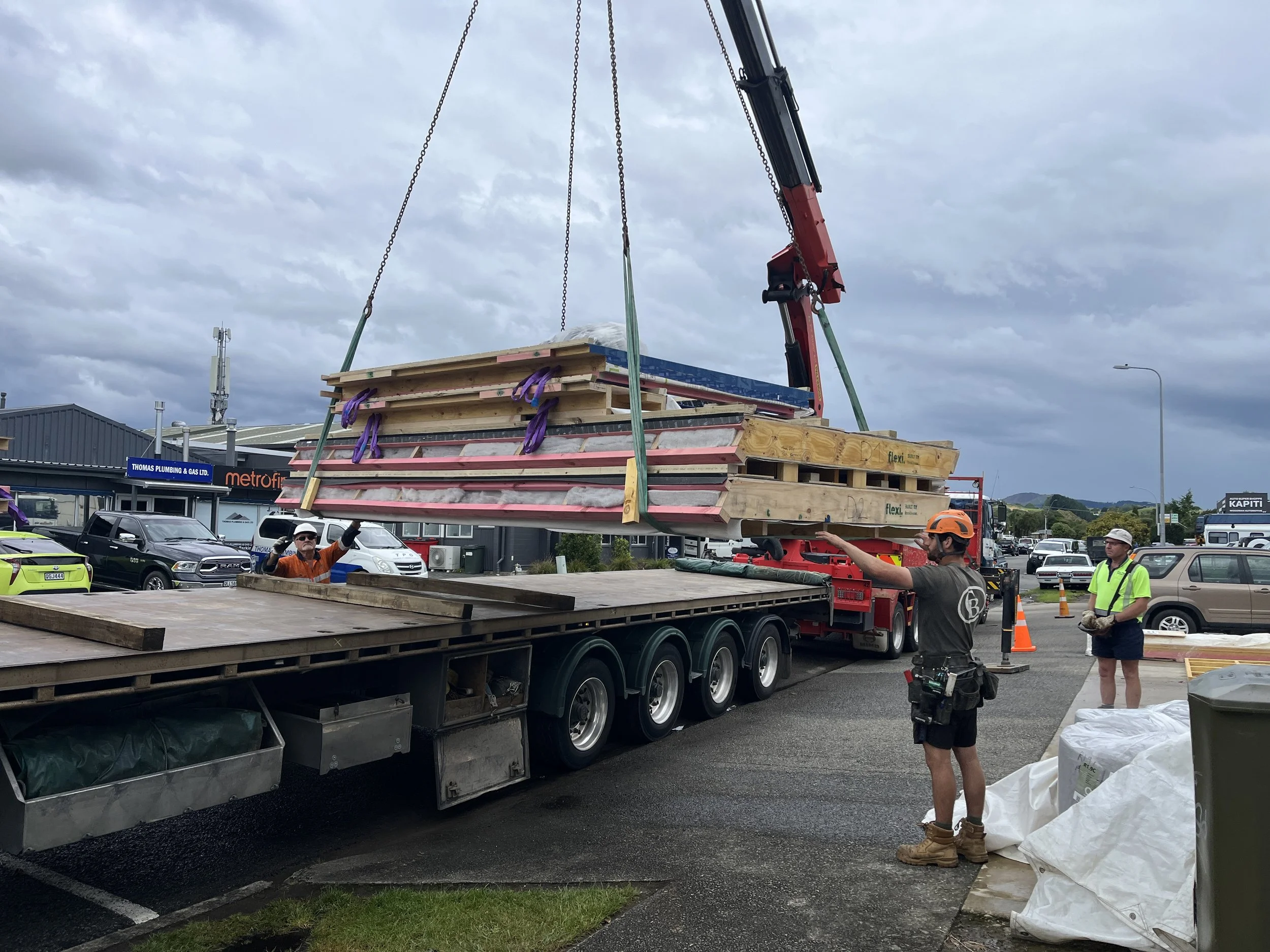

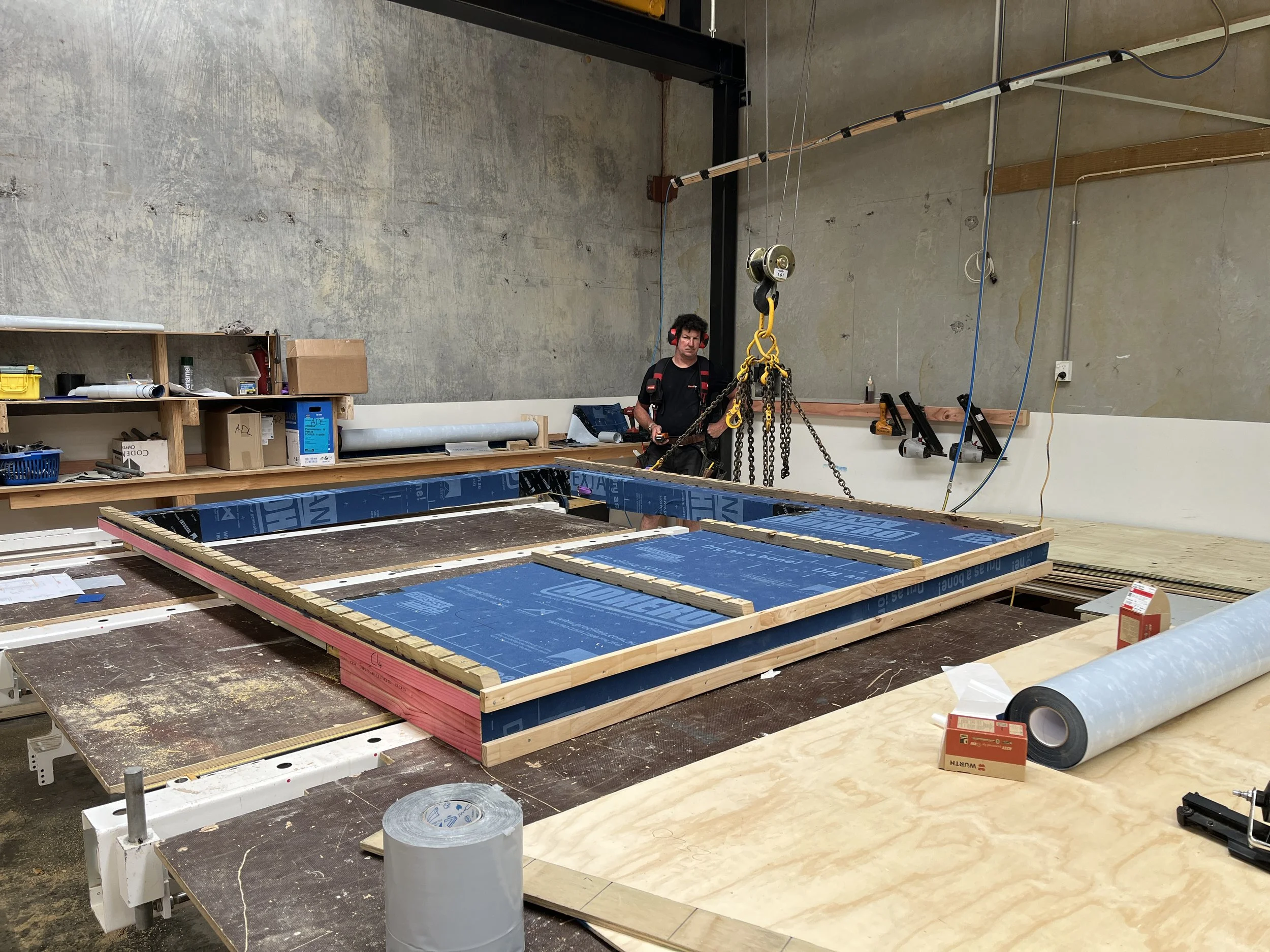

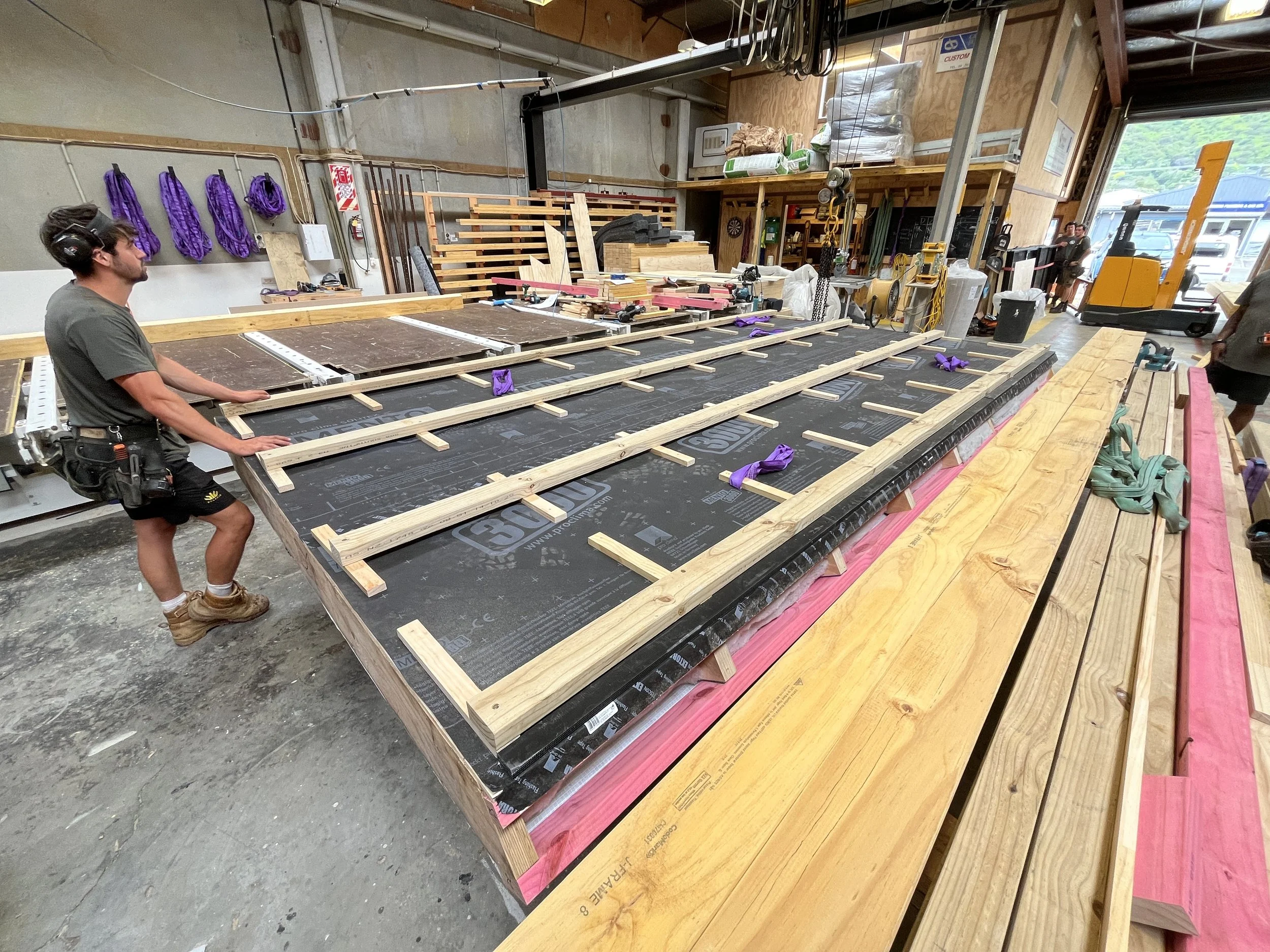

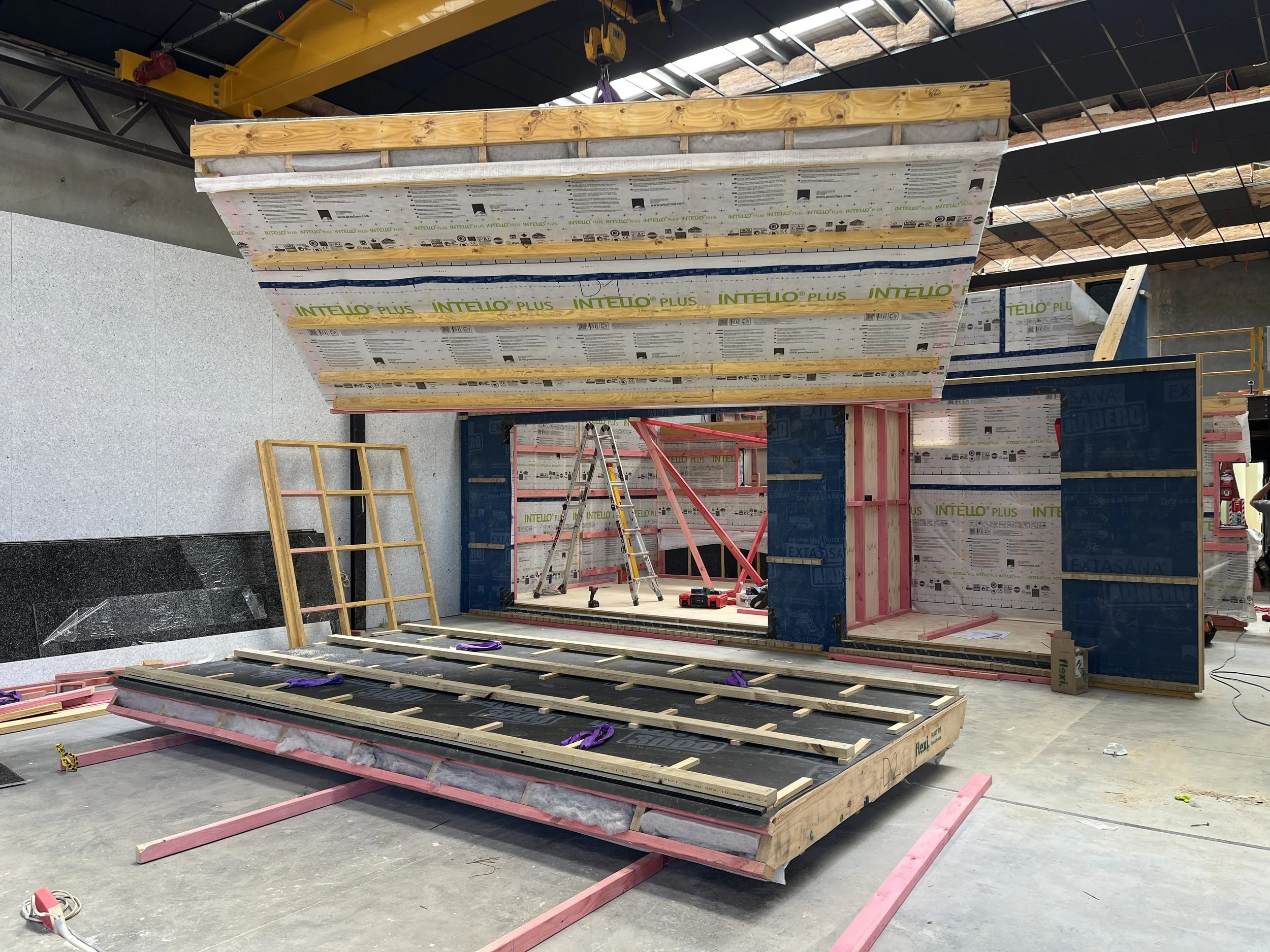

Prefabrication / Offsite Manufacture
-
Frank House and Flexi Panels have been collaborating and building togther since 2022. We’ve established a fluid offsite delivery process like no other in New Zealand.
Build Partner
Queenstown Lakes Build Partner
-
When building with an alternative construction methodology, it’s imporatnt to use a team that know the methodology well. Compound are by are panel install and passive house specialists!
Air Tightness
Dedicated high-performance air barrier & vapour control layer for complete control and moisture management.
-

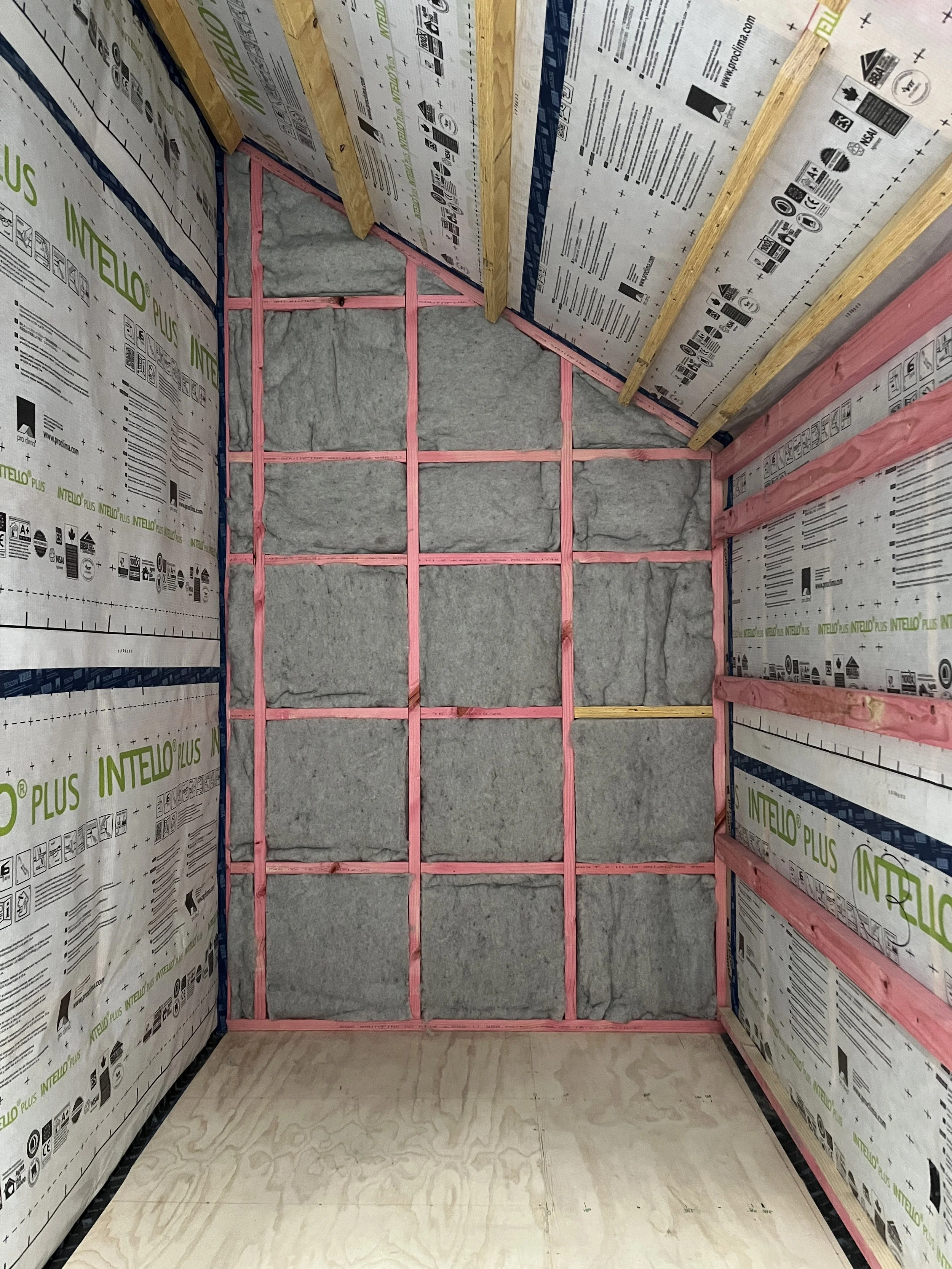

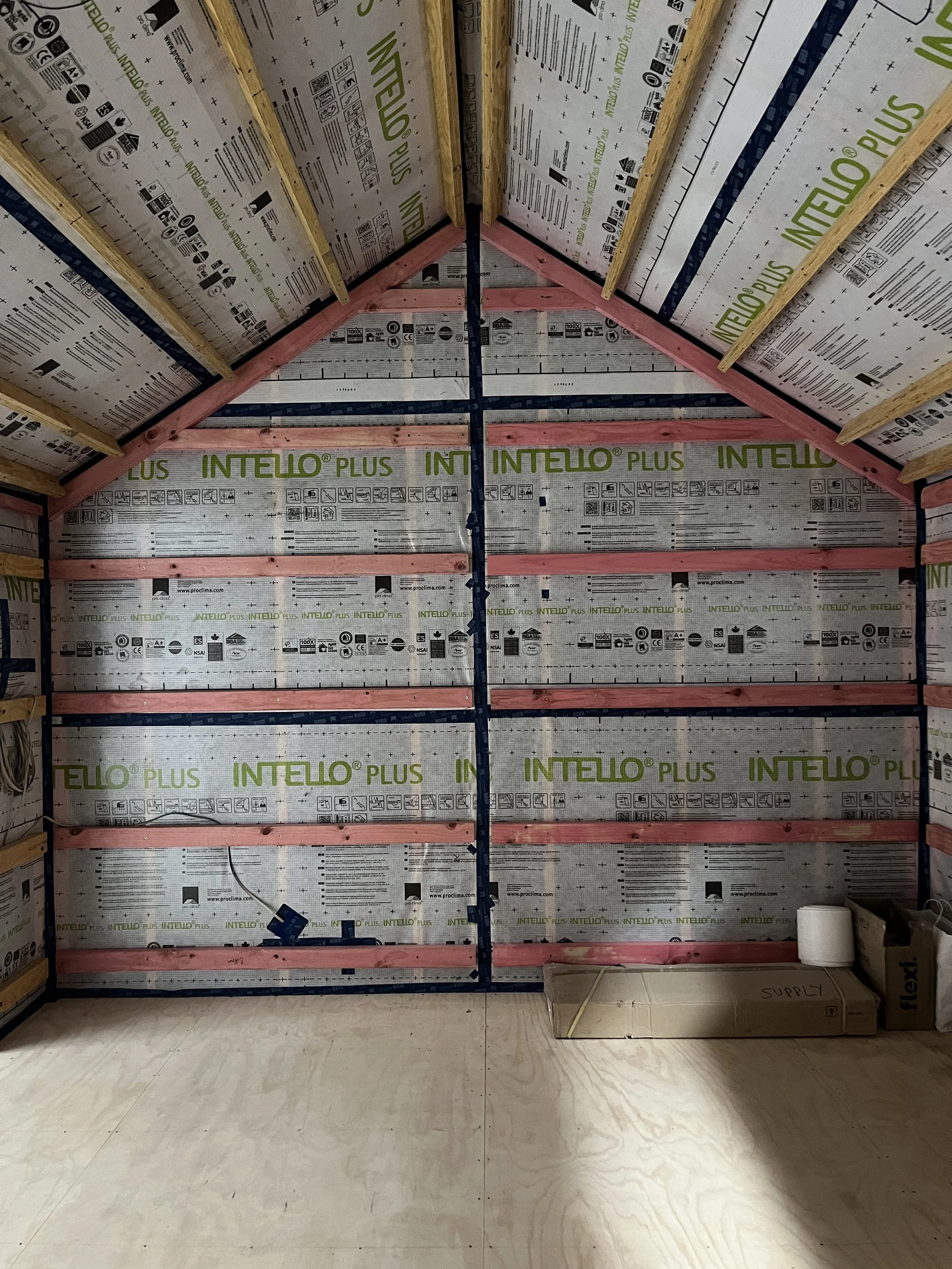

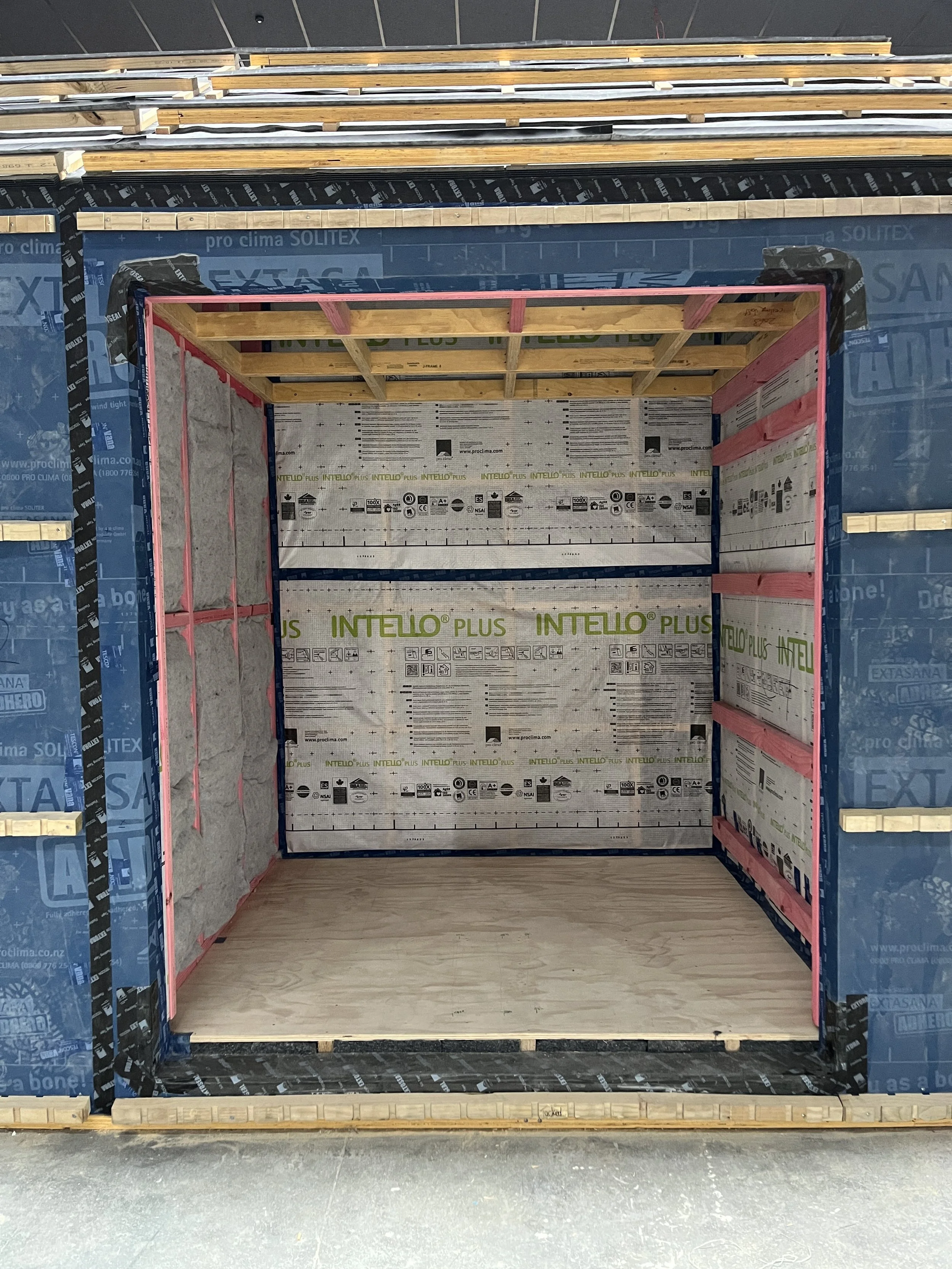

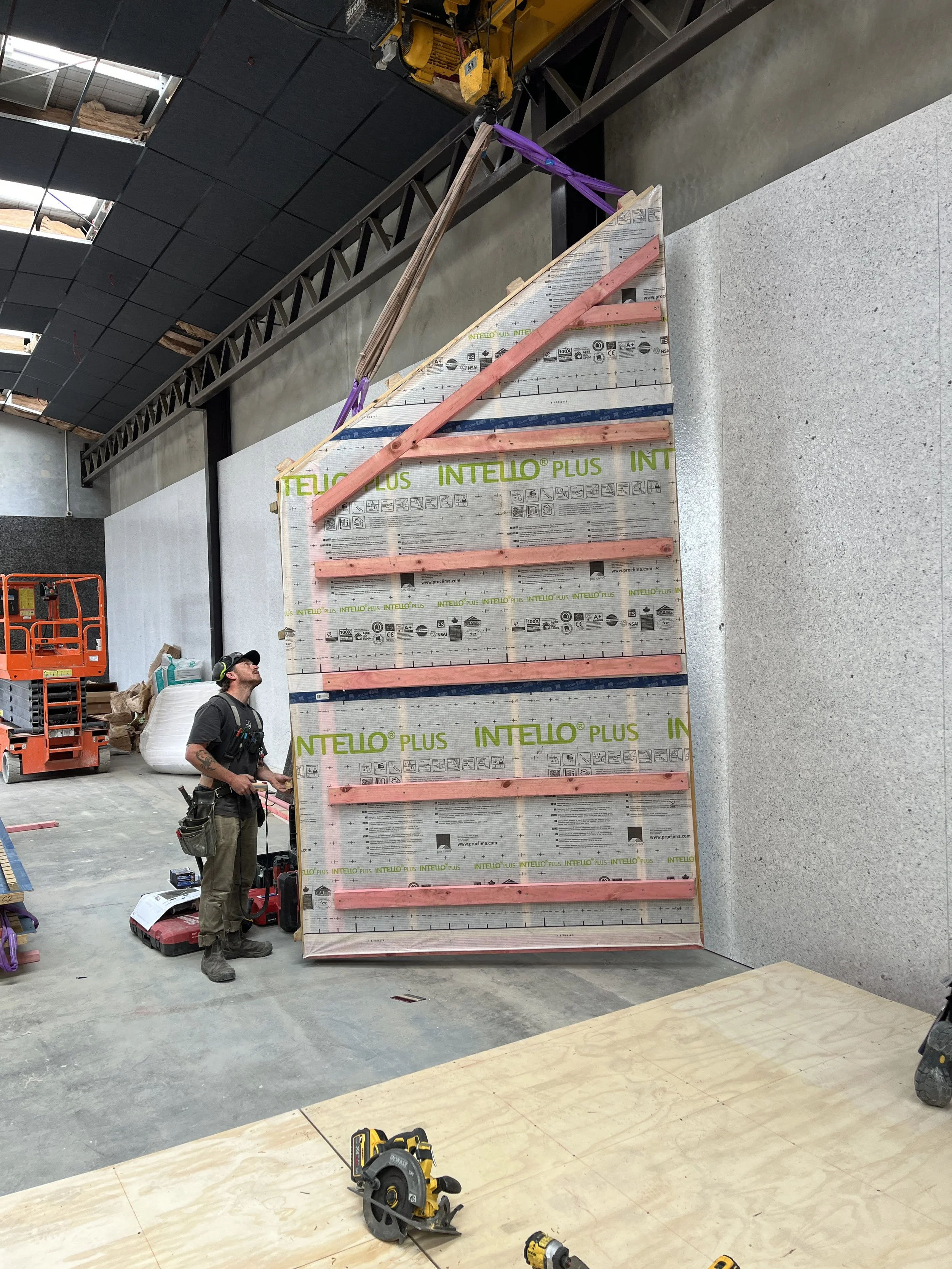

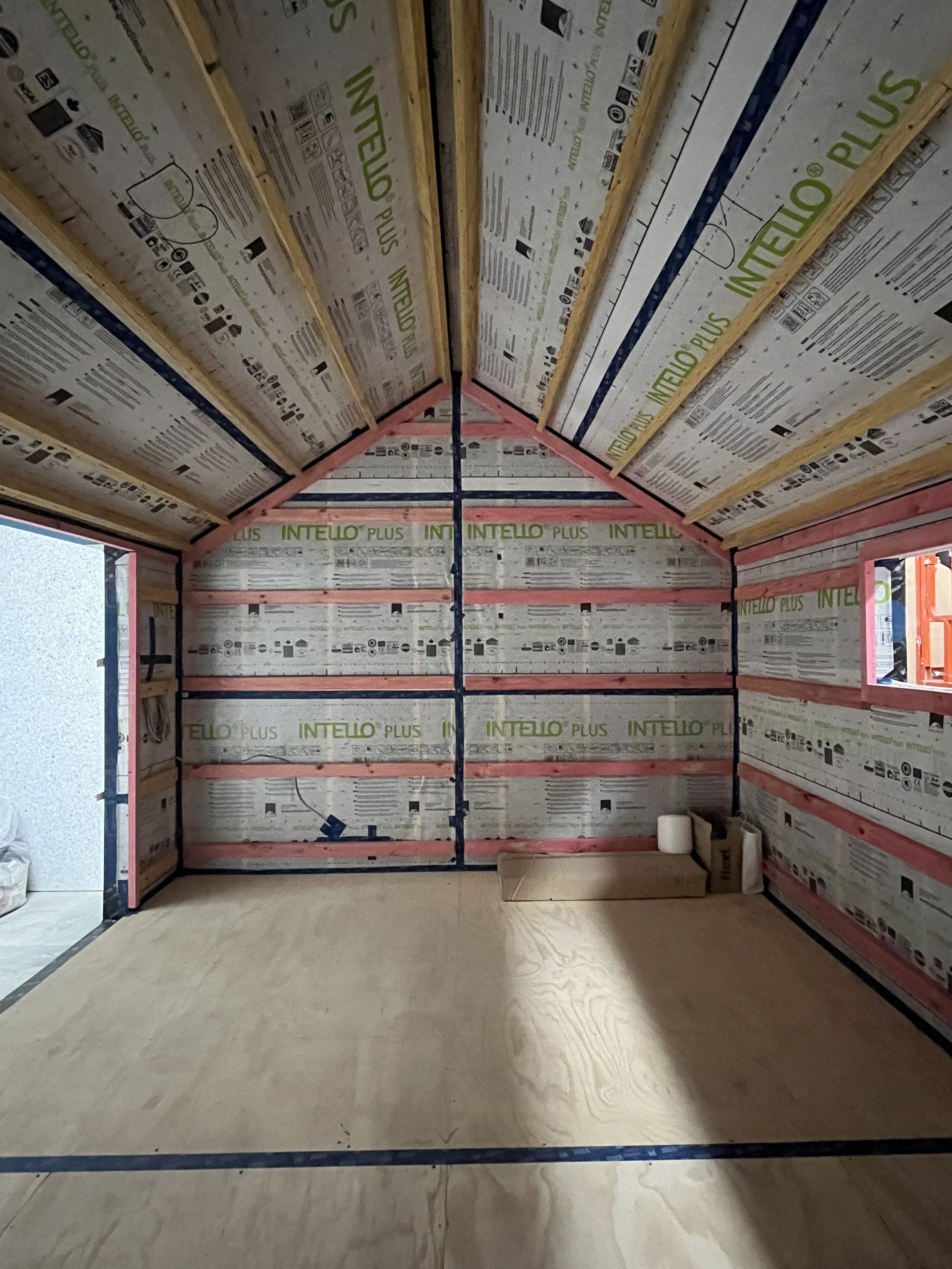

Pro Clima - Intello Plus
-
INTELLO is an intelligent air barrier providing superior energy efficiency and moisture control. INTELLO maximises the performance of your thermal insulation while restricting internal moisture entering the building envelope. It provides optimal protection against structural damage and mould.
Weather Tightness
Roof Weather Resistive Barrier with Above Sheathing Ventilation.
-

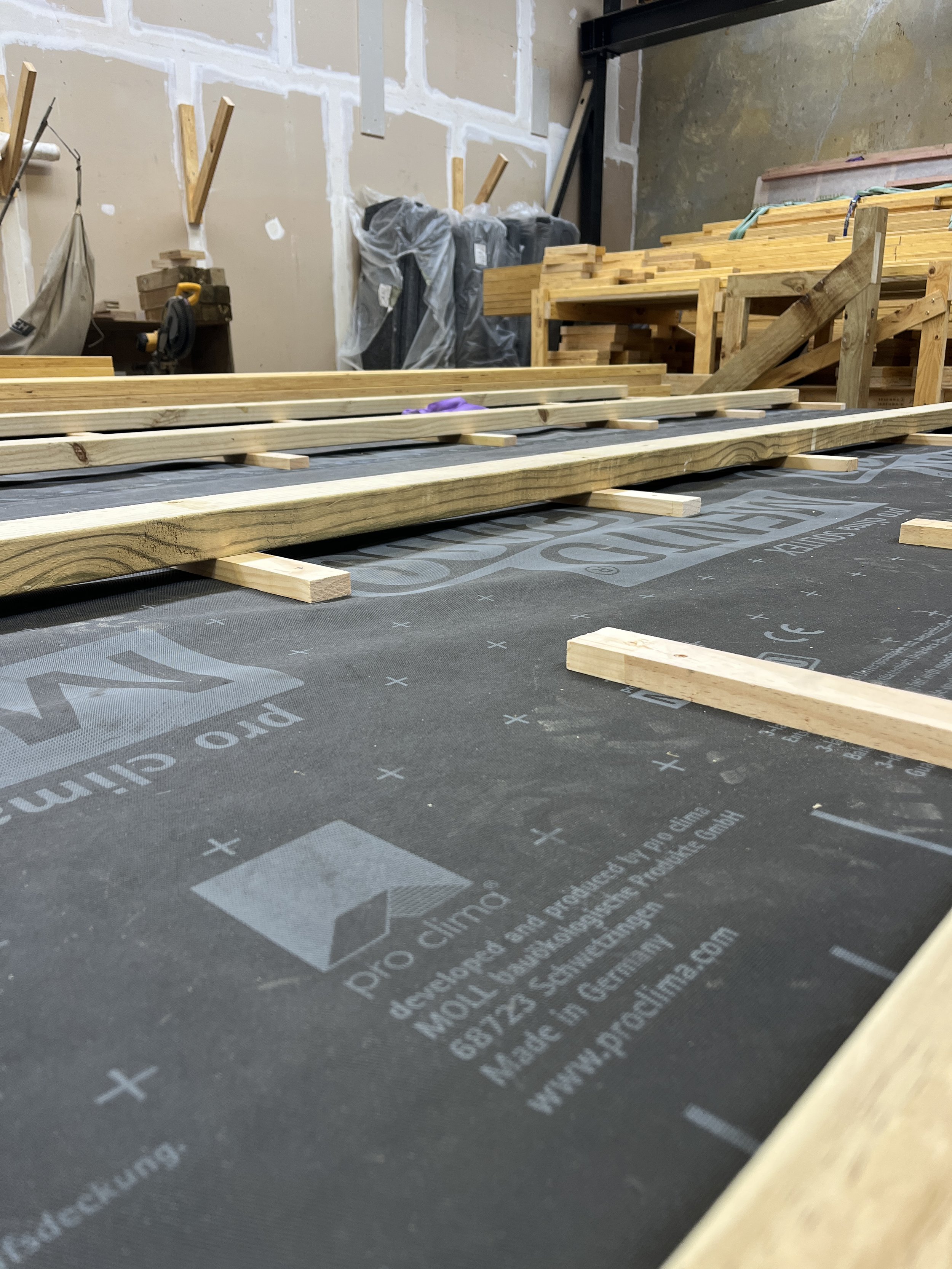

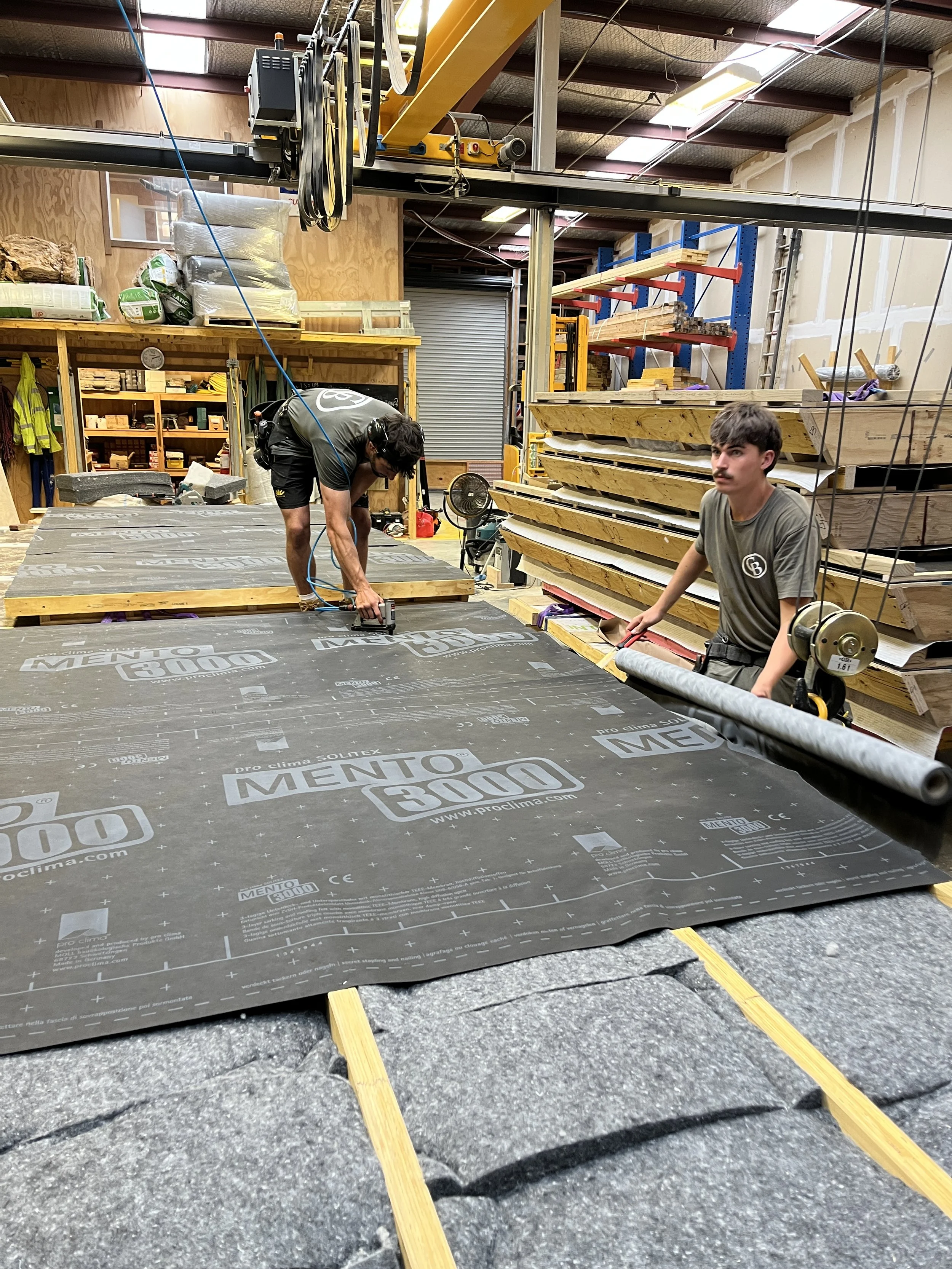

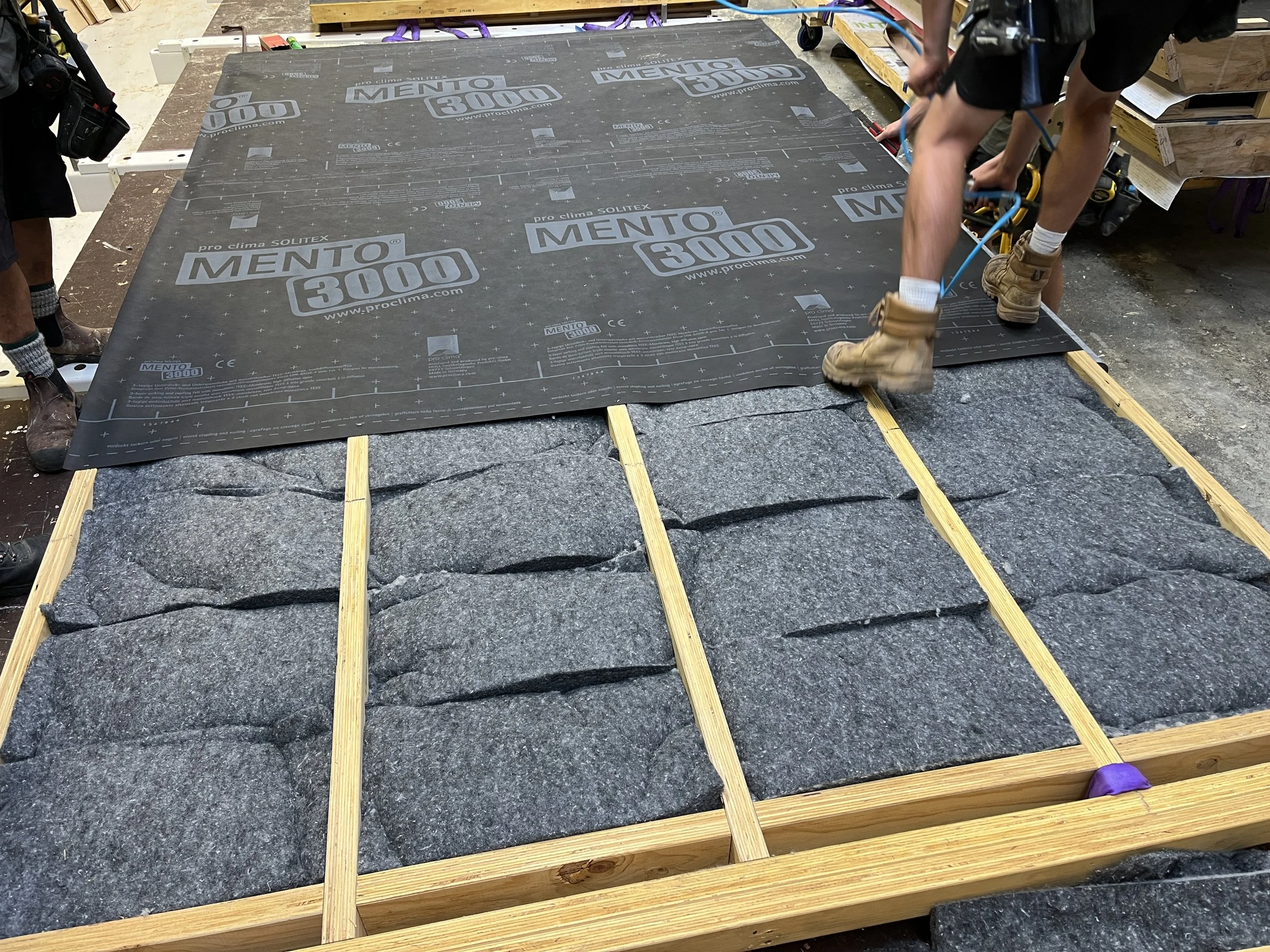

Pro Clima - Solitex Mento 3000
-
SOLITEX MENTO provides superior weather and condensation protection for your roof under all weather conditions. It protects our roofs and building envelopes from the elements during construction and installation of panels allowing any internal moisture to escape through the vapour permeable, non-porous TEEE layer. Coupled with a roof ventilated cavity as per the pro clima ASV system.
Weather Tightness
Self-Adhesive Weather Resistive Barrier for complete protection and added airtightness.
-

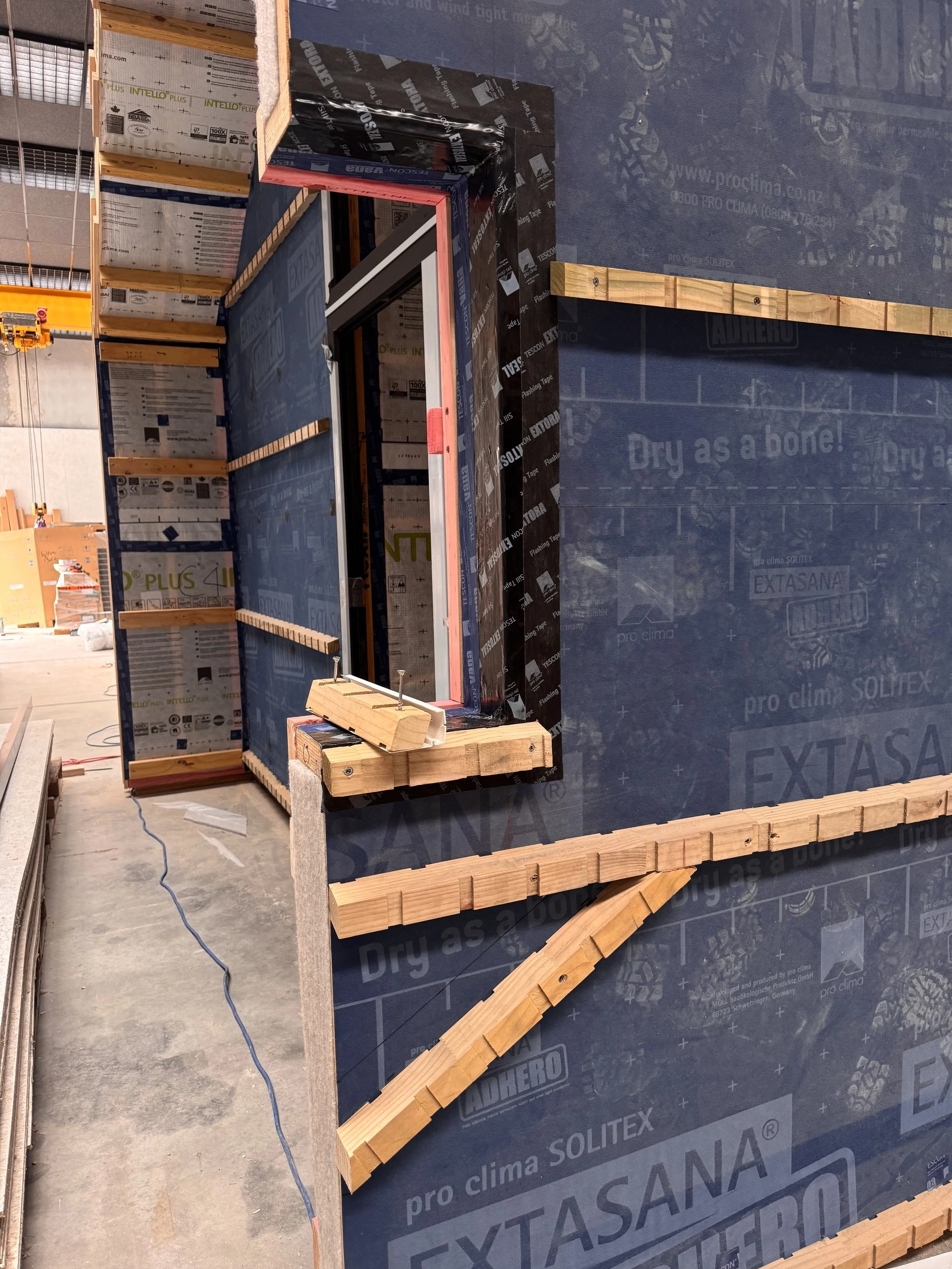

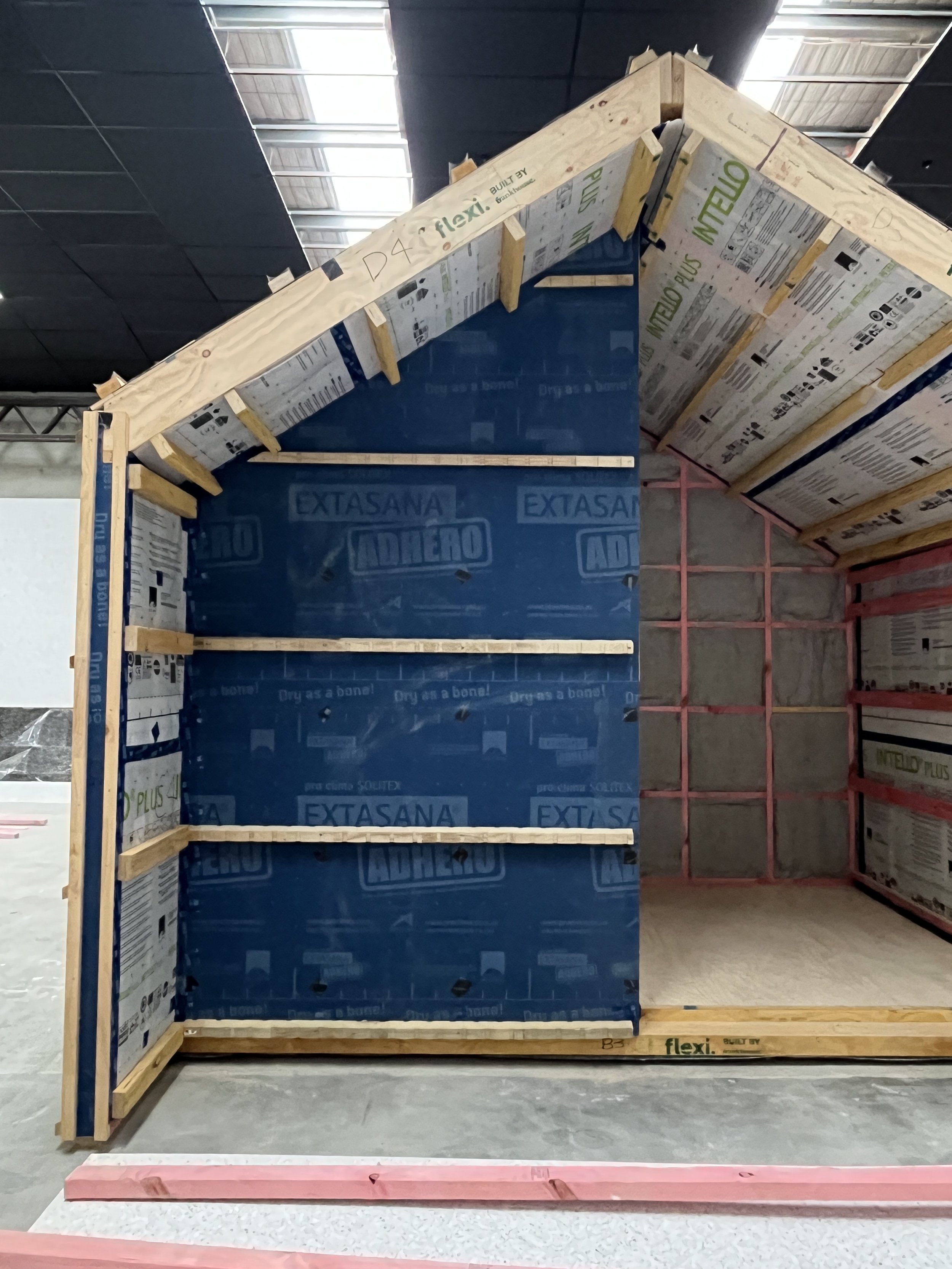

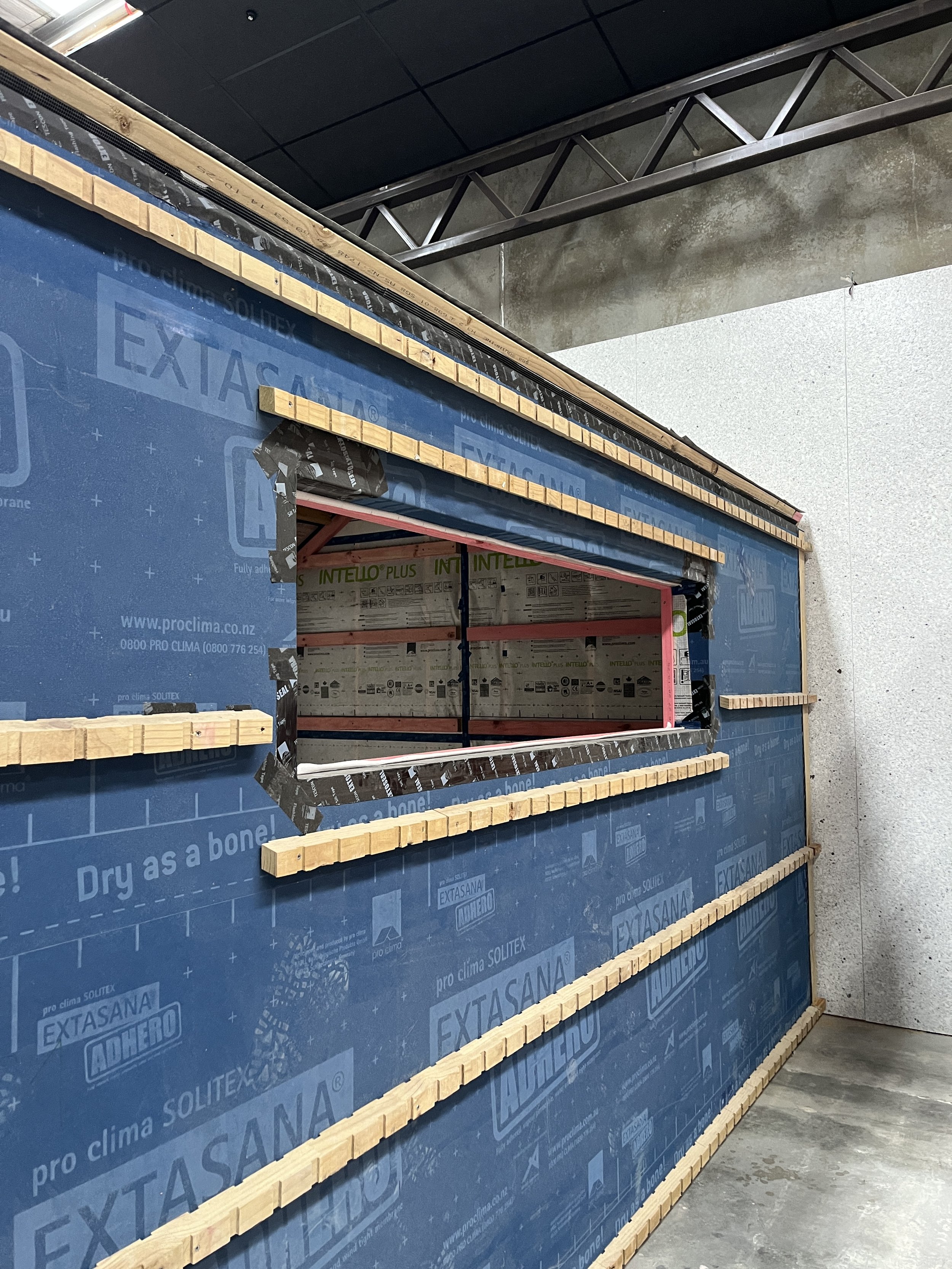

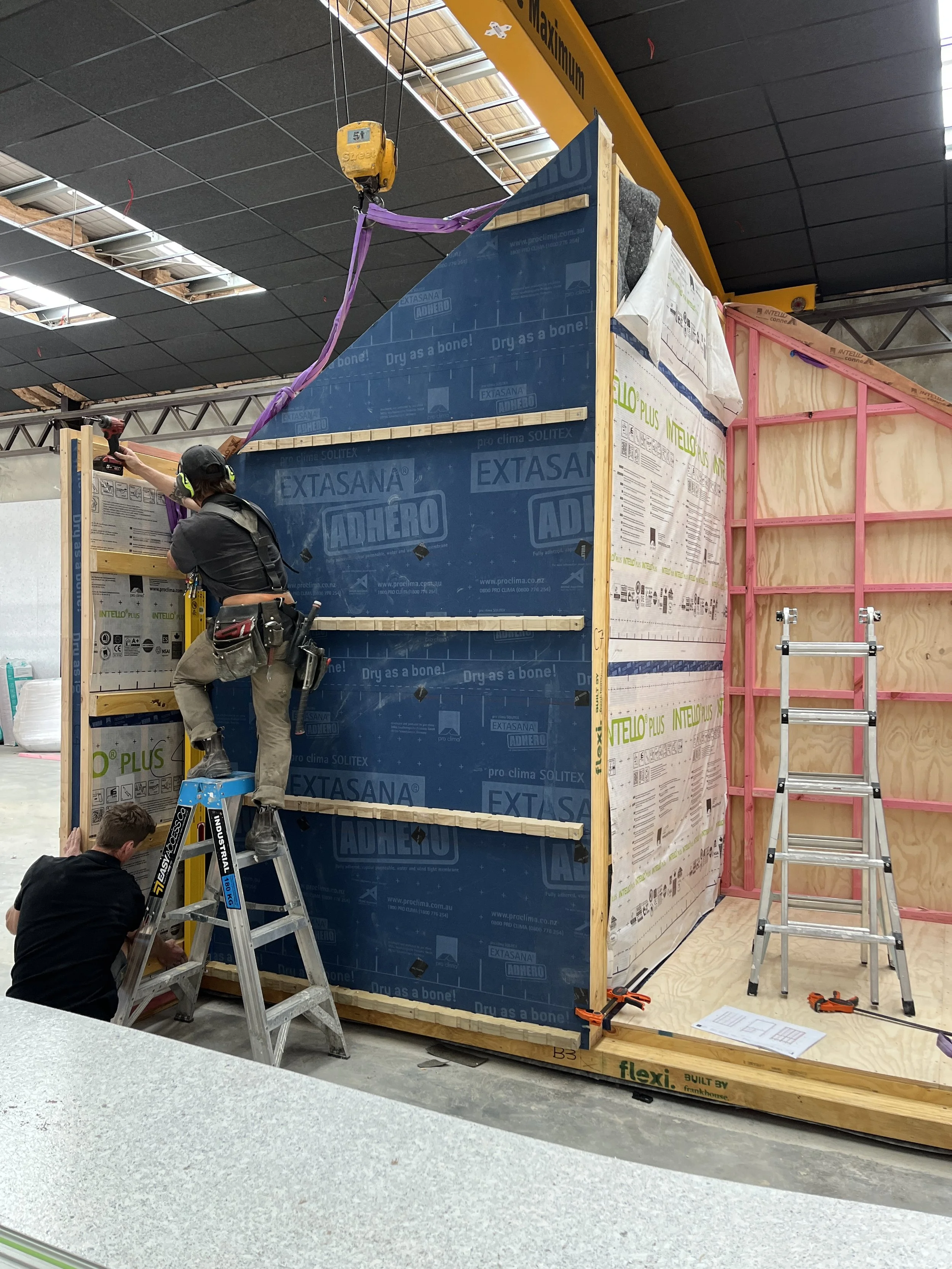

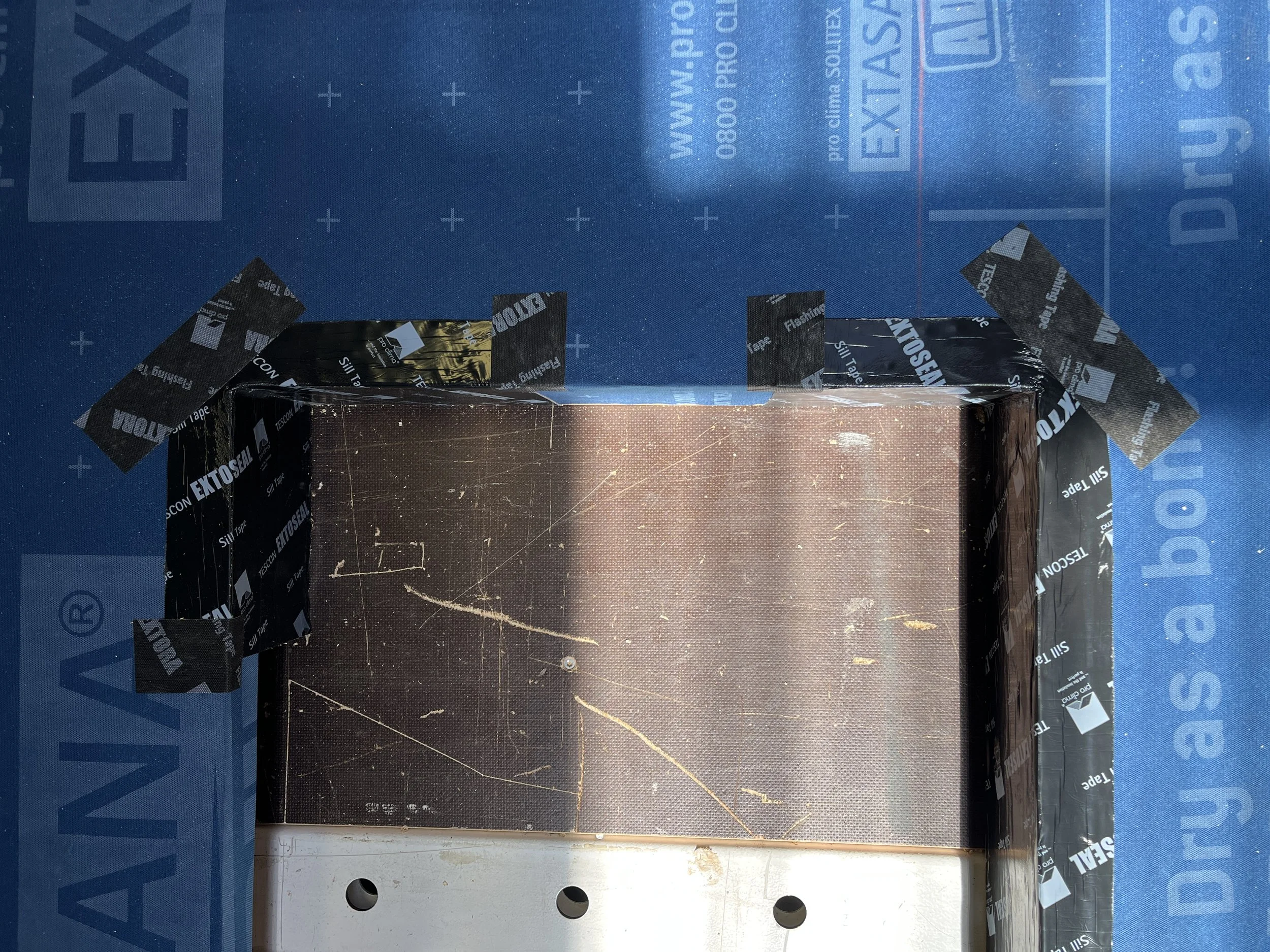

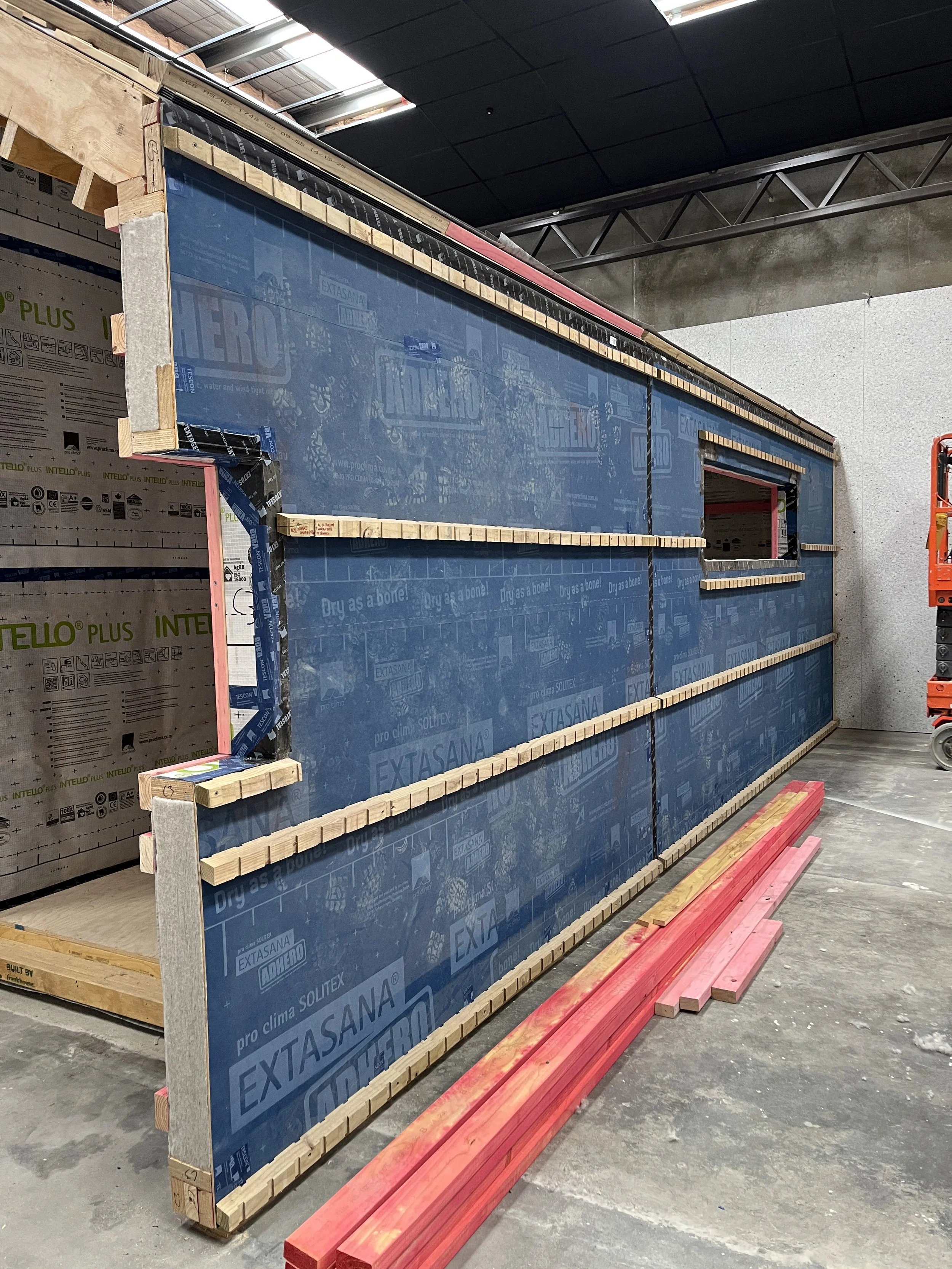

Pro Clima - Solitex Extasana Adhero
-
SOLITEX EXTASANA ADHERO provides ultimate weather protection for walls and roofs under all conditions. Once fully adhered to rigid substrates, it protects the building from wind, driving rain, and other external water sources while allowing any internal moisture to escape through the vapour-permeable, non-porous TEEE* layer.

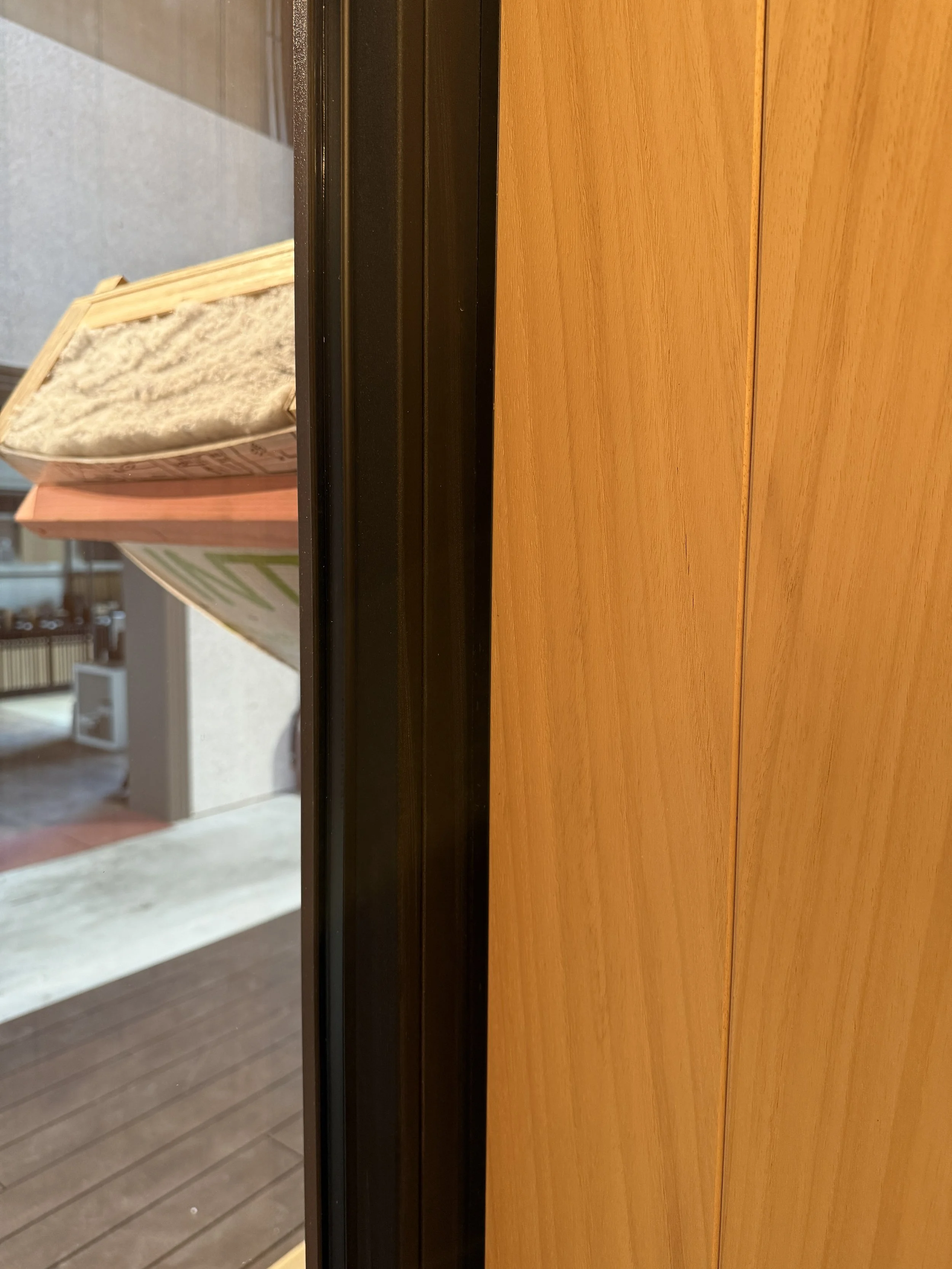

uPVC Windows & Doors
Experience more comfort with high thermal performance uPVC frames, superior air-tightness with welded corners, and superior security with multi-point locking.
-

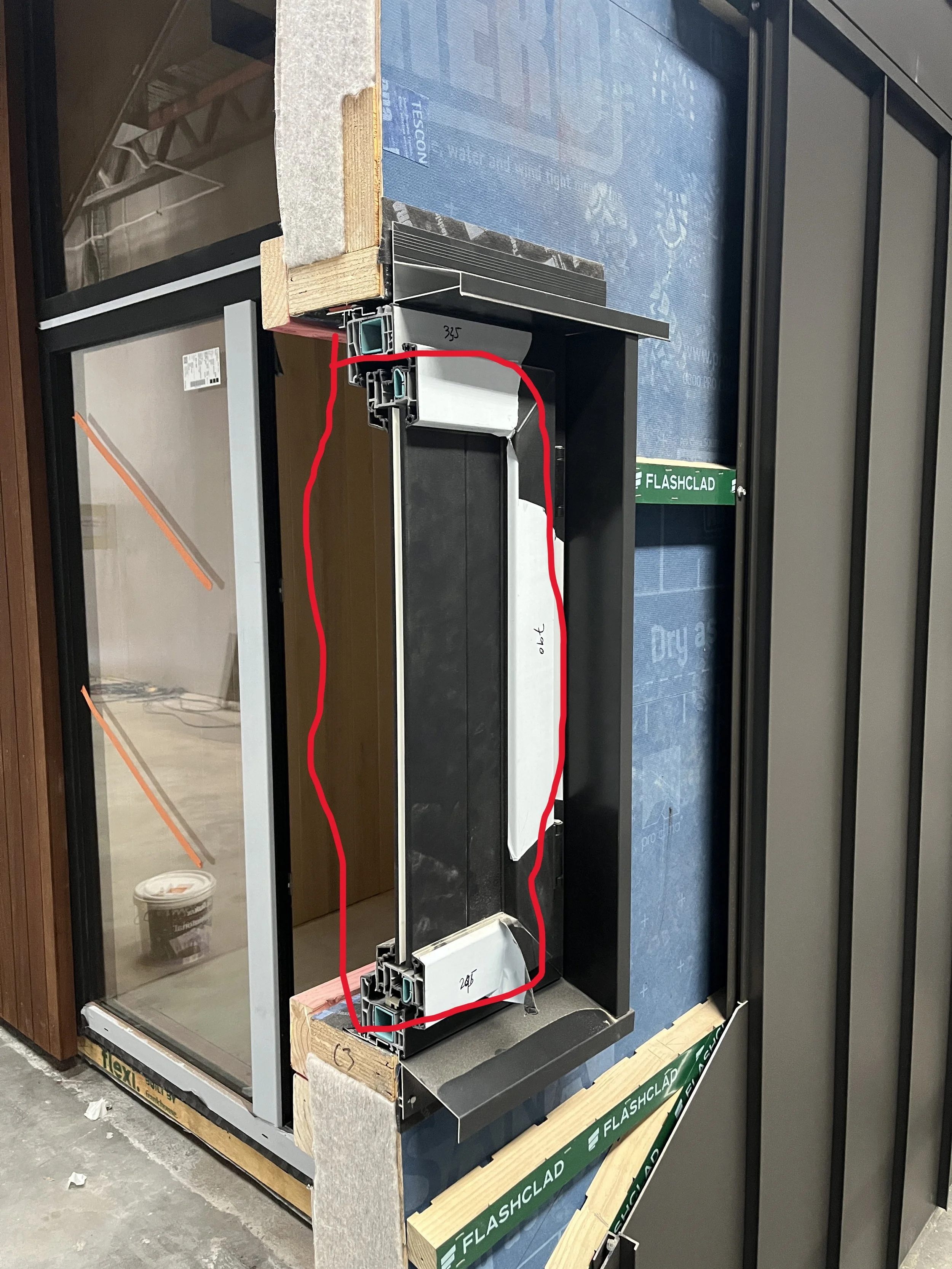

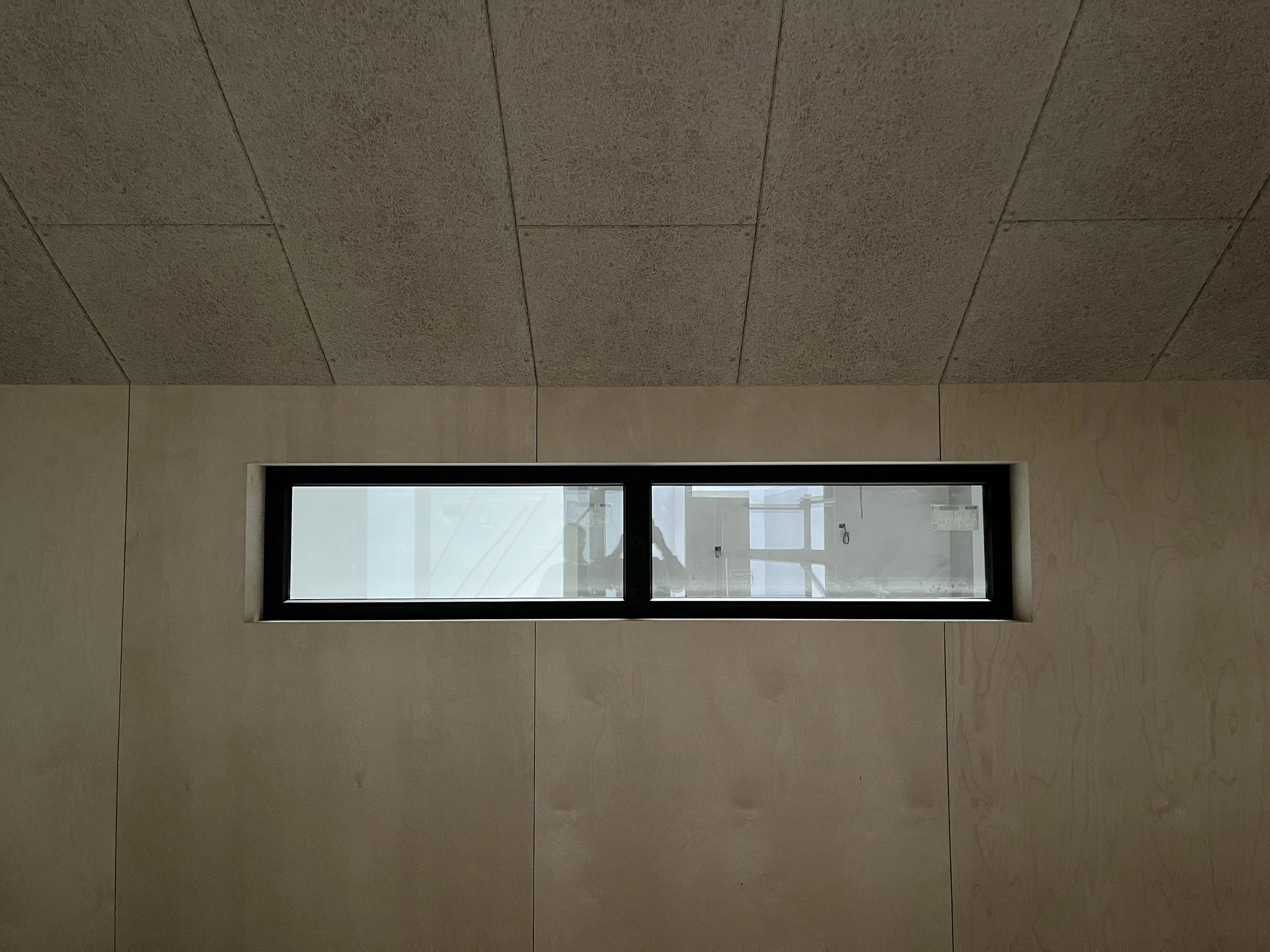

Starke Ambiance uPVC Windows, Black Frames, Argon filled Proformatech Low-E Glass
-
Ambiance uPVC are 48% more thermally efficient than thermally broken aluminium frames ad they have a proprietry inline flashing system.

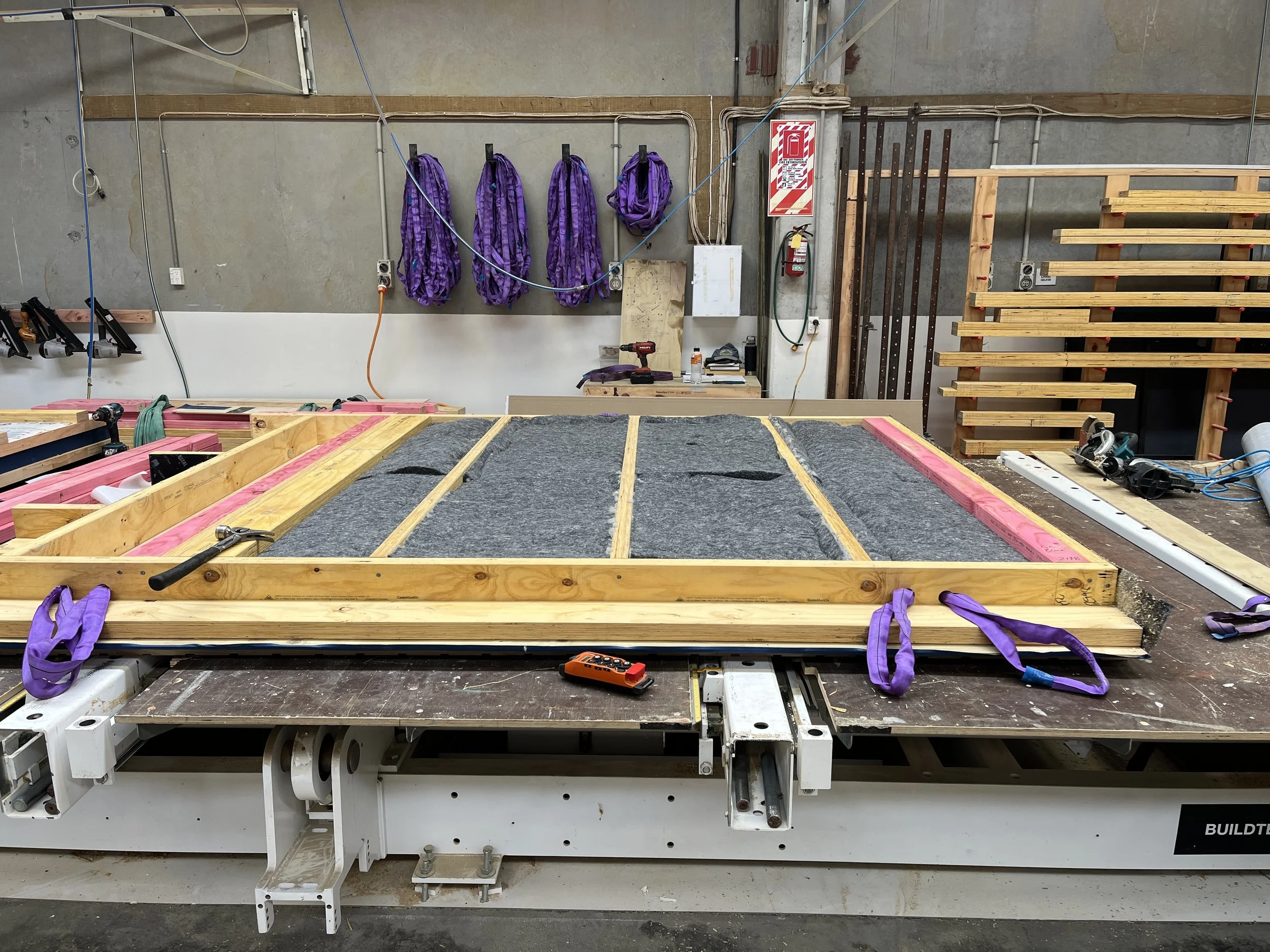

Wool Insulation
Thermal and acoustic insulation for floor, wall, roof - Terra Lana harnesses the unique qualities of Natural Wool to create innovative wool insulation for a warmer more comfortable home.
-

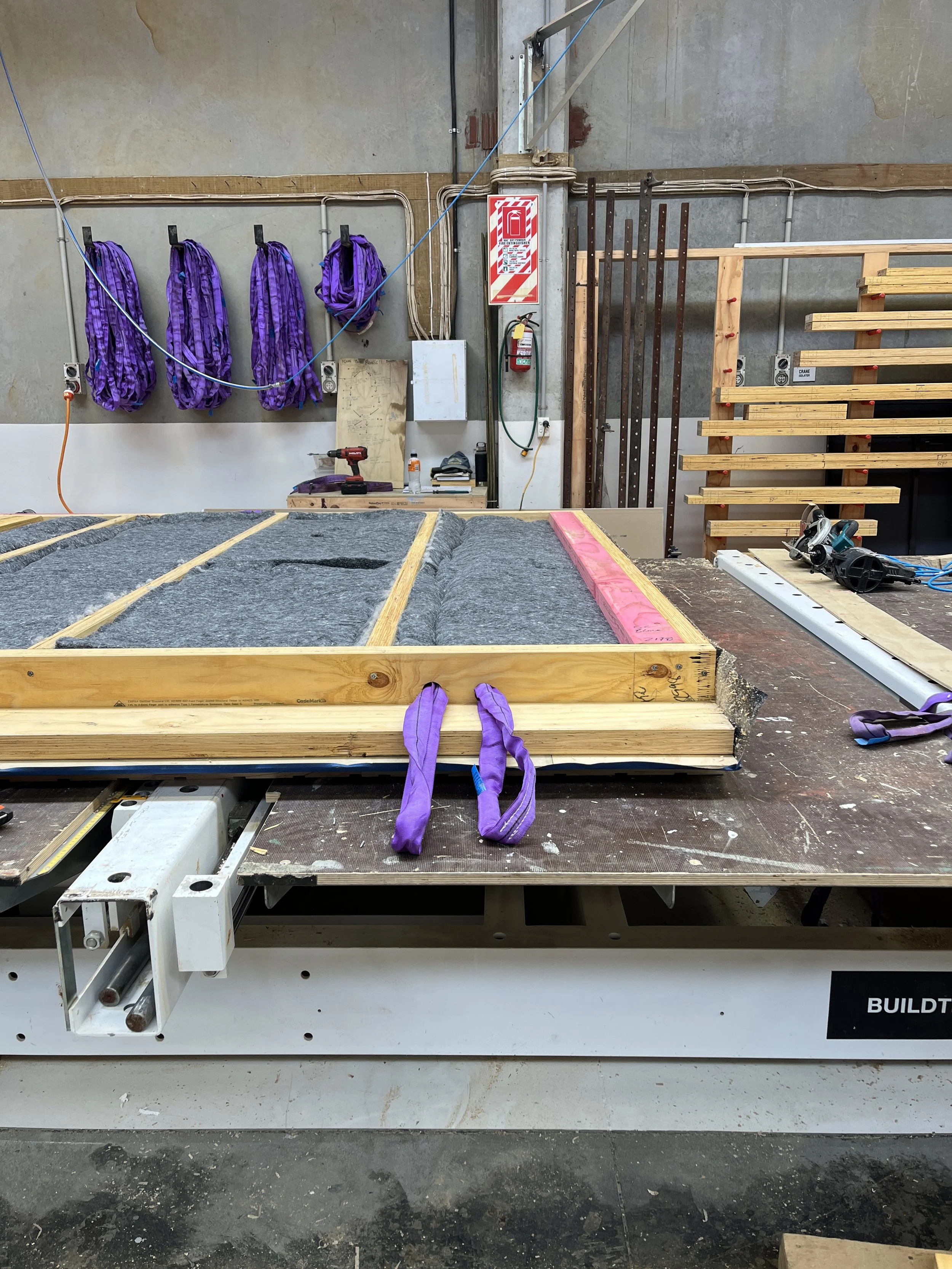

Terra Lana - Floor 140mm R3.2, Wall 140mm R3.6, Service Cavity 45mm R1.2, Roof 190mm R5.0
-
Acoustically sound, moisture-wicking, warmth-producing, soft and natural.
Terra Lana wool insulation is hygroscopic, enabling it to absorb and release water vapour which is unique to wool maintaining its thermal performance beyond that of synthetic insulations. This crucial benefit helps reduce the risk of moisture buildup within a buildings envelope.

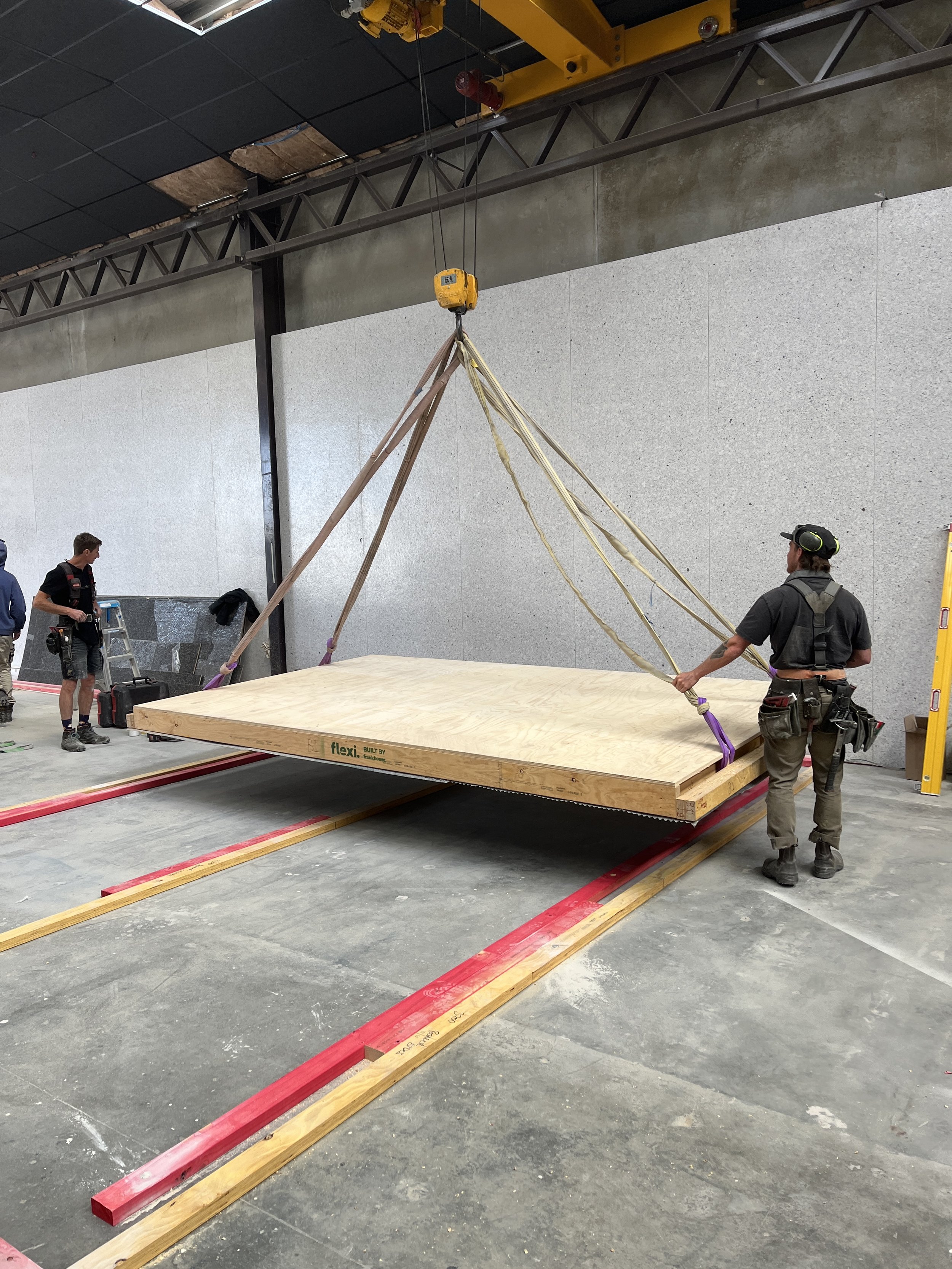

Structural Plywood
Strucural Grade Plywood for Rigid Air Barriers, Bracing & Shear Walls, Floor and Roof Diaphragms.
-

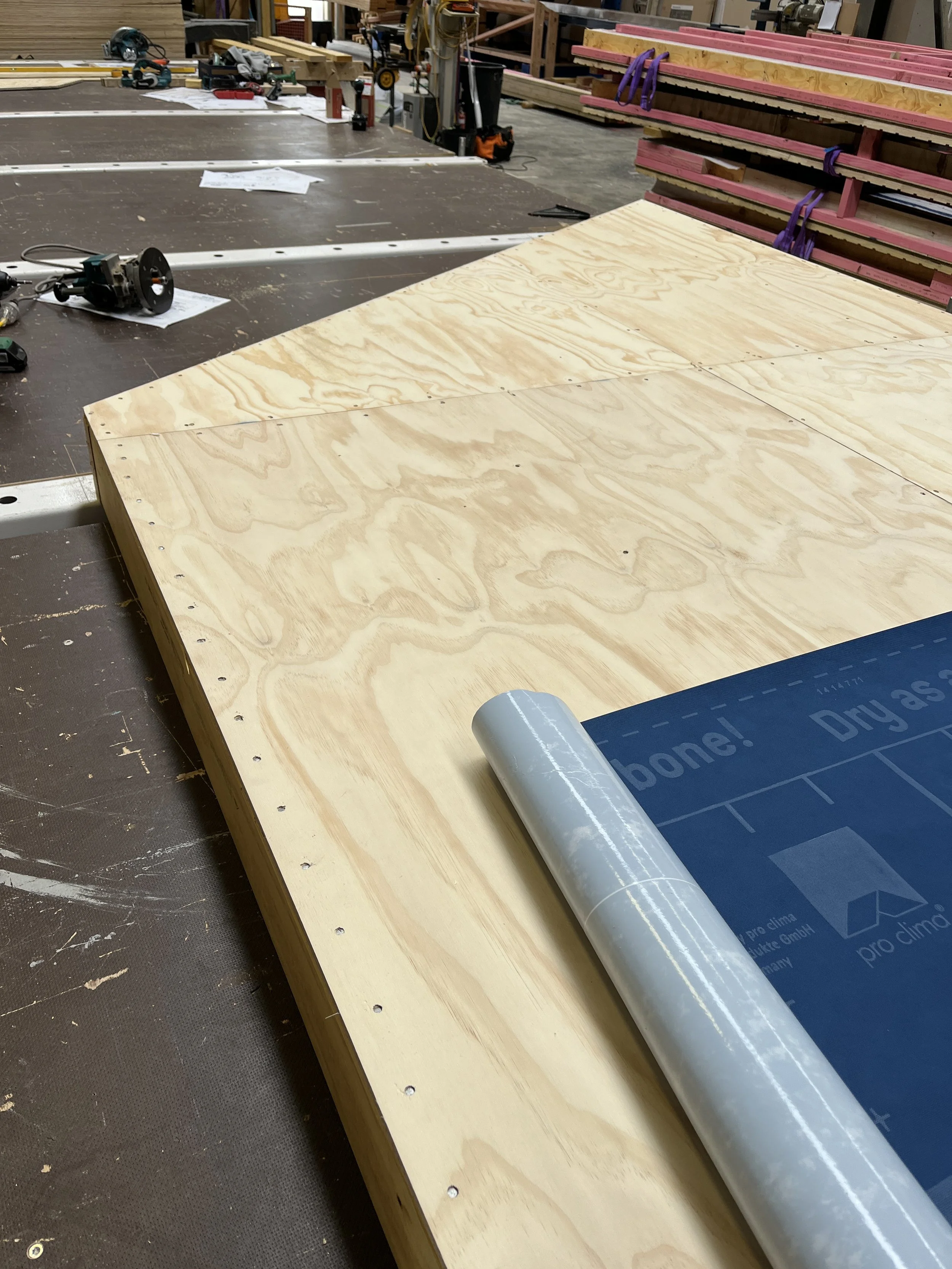

Plymasters - Construction Pine CD Structural Wall 7mm, Roof 12mm & Floor 18mm.
-
Offsite construction requires super straight, square and flat structural materials. Plymasters plywood is of superior quality that allows us to ensure precision fabrication.

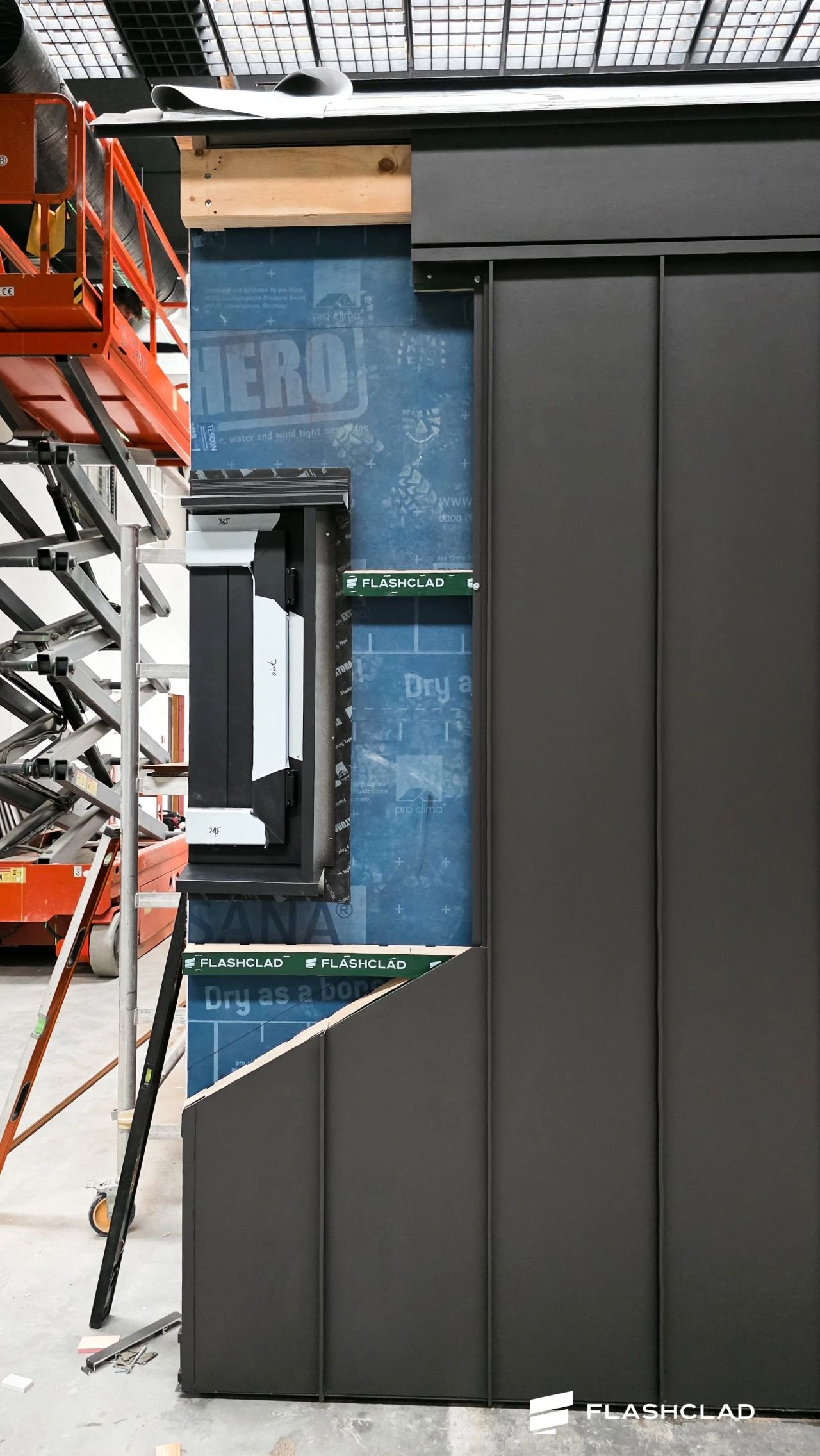

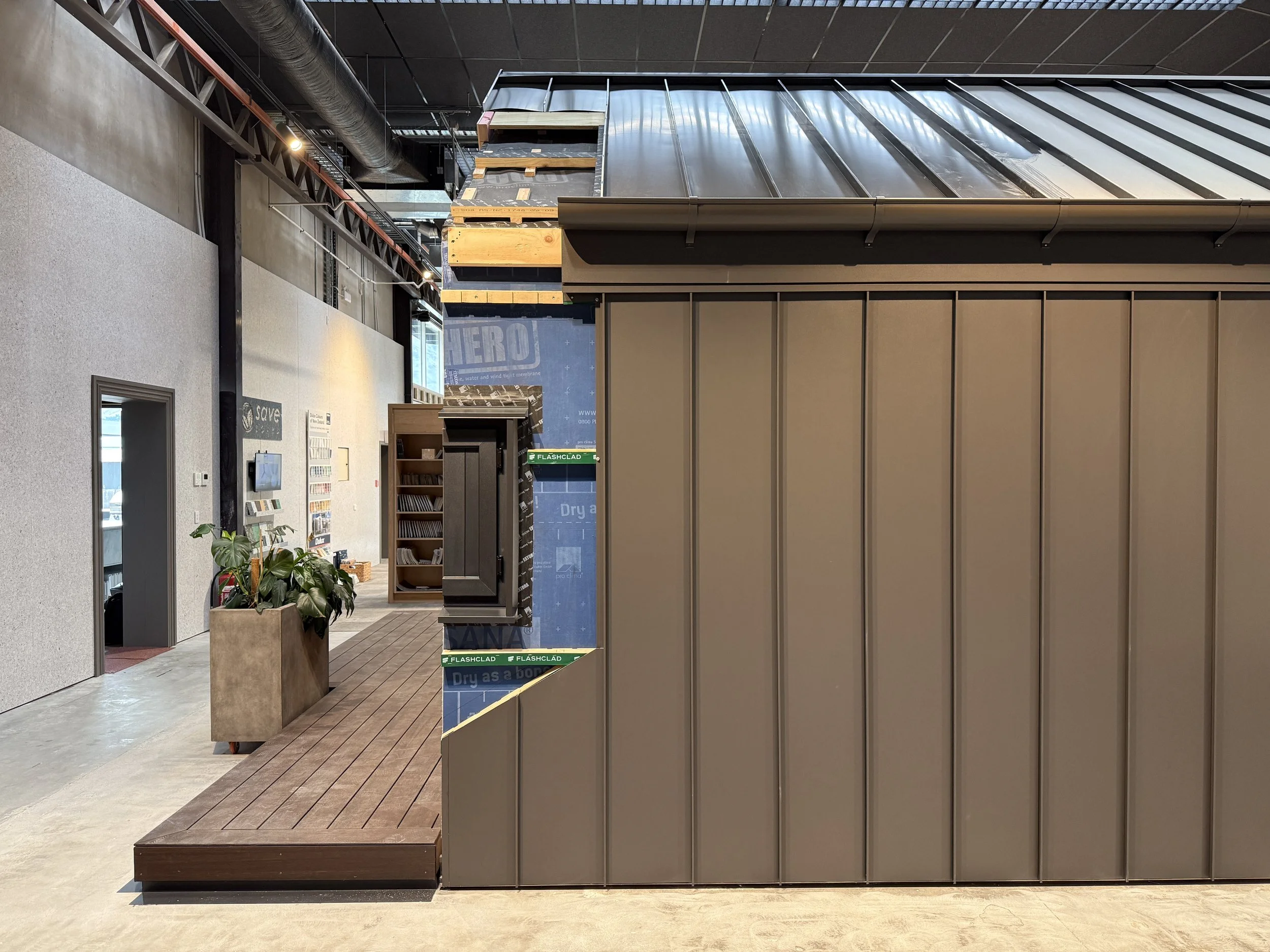

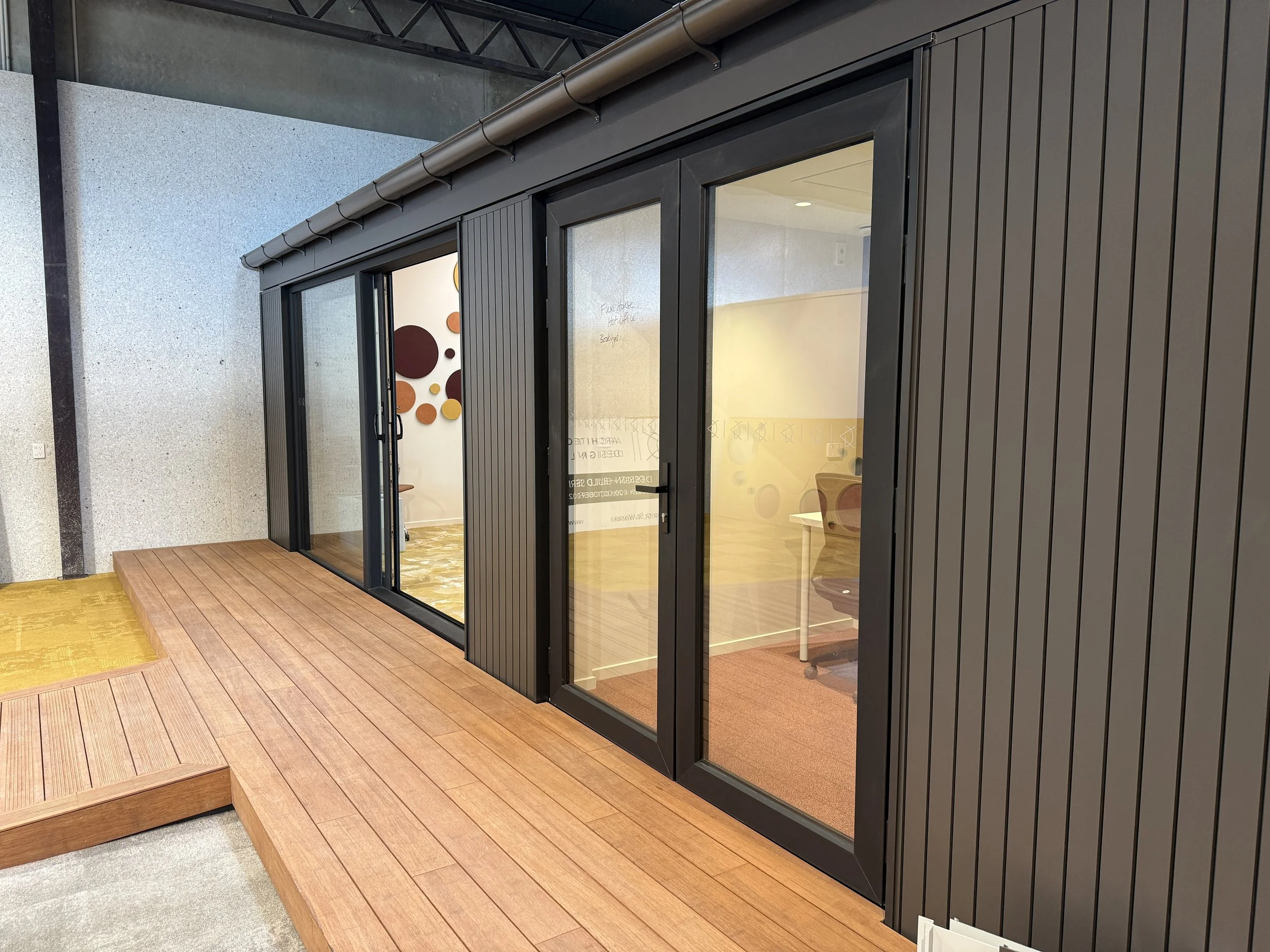

Aluminium Cladding

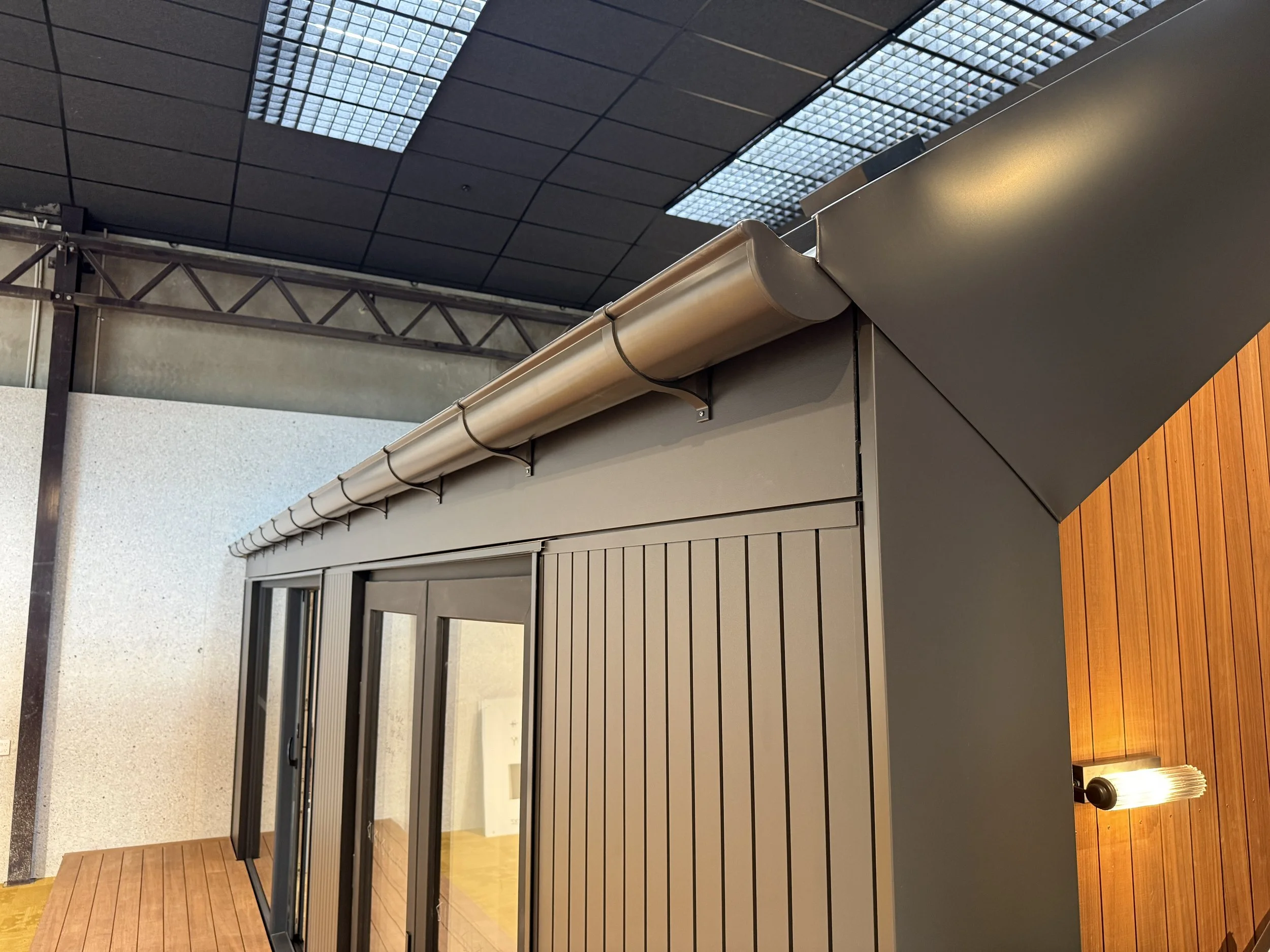

Weatherboard cladding, fascia, window shroud, box gutter and proprietary flashing systems.
-

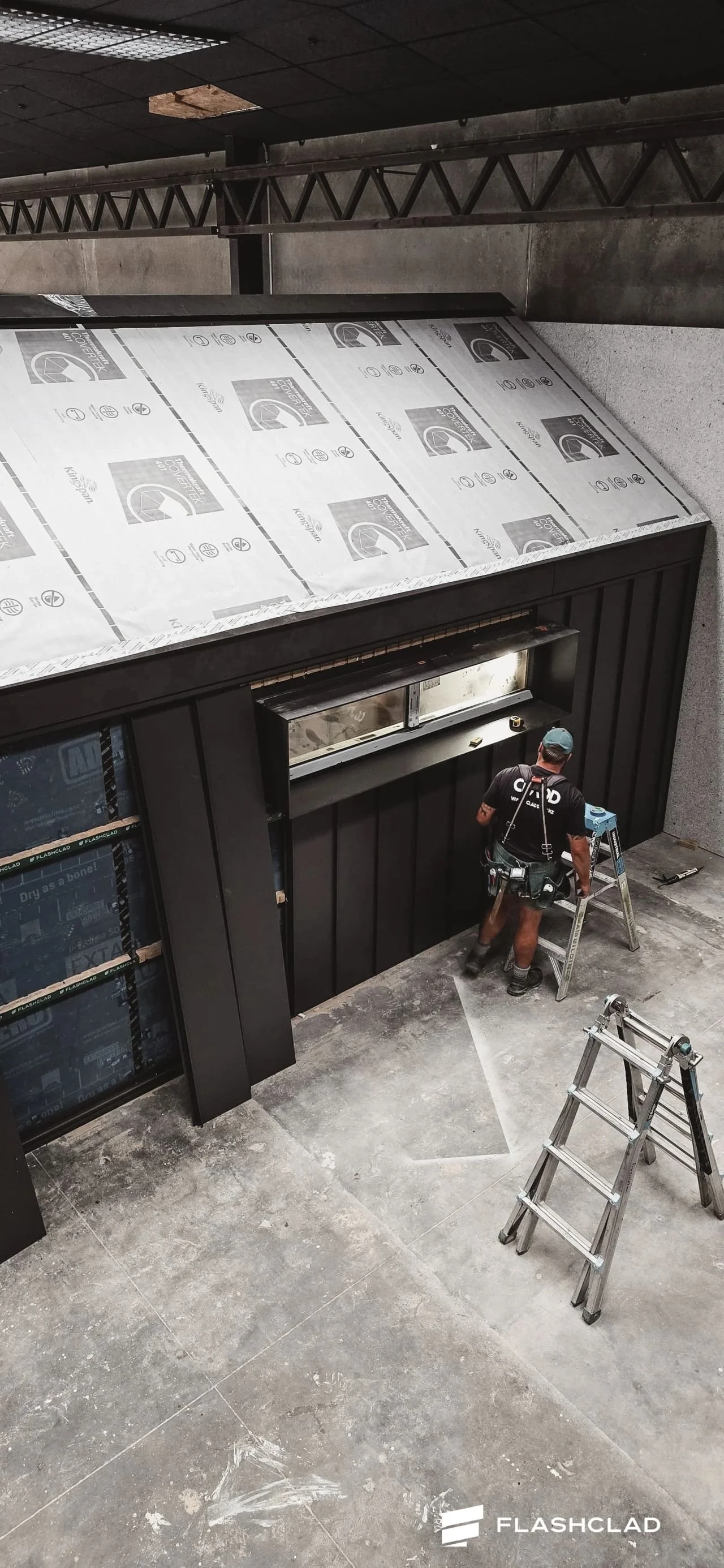

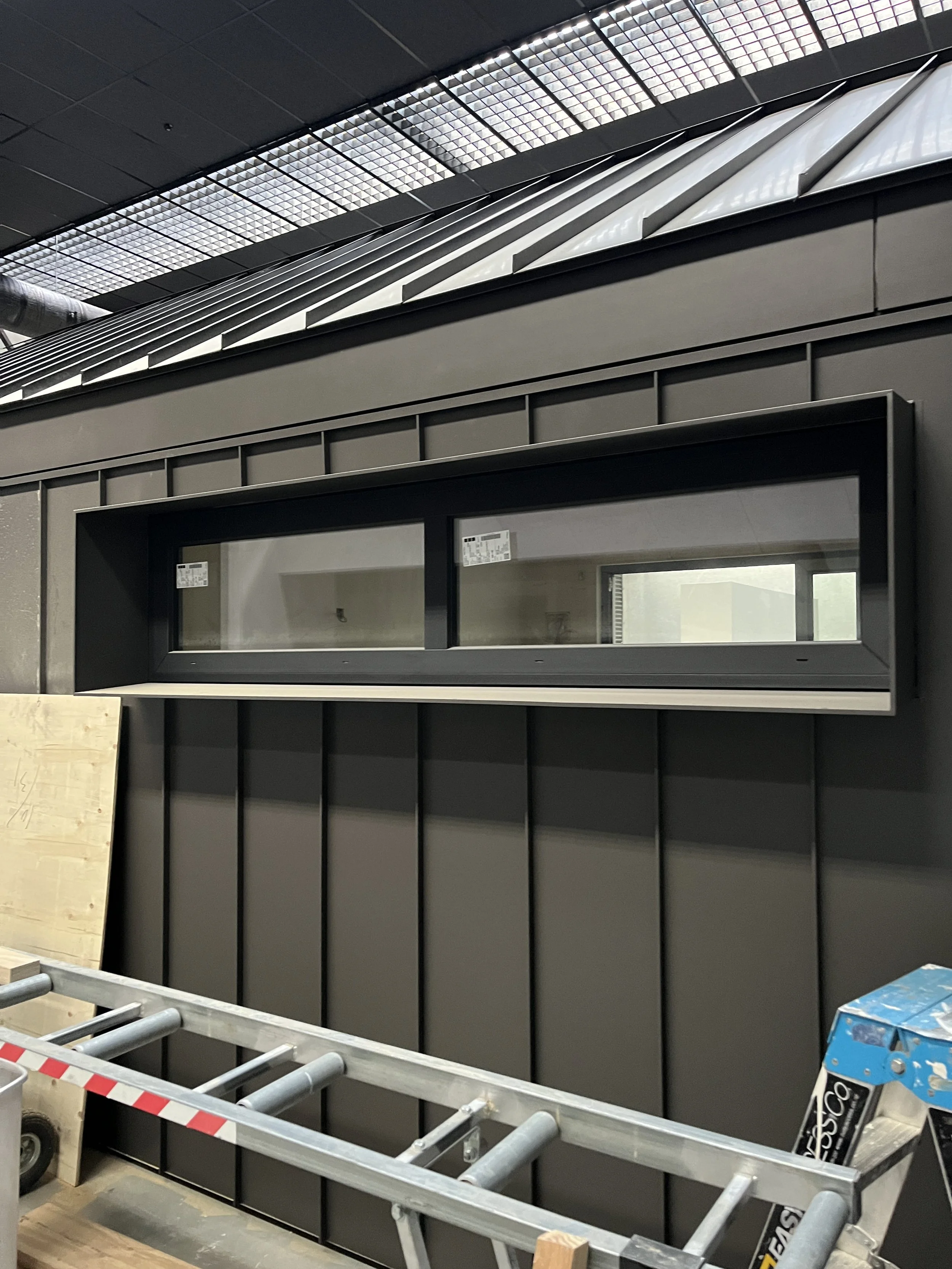

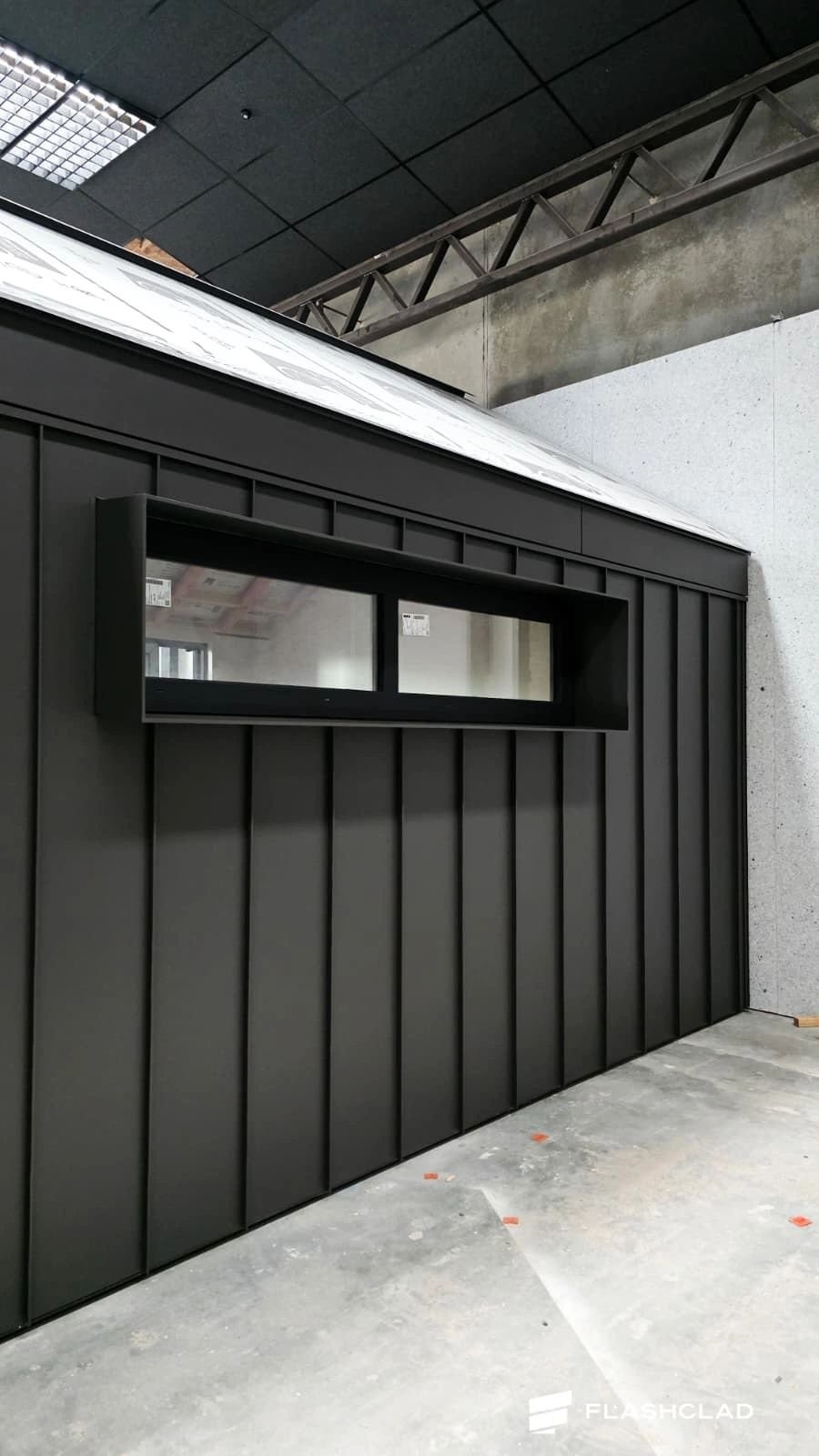

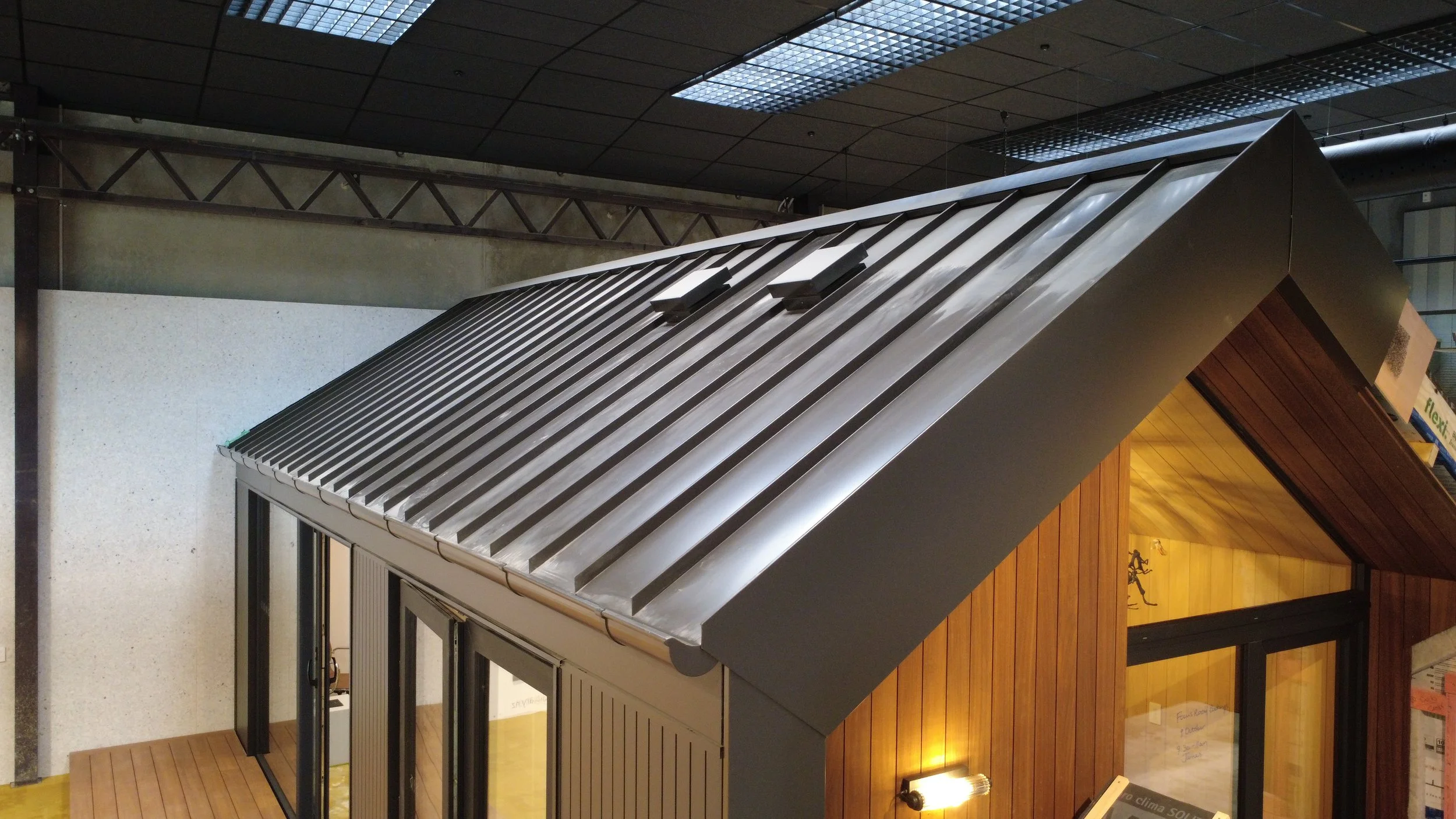

Flashclad Eurorib Standing Seam, Dualboard VSeries V70, Aluminium Fascia and Shoud.
-
Flashclad is a Premium Aluminium Cladding System that creates beautiful sharp architectural lines.

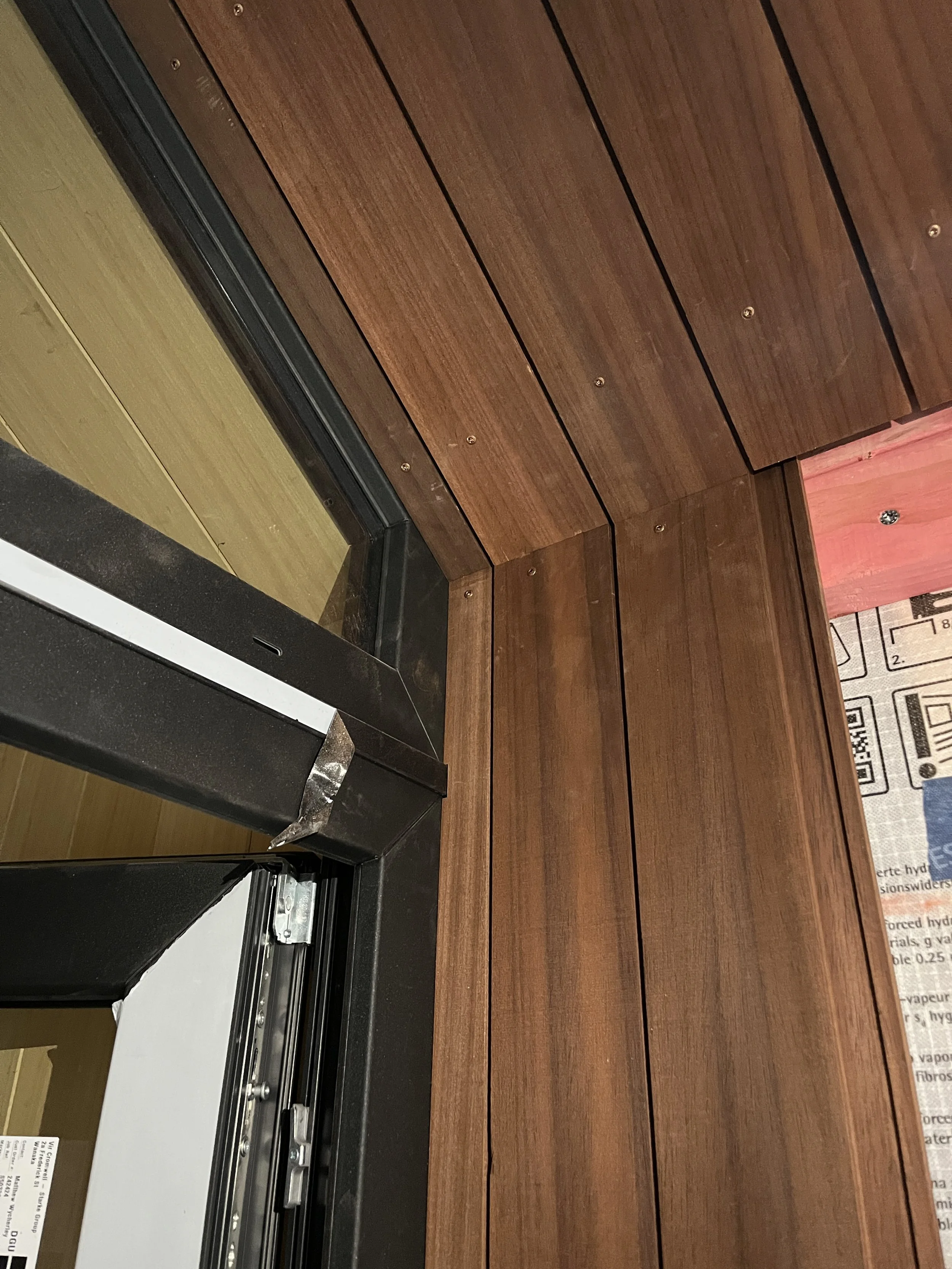

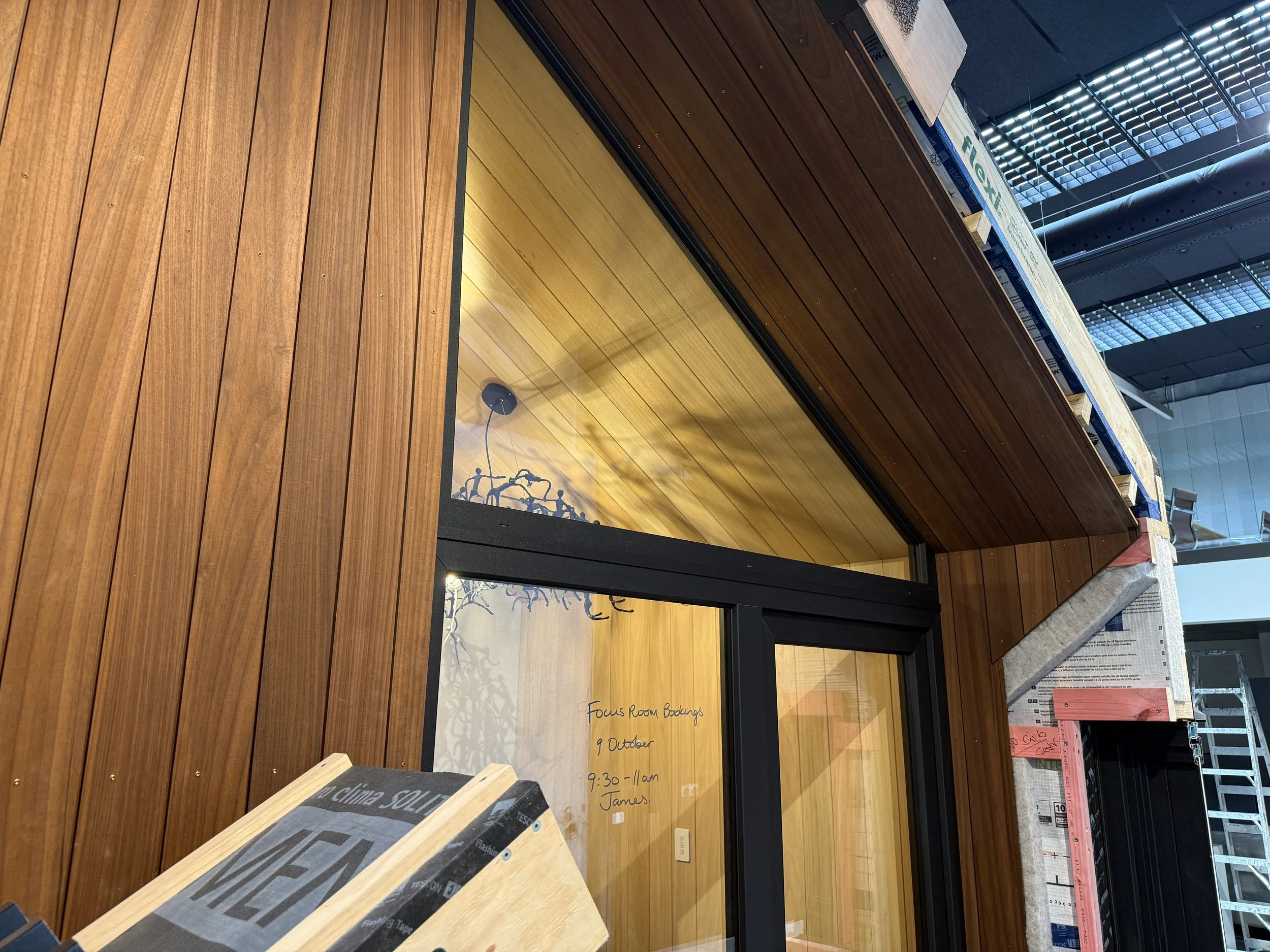

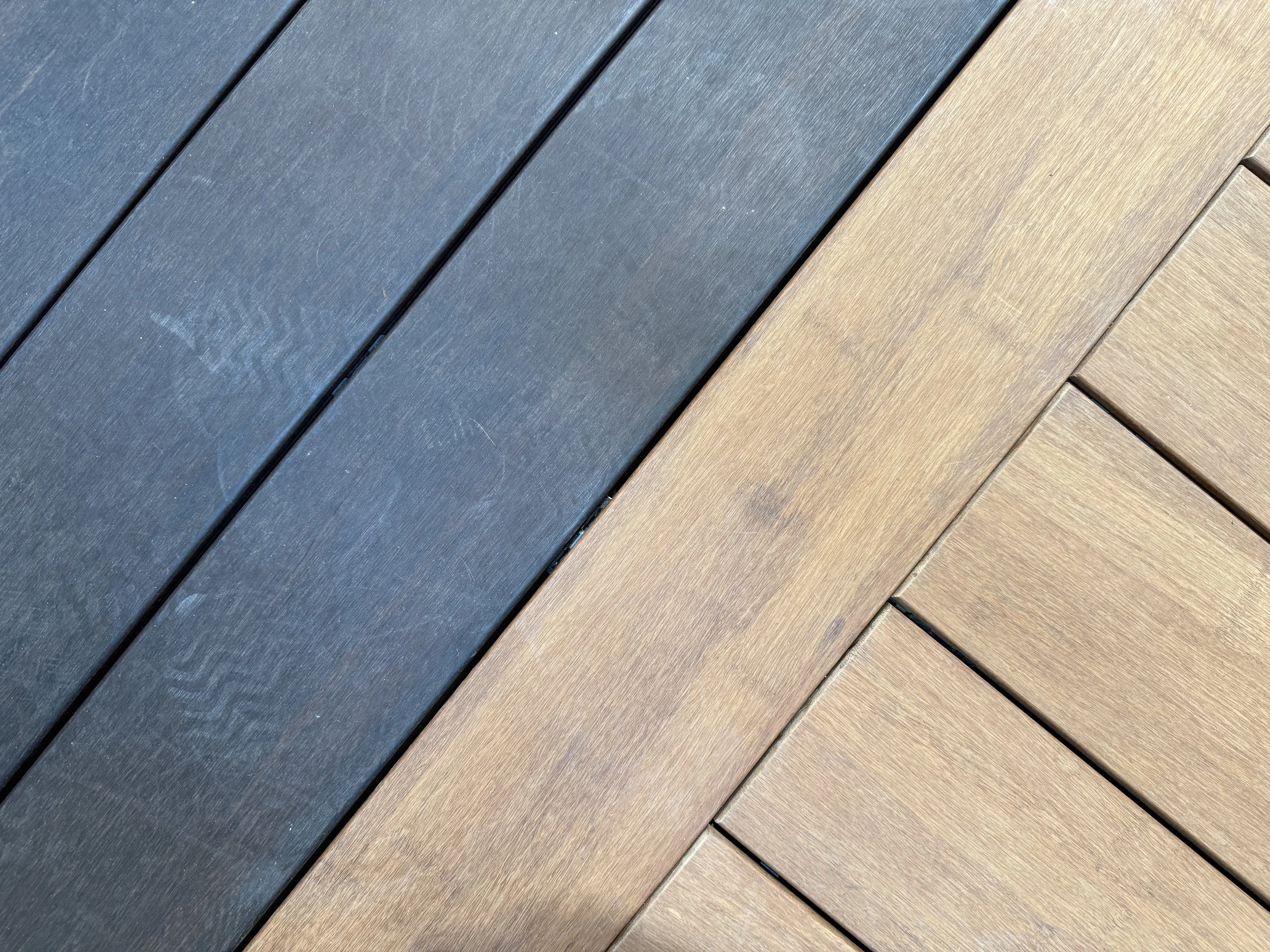

Timber Cladding
Premium, sustainable timber solutions for cladding, decking, and interiors.
-

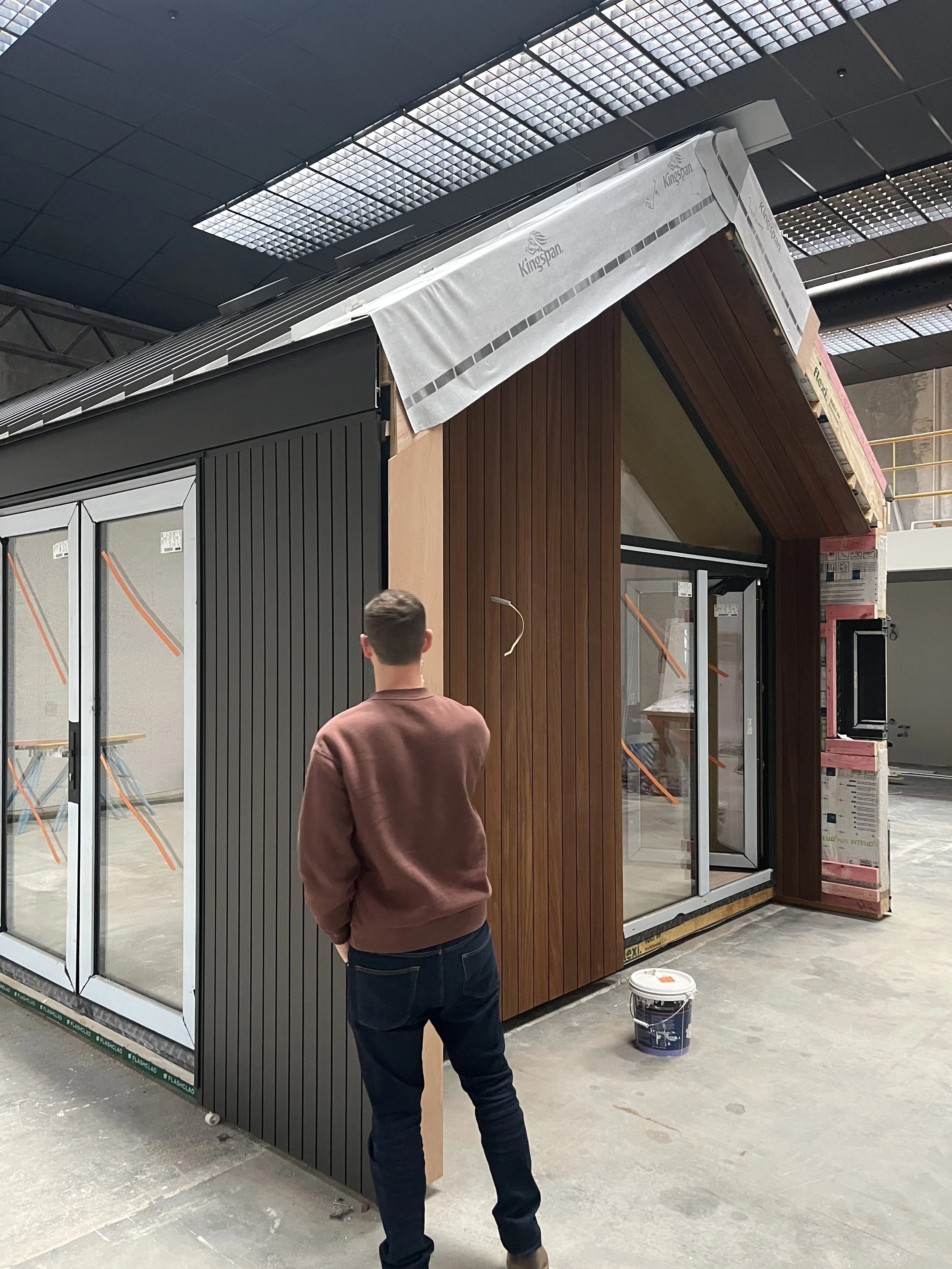

JSC - Lunawood TMT Amba TMT55 Vertical Shiplap.
-
Thermally Moddified - for enhanced durability and stability
Low susceptibility to fungal decay and moisture retention
Ability to accept darker coatings and stains
Easily workable and easy to maintain
Non-toxic and chemical-free, with a low environmental impact
Sheet Roofing
-
Freeman Roofing - Alpine Tray
-
Custom profile match to match wall cladding profiles.

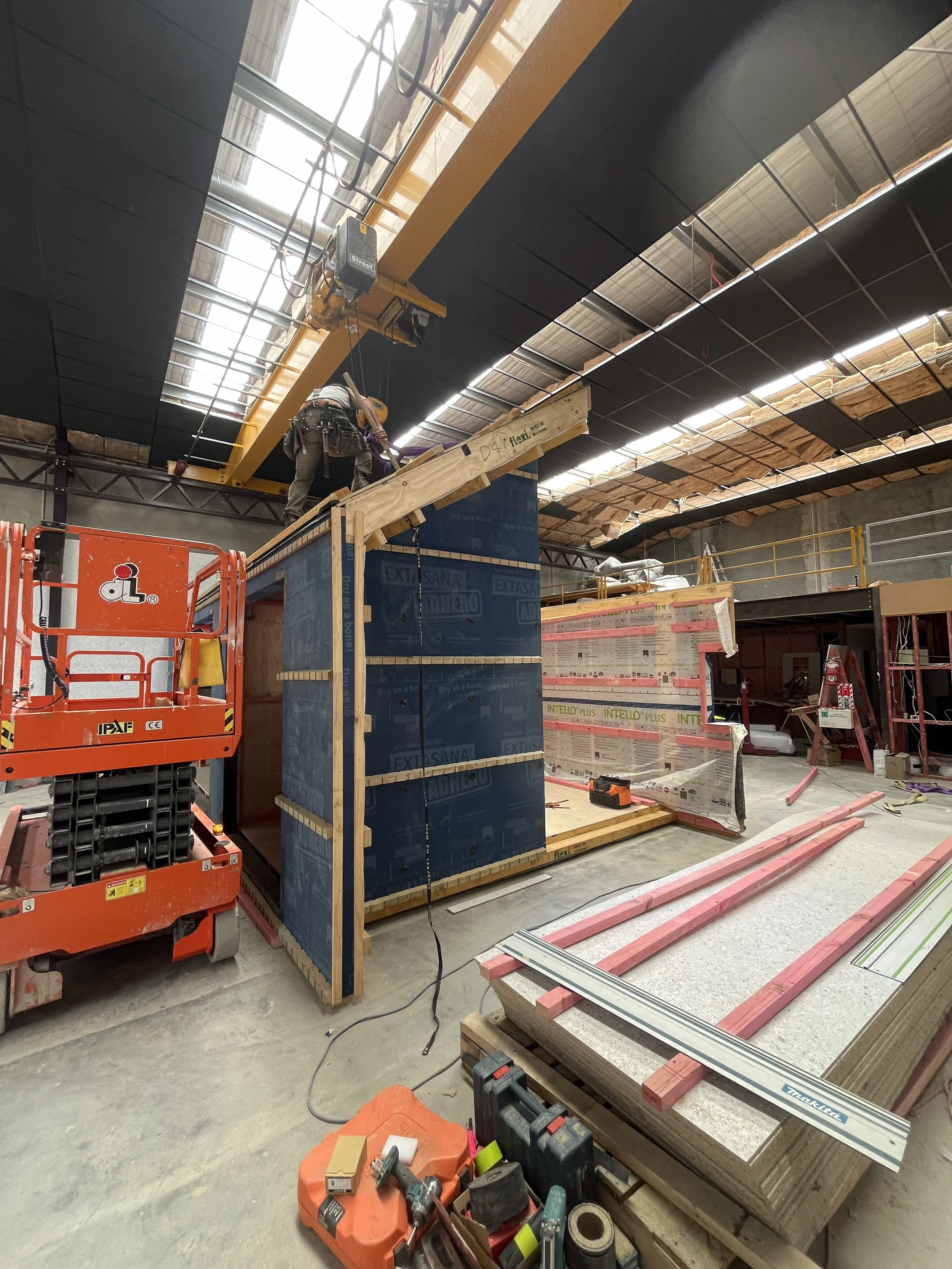

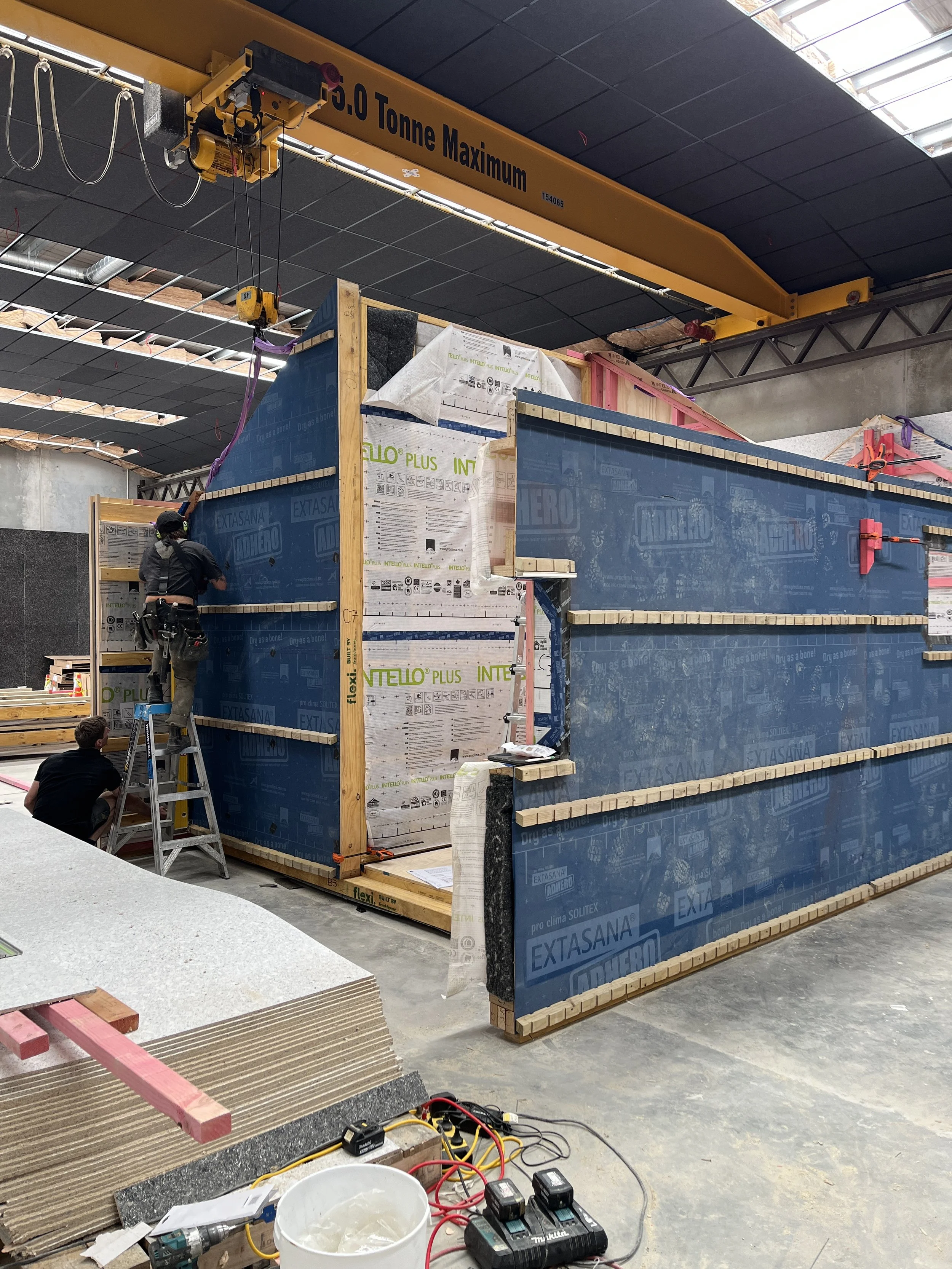

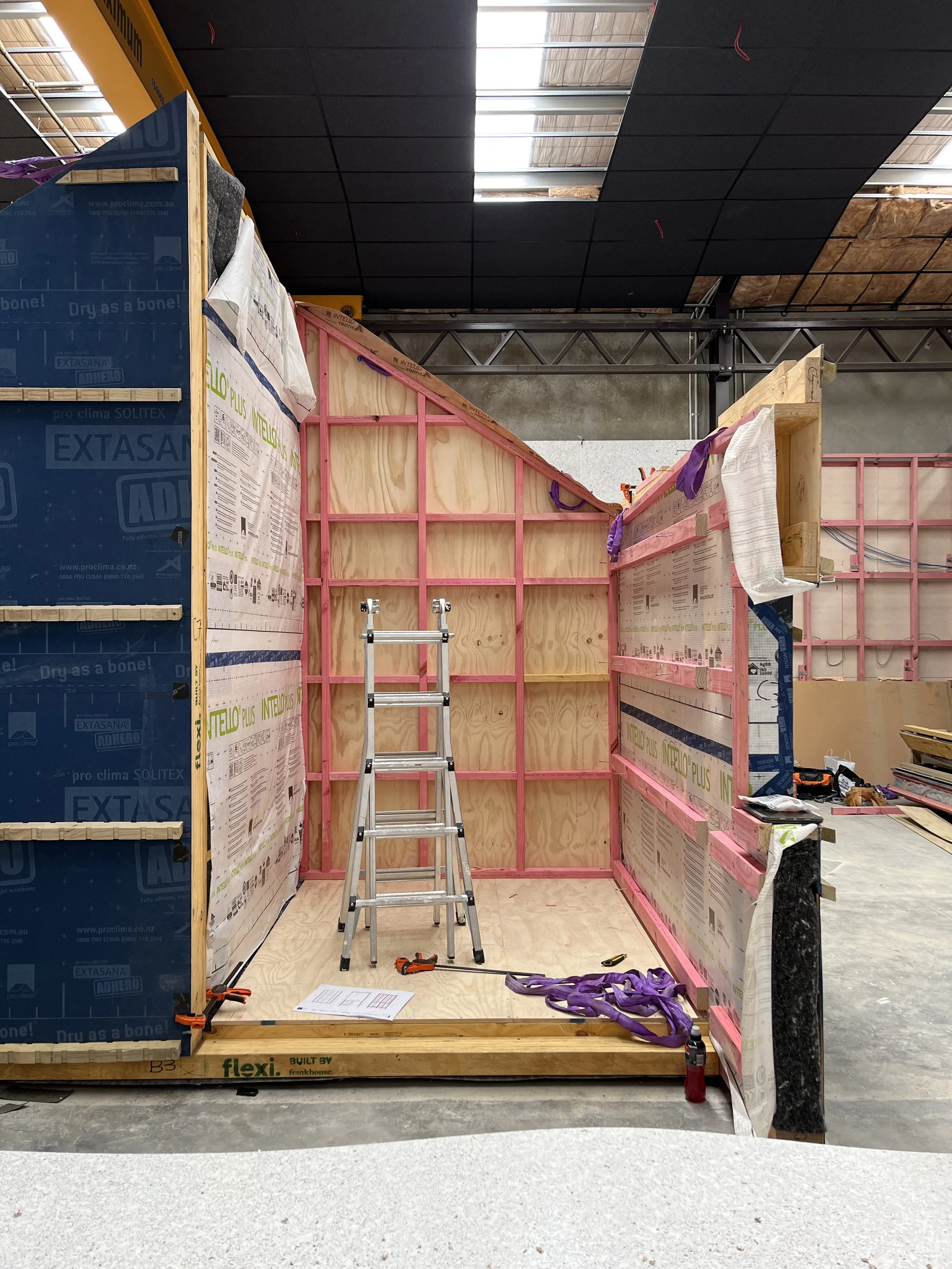

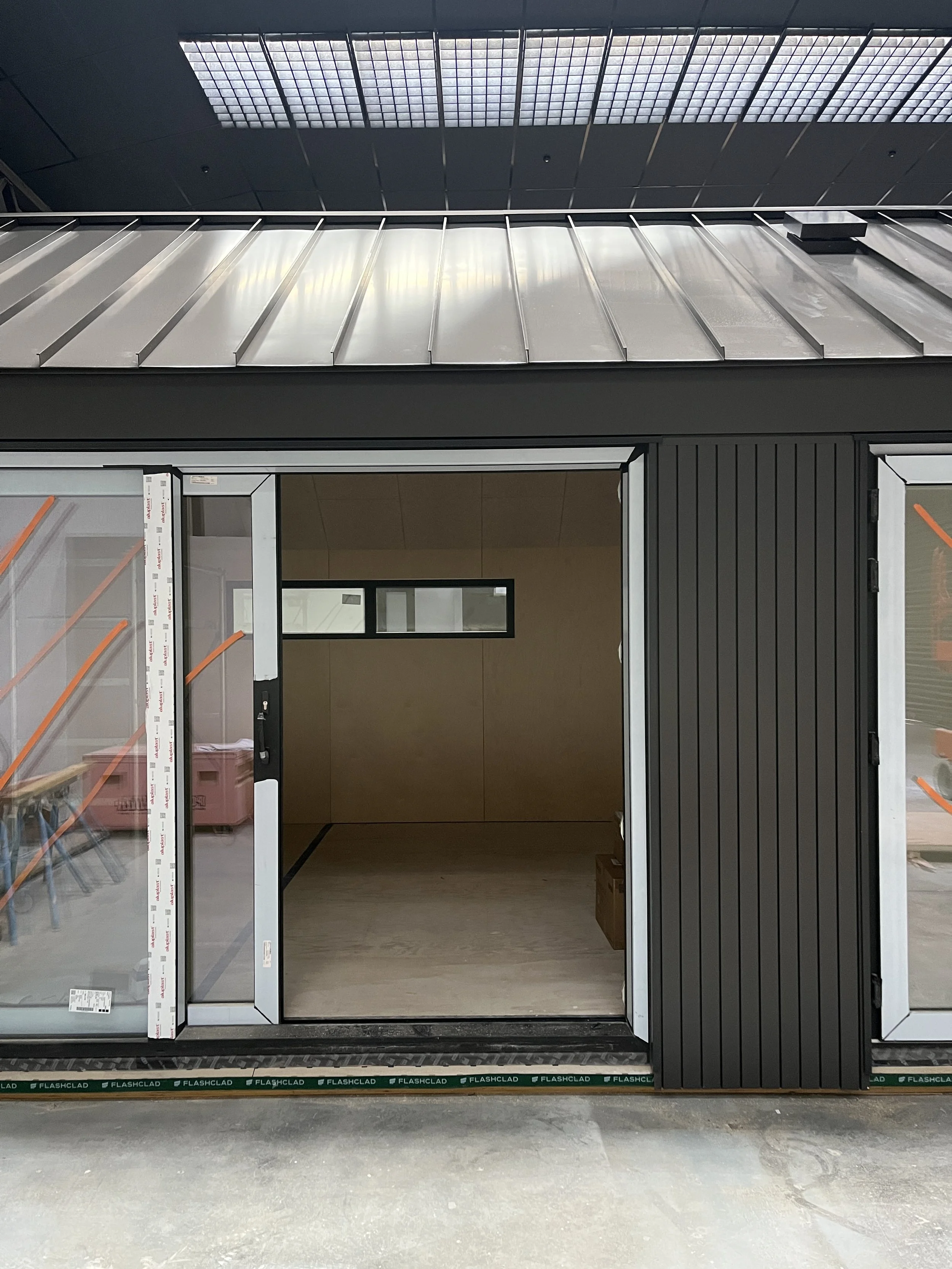

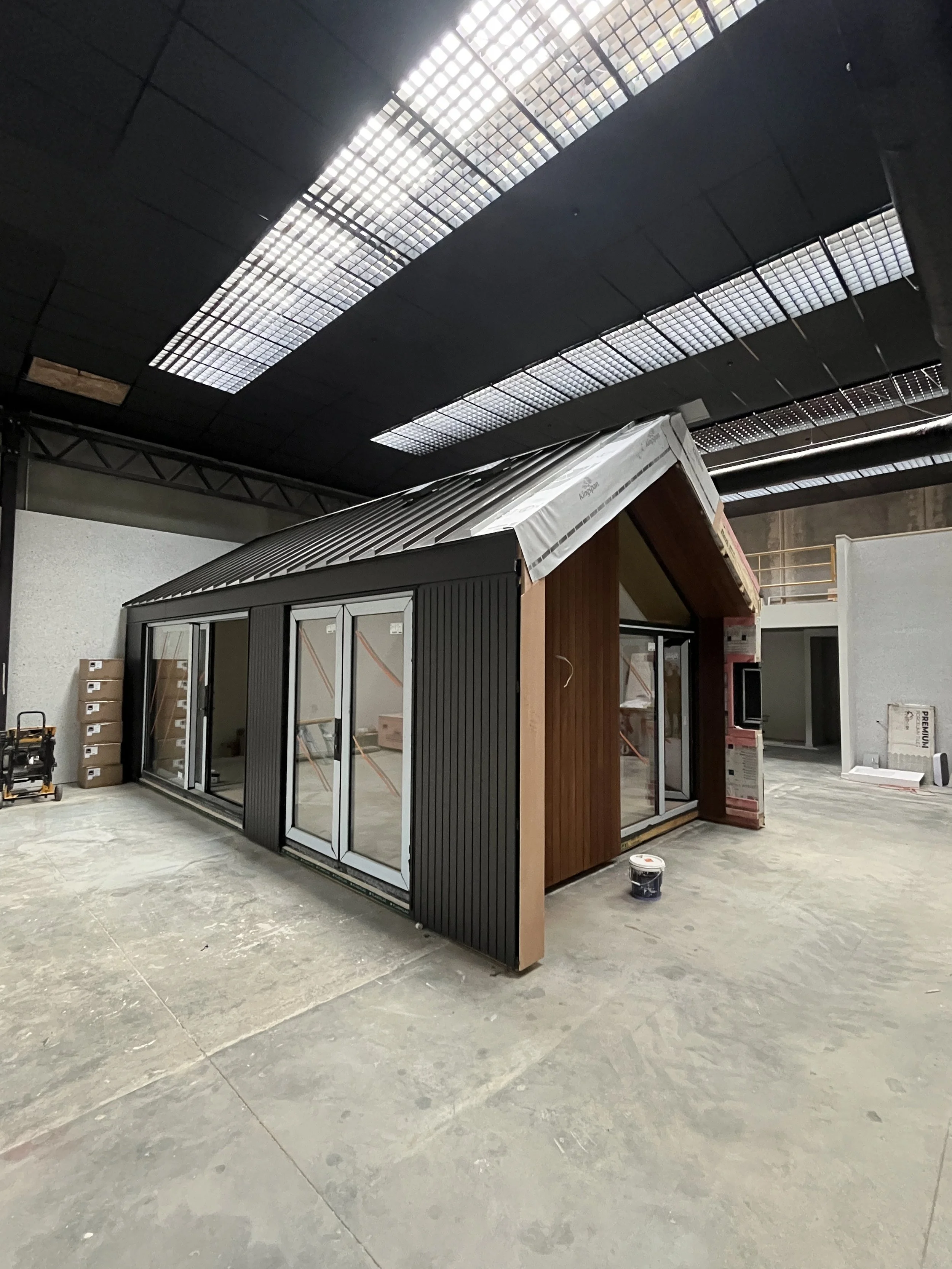

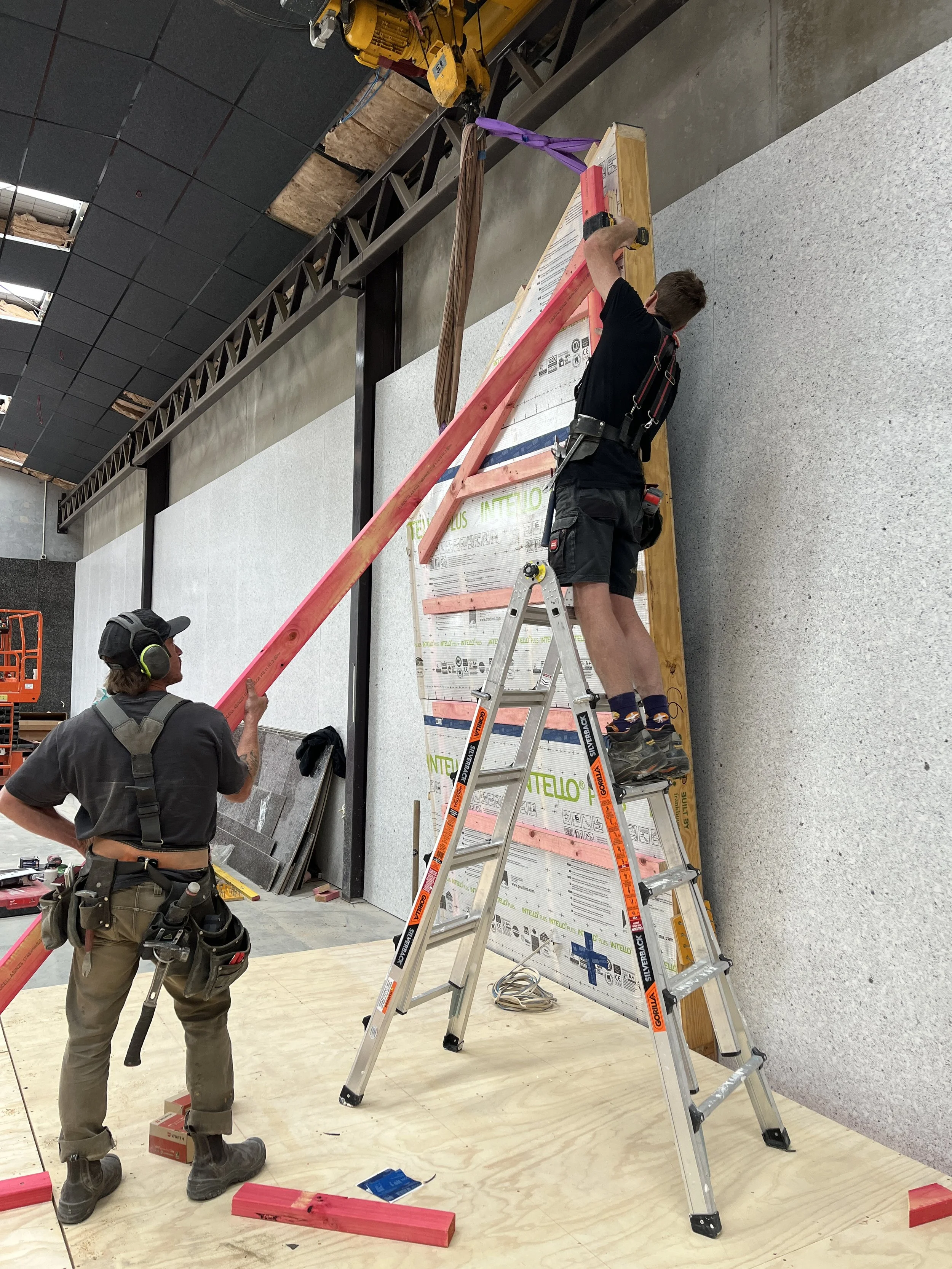

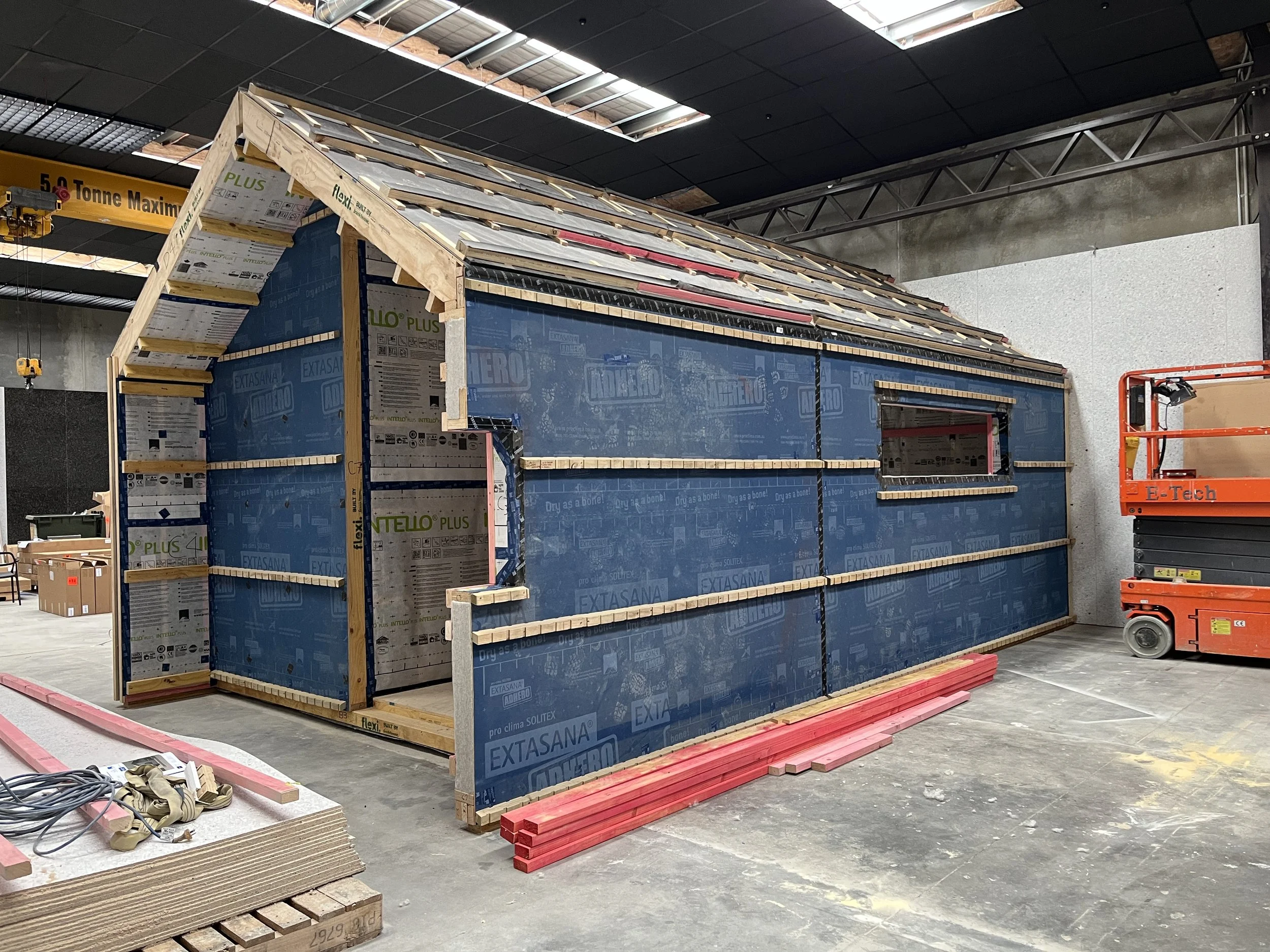

Gallery

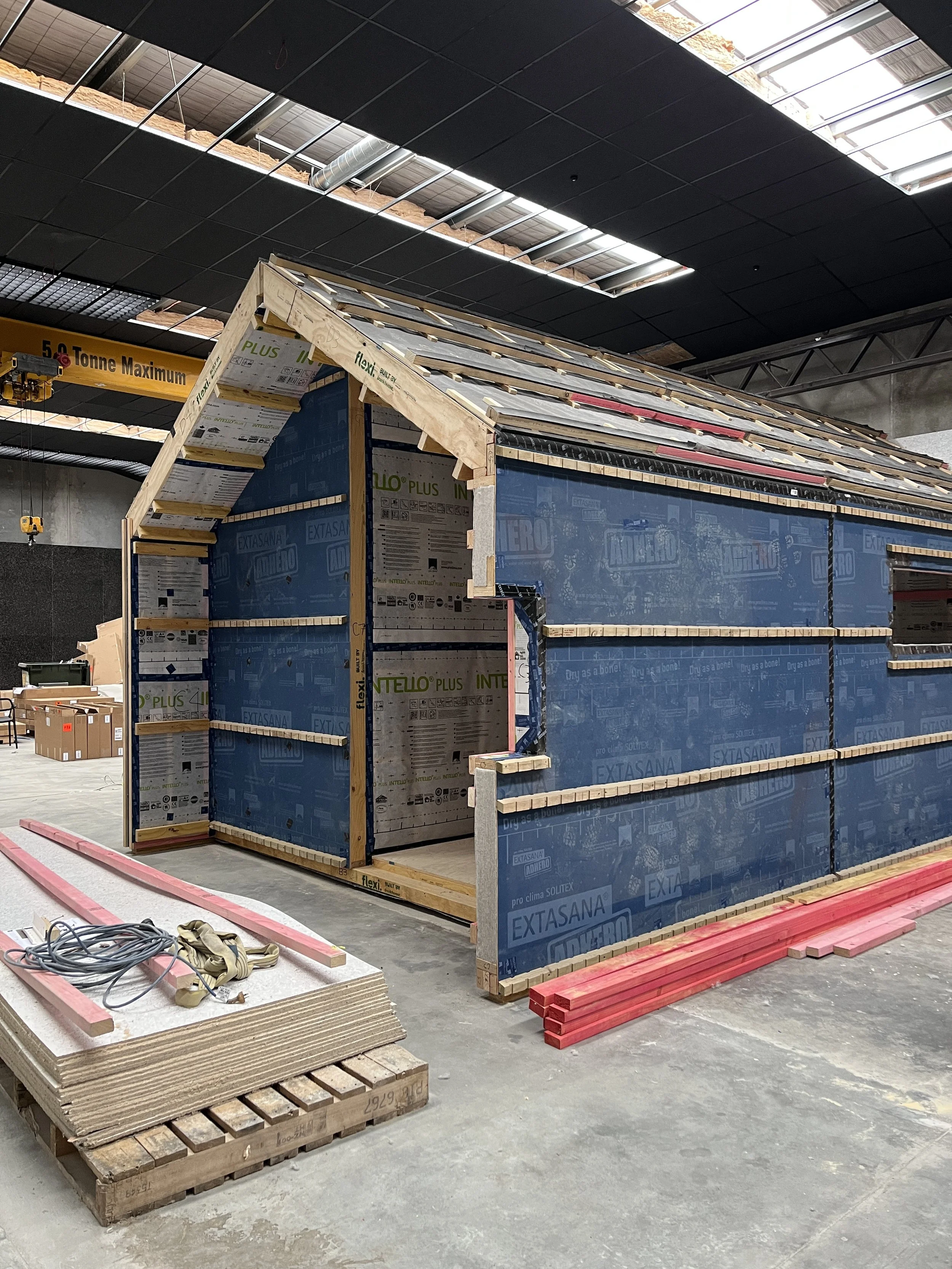

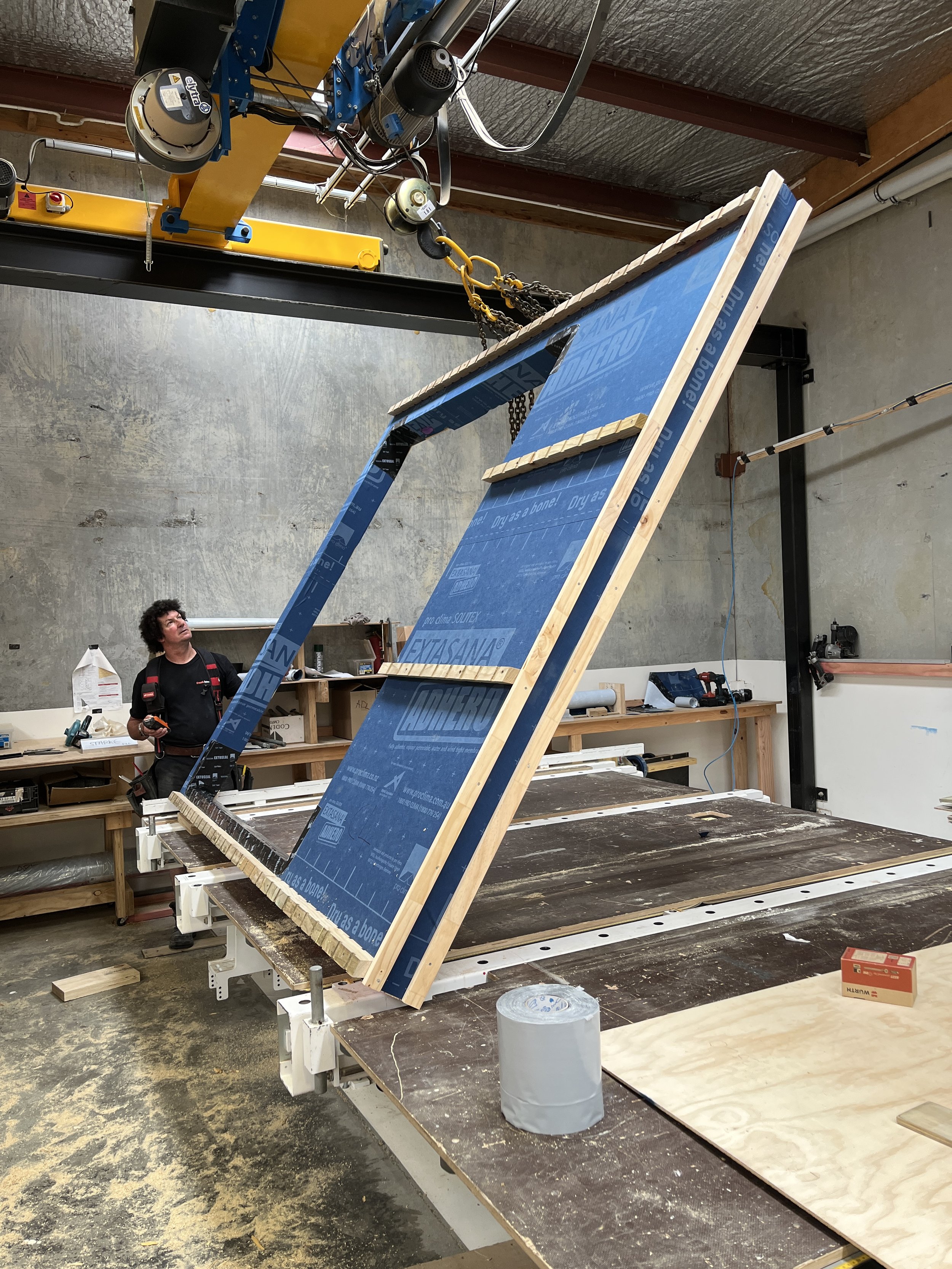

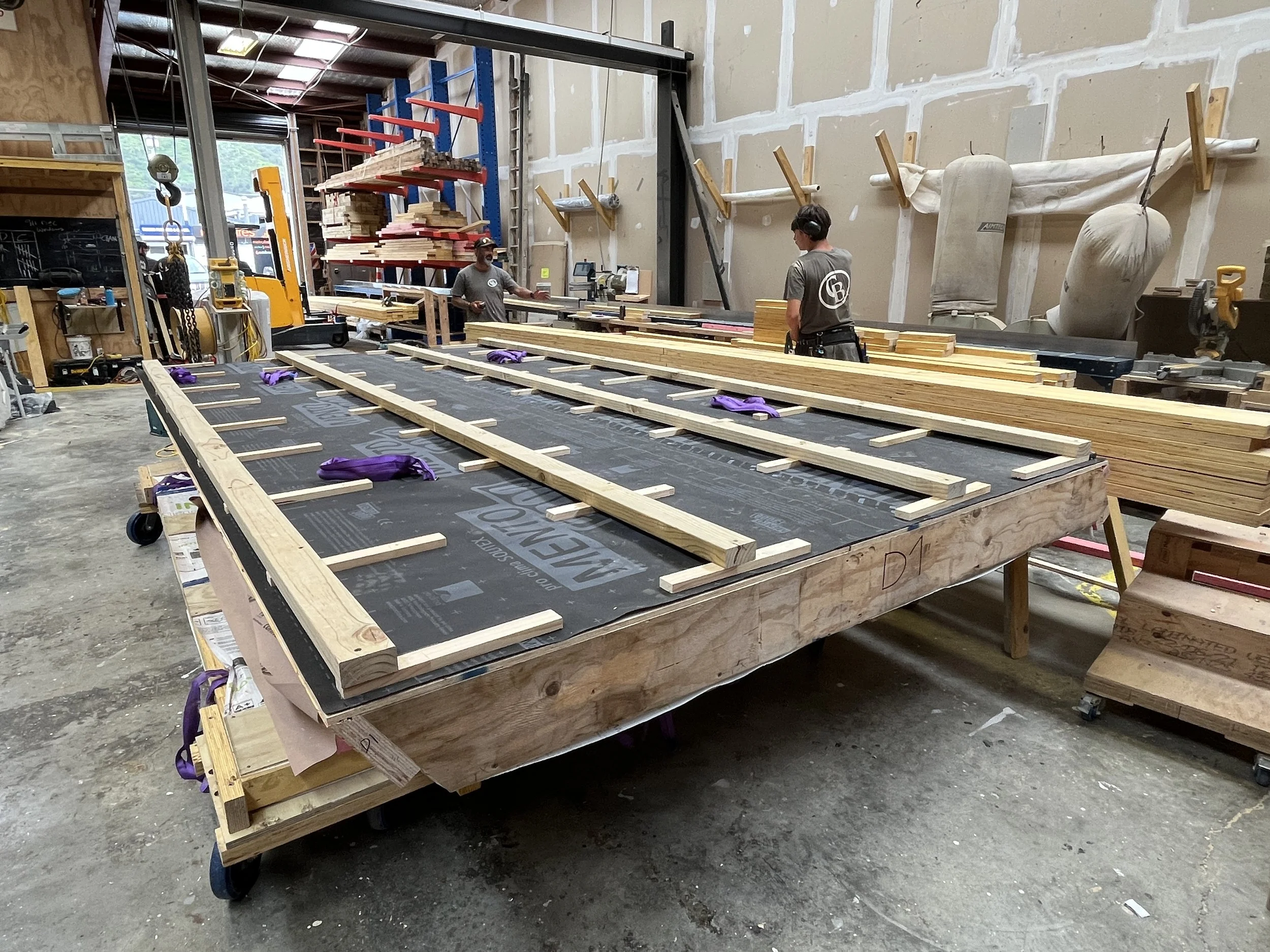

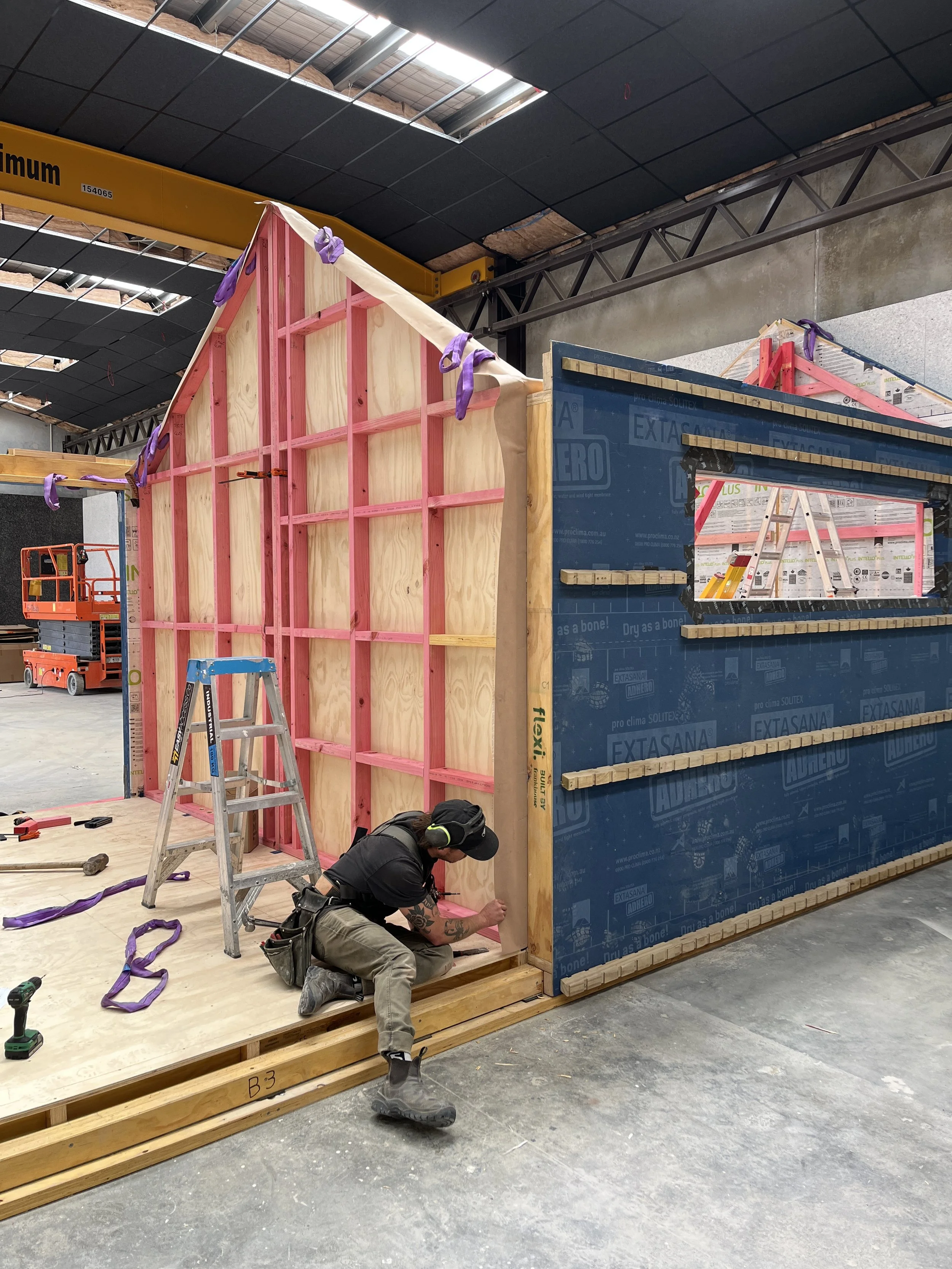

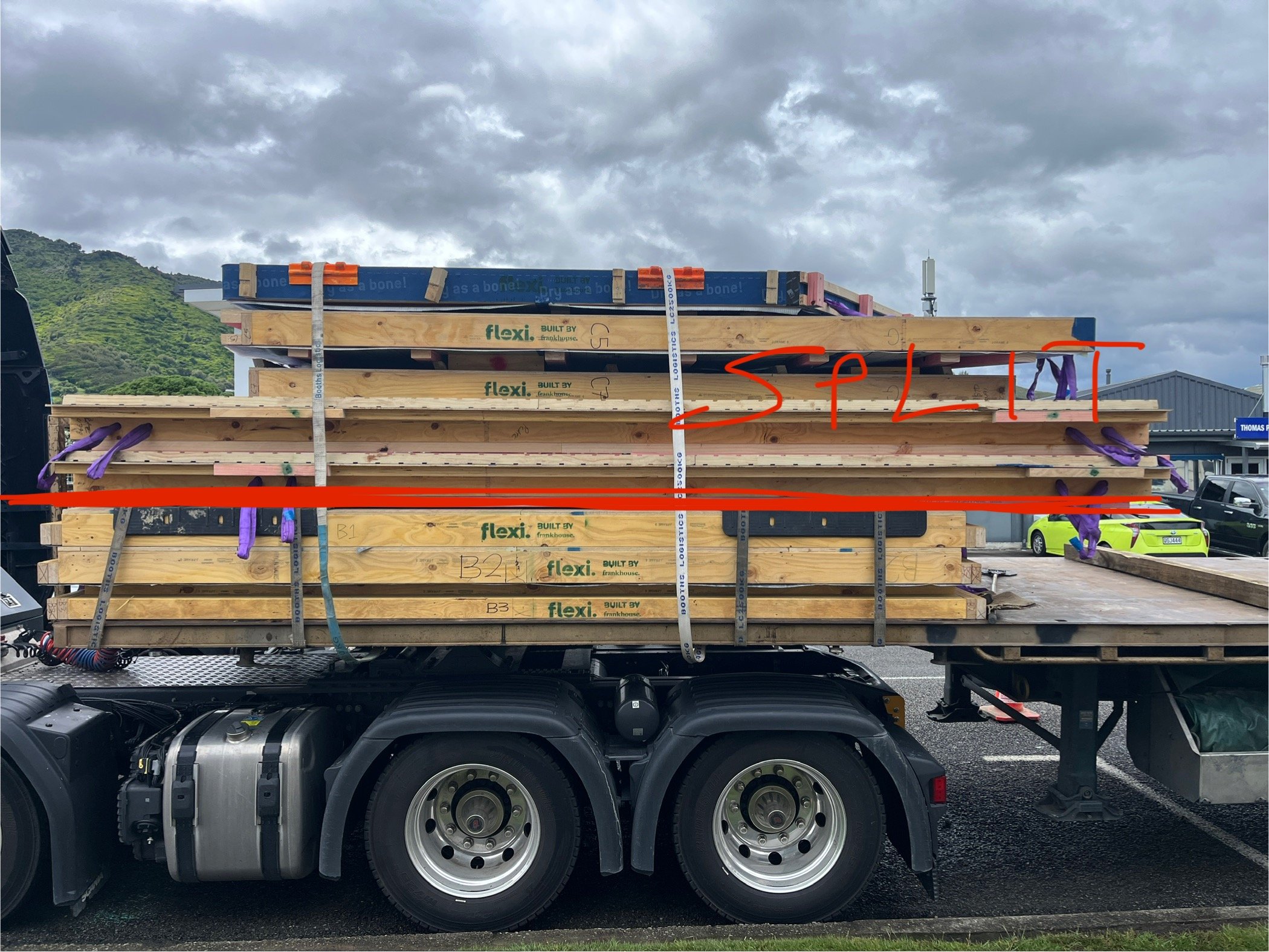

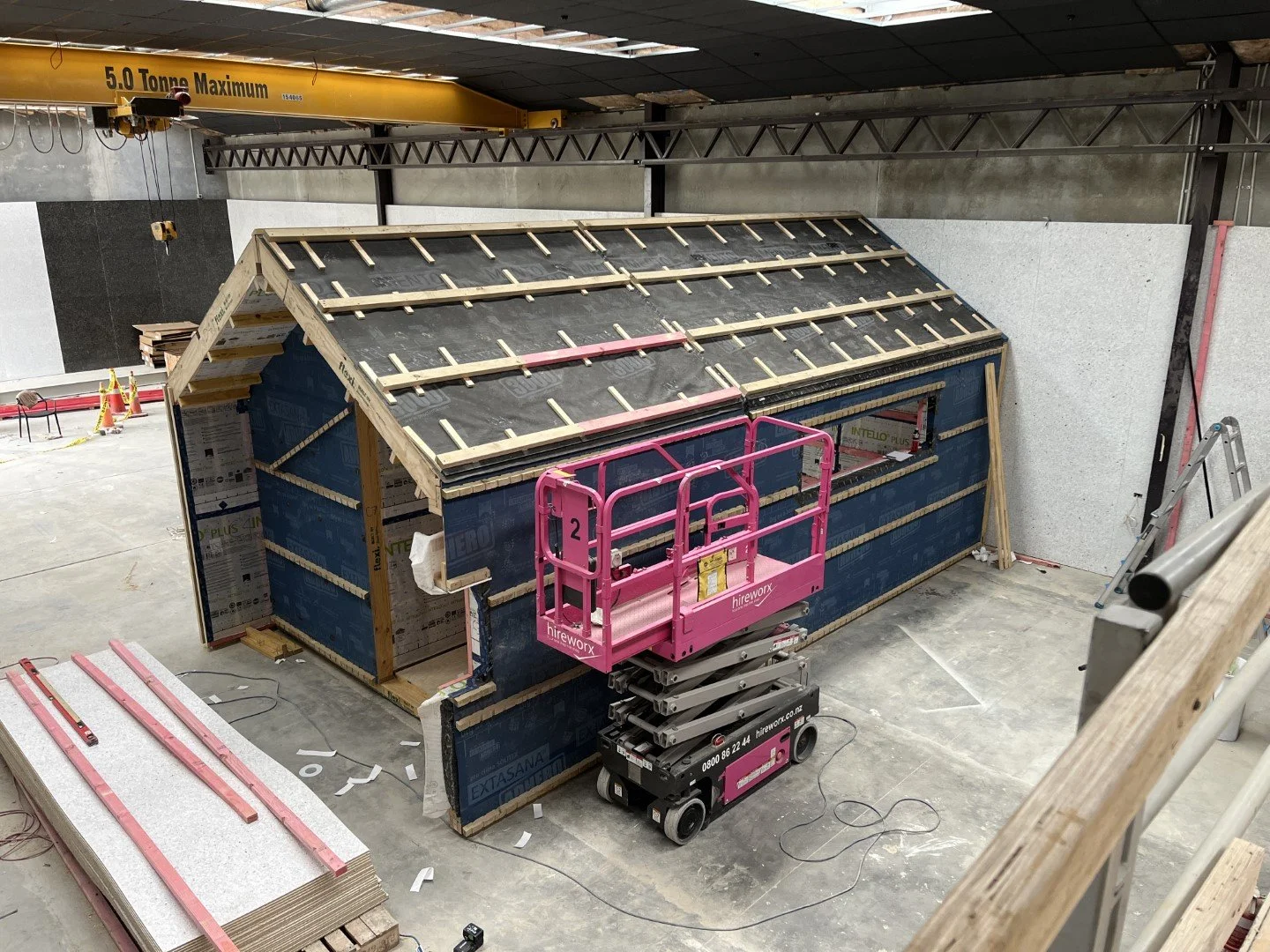

A journey from start to finish and all the steps in between.
